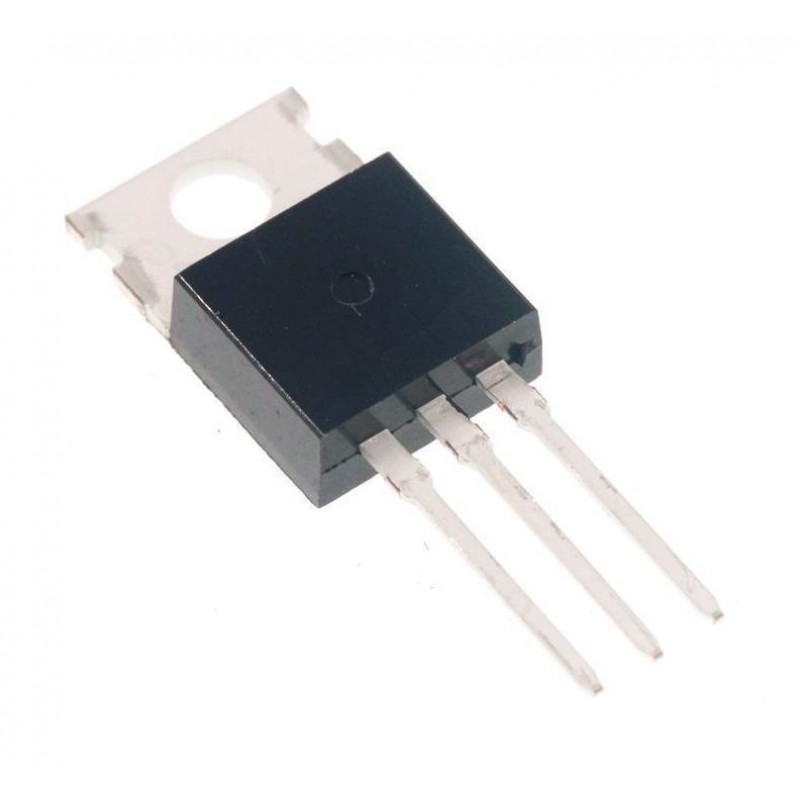

  • IGP15N60T IGBT - 600V 15A Low Loss IGBT

The IGP15N60T is a low loss IGBT : IGBT in TRENCH STOP™ and Field stop technology. It is designed for frequency converters and Uninterrupted Power Supply.

The TRENCH STOP™ and Field stop technology for 600V applications offers :

   - very tight parameter distribution

  - high ruggedness, temperature stable behavior

  - very high switching speed

Features:-

•  Very low VCE (sat) 1.5V (typ.)

  Maximum Junction Temperature 175°C

  Short circuit withstand time 5µs

  Positive temperature coefficient in VCE(sat)

  Low EMI

  Pb-free lead plating; RoHS compliant

  Qualified according to JEDEC1 for target applications

Specification:-

Symbol Parameter Ratings Units
VCE Collector-emitter voltage, Tj ≥ 25°C 600 V
IC DC collector current, limited by Tjmax
A
TC = 25°C, value limited by bond wire  26
TC = 100°C 23
ICpuls Pulsed collector current, tp limited by Tjmax 45

Turn off safe operating area, VCE = 600V, Tj = 175°C, tp = 1µs 45
VGE Gate-emitter voltage ±20 V
tsc Short circuit withstand time V 5 µs
GE = 15V, VCC ≤ 400V, Tj ≤150°C
Ptot Power dissipation TC = 25°C 130 W
Tj Operating junction temperature -40...+175 °C
Tstg Storage temperature -55...+150

Soldering temperature waves oldering, 1.6 mm (0.063 in.) from case for 10s 260
