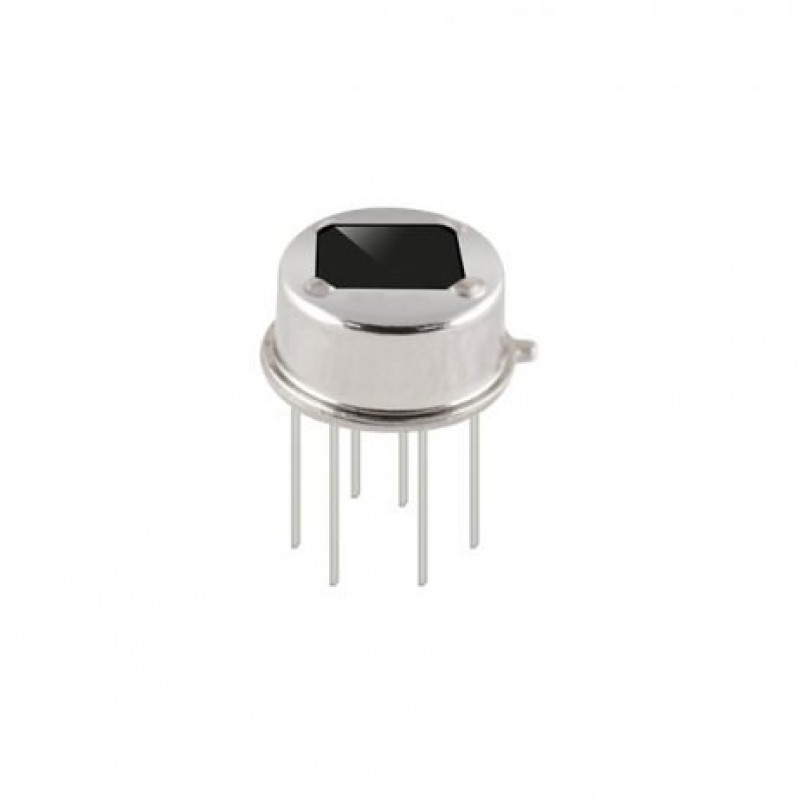

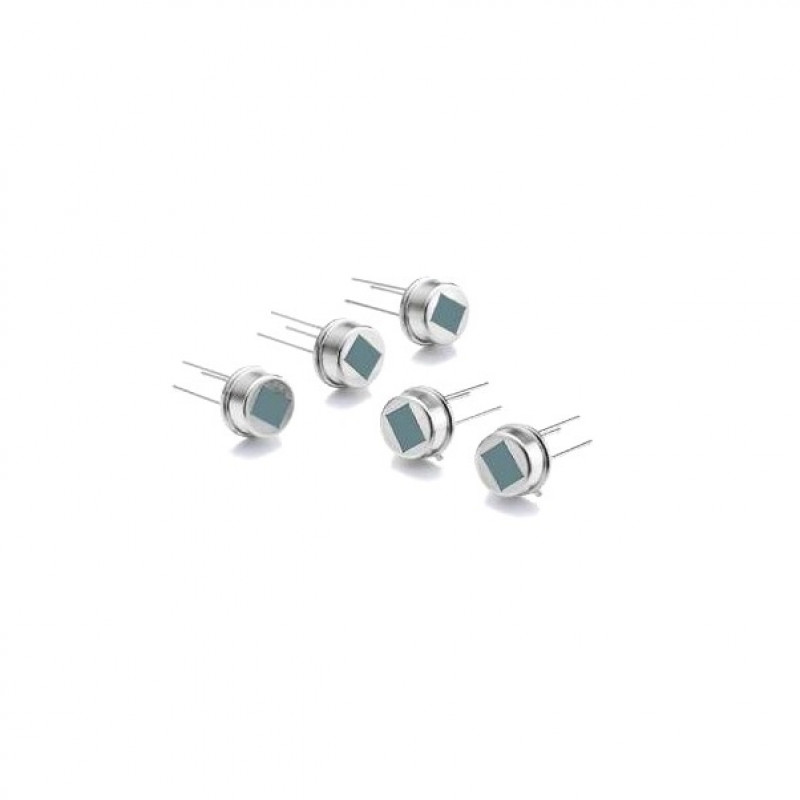

BM612 Digital PIR sensor is the newest smart digital motion detector. This Smart digital detector offers a complete motion detector solution, with all electronic circuitry built into the detector housing. Only a power supply and power-switching components need to be added to make the entire motion switch, a timer is included. The series has versions that can include ambient light level and sensitivity adjustments.

Applications:

  1. Toys
  2. Digital photo frame
  3. TV, Refrigerator, Air-conditioner
  4. USB Alarms
  5. PIR motion detection
  6. Intruder detection
  7. Occupancy detection
  8. Motion sensor lights
  9. Computer monitor
  10. Security system
  11. Automatic control
  12. Corridor
  13. Stairs Lights etc.

Features:

  1. Digital signal processingDSP
  2. Power adjustable, save more energy
  3. Two-way differential high impedance sensor input
  4. Built-in filter, screen the interference by other frequency
  5. Excellent power supply rejection, Insensitive to RF interference
  6. Schmidt REL output
  7. Low voltage, low power consumption, instantaneous settling after
    power up

Note: Find Datasheet for all technical and dimensional Details in attachments


Package Includes:

1 x BM612 Digital PIR sensor



Specifications :-

Operating Voltage (VDC)

3.3

Max. Operating Current (mA)

0.0095

Sensitivity Threshold Value

2000 V

Output Low Current Lock Time

2 Sec

Output High Current Lock Time

3600 Sec

Low Pass Filter Cut-Off Frequency

7 Hz

High Pass Filter Cut-Off Frequency

0.44 Hz

Oscillator Frequency on Chip

64 KHz

Shipment Weight

0.01 kg

Shipment Dimensions

5 3 1 cm


Attachments :


Download
Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 0 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

BM612 Digital PIR sensor

  • Product Code: EC-7542
  • Availability: 17
  • Rs.142.00
  • (Excluding 18% GST)
