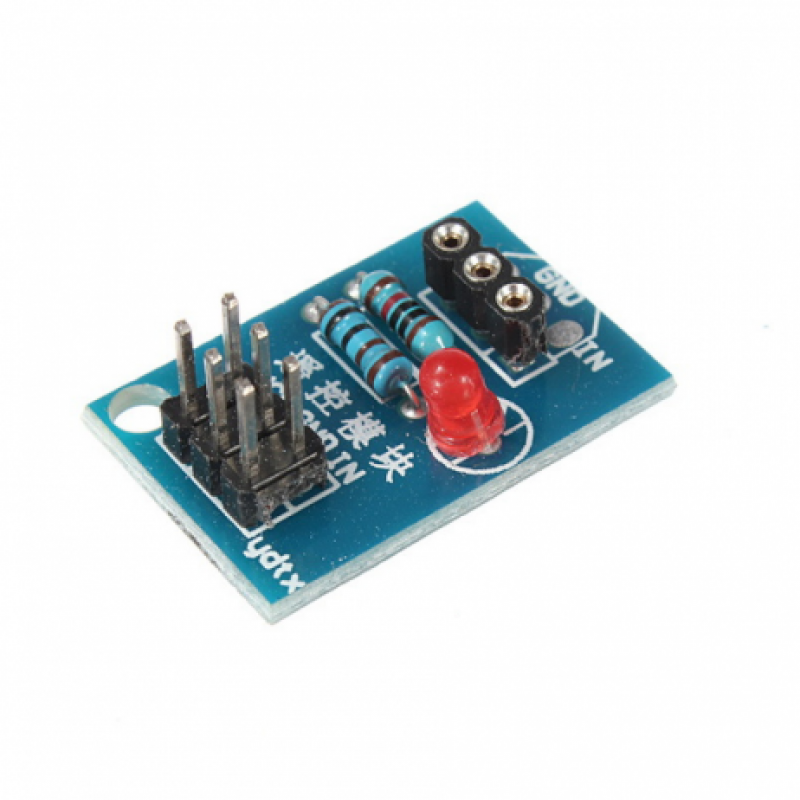

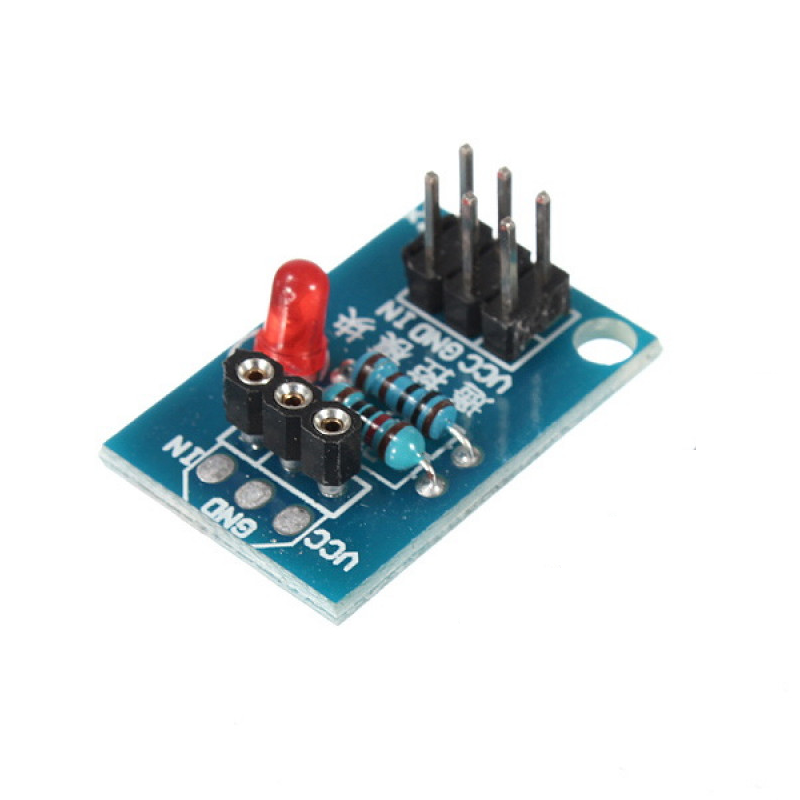

This sensor board contains a female header as well as solder pads for the IR sensor. The board has an onboard LED to denote the signal received by the IR receiver. The board has a male header to connect the power supply as well as to connect the digital pin to sense the output given by the IR sensor, which acts as the output of the sensor.
Features:
- 3 pin Female Header for the IR sensor.
- LED for the detection of the received signal.
- Onboard Pullup resistors for safety.
- Compatible with any IR receiver.
- Can be used with Arduino as well as Raspberry Pi.
Package Includes:
1 x IR Remote Control Module
Specifications :-
| Operating Voltage (VDC) | 3.3 ~ 5 |
| Length (mm) | 25 |
| Width (mm) | 15 |
| Height (mm) | 5 |
| Weight (gm) | 2 |
| Shipment Weight | 0.005 kg |
| Shipment Dimensions | 5 5 3 cm |
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 51.92 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
IR Remote Control Module
- Product Code: EC-7559
- Availability: 19
-
Rs.25.00
- (Excluding 18% GST)
