IRF9610 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
• Dynamic dV/dt rating
• 100% avalanche rated
• Fast switching
• Ease of paralleling
• Simple Drive Requirements
• P-Channel
• Advanced process technology
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | P-Channel |
| Drain-Source Breakdown Voltage (Vds) | -200V |
| Continuous Drain Current (Id) | -1.8A |
| Drain-Source Resistance (Rds On) | 3Ohms |
| Gate-Source Voltage (Vgs) | 20V |
| Gate Charge (Qg) | 11 nC |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 20W |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 55.46 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

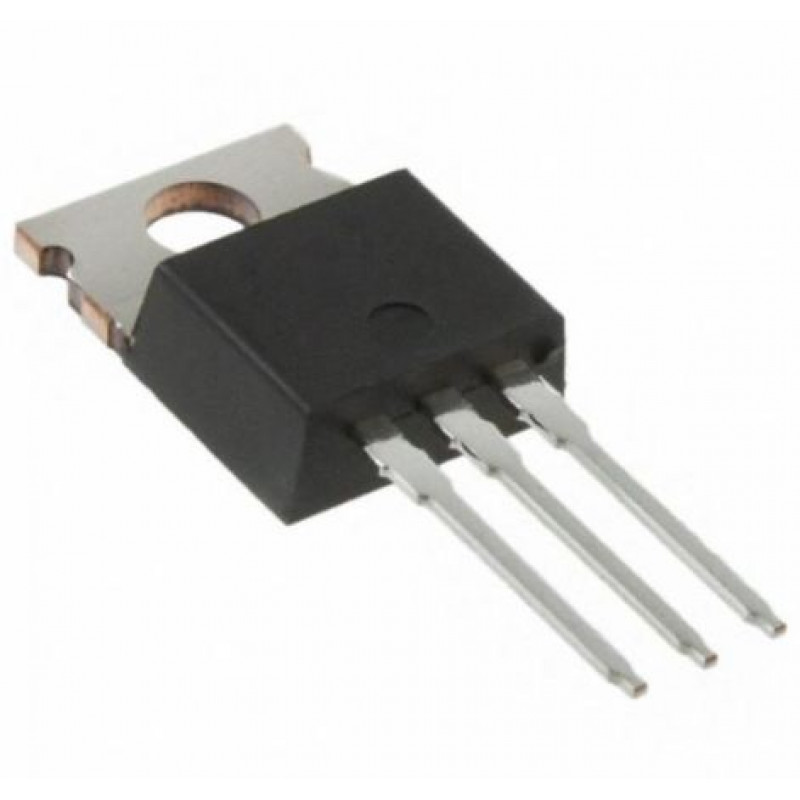

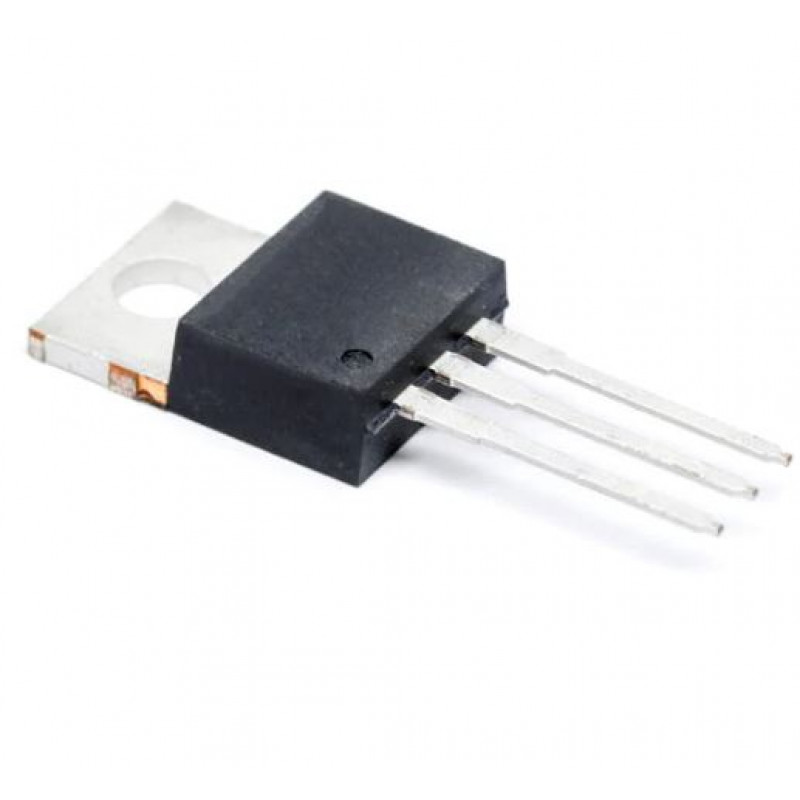

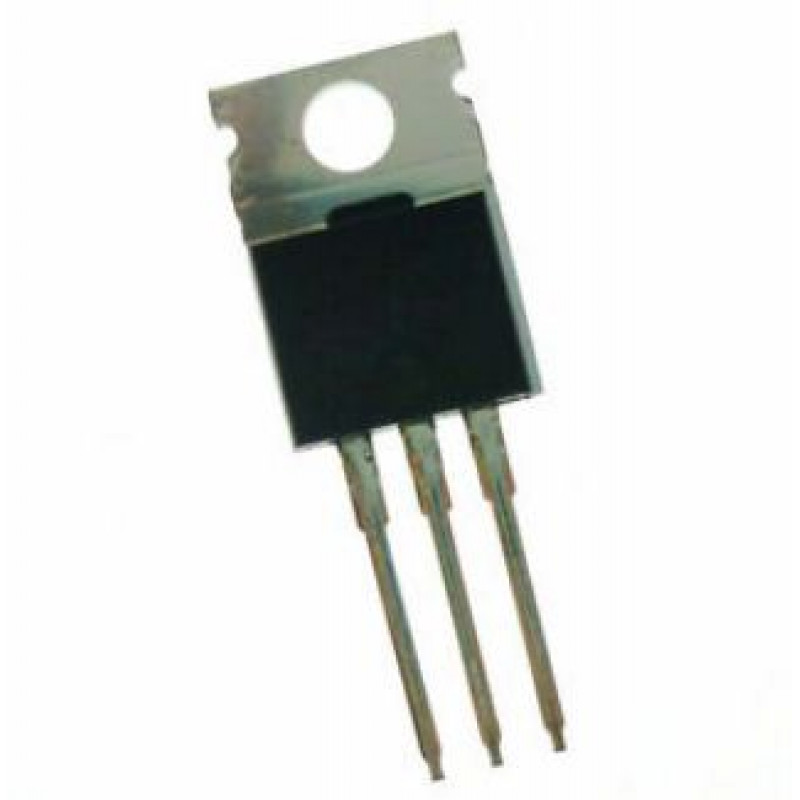

IRF9610 MOSFET - 200V 1.8A P-Channel Hexfet Power MOSFET TO-220 Package
- Product Code: EC-2220
- Availability: 1079
-
Rs.79.00
- (Excluding 18% GST)
