IRF9630 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.


Features:-

• Dynamic dV/dt rating

• 100% avalanche rated

• Fast switching

• Ease of paralleling

• Simple Drive Requirements

• P-Channel

• Advanced process technology


Detailed Specifications:-

Number of Channels 1 Channel
Transistor Polarity P-Channel
Drain-Source Breakdown Voltage (Vds) -200V
Continuous Drain Current (Id) -6.5A
Drain-Source Resistance (Rds On) 0.80Ohms
Gate-Source Voltage (Vgs) 20V
Gate Charge (Qg) 29 nC
Operating Temperature Range -55 - 150°C
Power Dissipation (Pd) 74W


Related Documents

 IRF9630 MOSFET Datasheet


Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 39.53 (Inclusive of all Taxes)
Write a review
Please login or register to review

* Product Images are shown for illustrative purposes only and may differ from actual product.

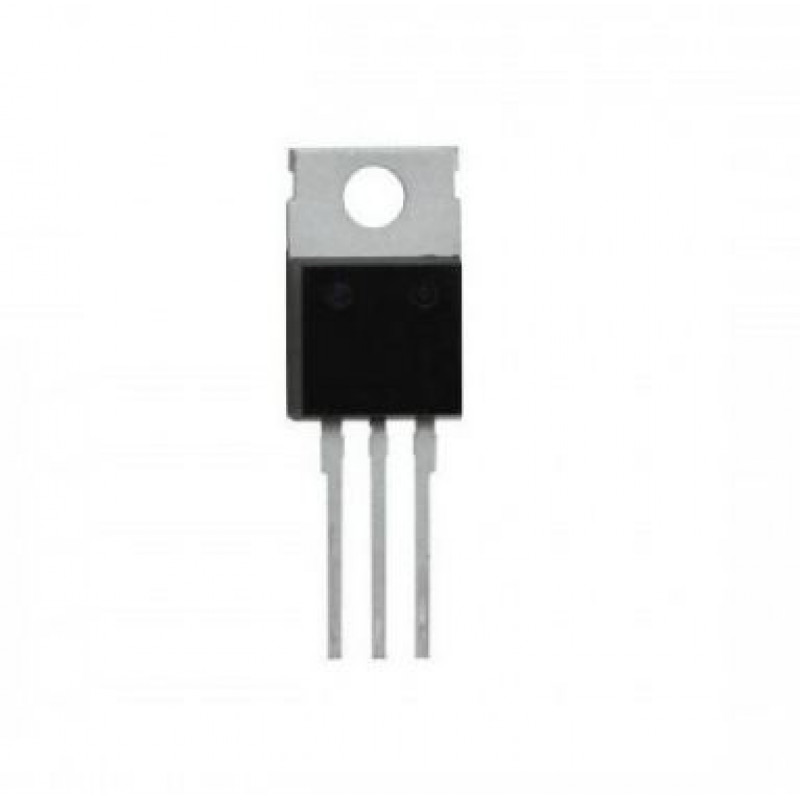

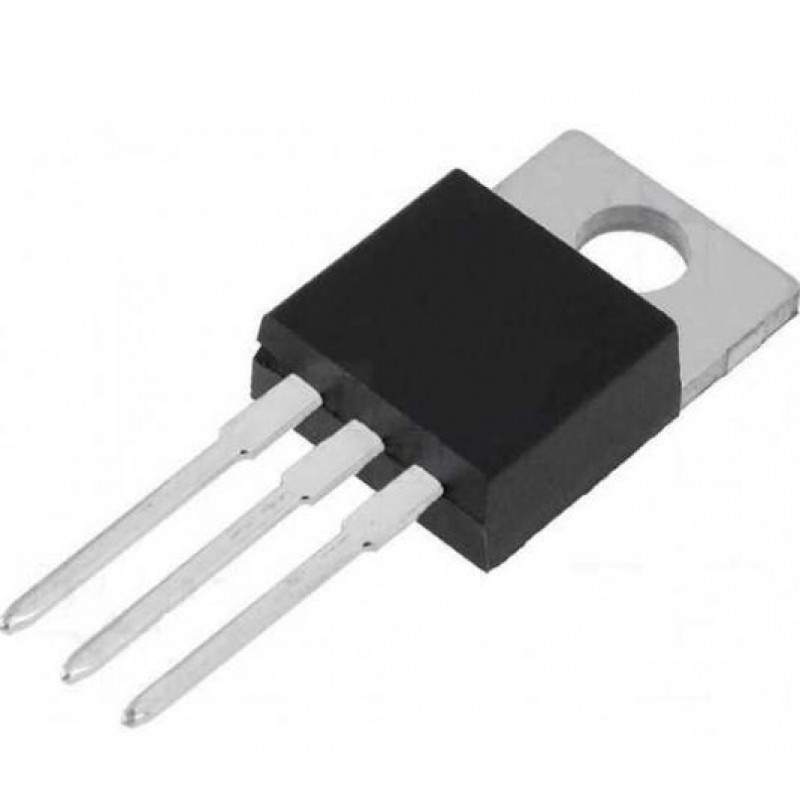

IRF9630 MOSFET- 200V 6.5A P-Channel Power MOSFET TO-220 Package

  • Product Code: EC-1892
  • Availability: 539
  • Rs.33.50
  • (Excluding 18% GST)
