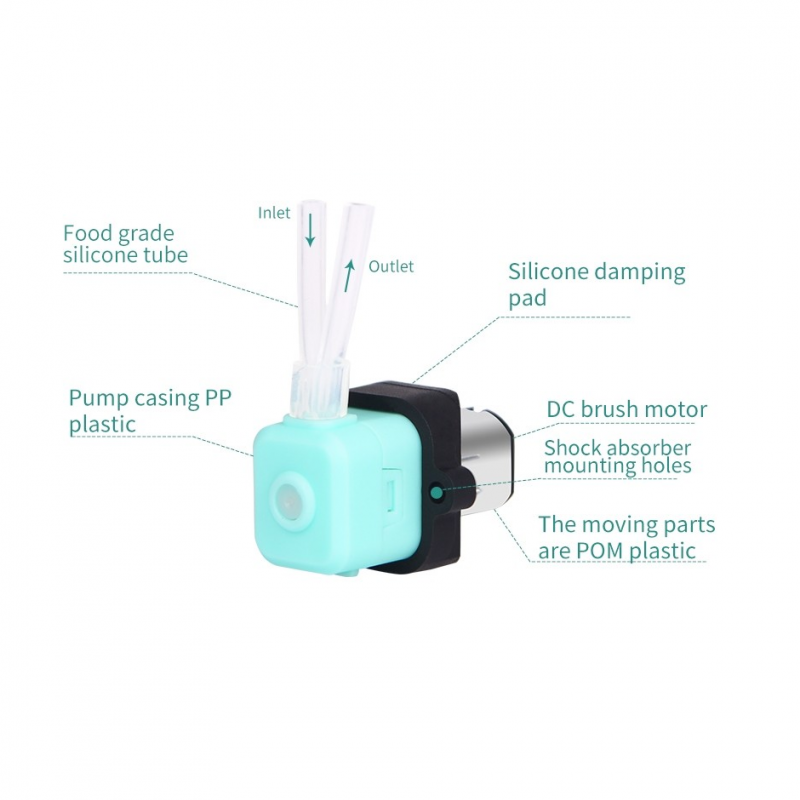

When pumping liquids and no direct contact with the liquid is required, the all-new range of peristaltic pumps from kamoer offers a simple solution. Unlike most pumps, peristaltic pumps squishes a silicone tube to produce the pump-action instead of impelling it directly, thus no direct contact with the liquid. This KMPP series pump requires a 3.7 V DC supply and can produce a flow rate of up to 1-1.8 ml per minute. If speed control is required we suggest using a simple PWM signal.

Application:

1. Medical usage: for liquid transfer, sampling, dispensing
2. Chemical engineering usage: sample analysis, dispensing liquid
3. Ink printer: for transferring ink, cleaning pipeline
4. Laboratory use: liquid dispensing, extract liquid,
5. Family usage: watering flower, garden irrigation

Features:

1. Suitable for OEM applications
2. Can be used with viscous fluids
3. Compact design
4. Low power consumption

Package Includes:

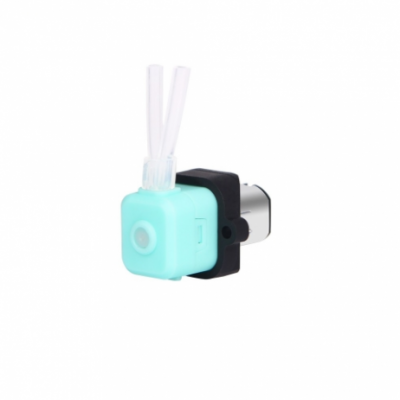

1 x Kamoer 3.7V 0.1A 1-1.8ml/min silicone tube liquid pump Model KMPP-D.7S11

Specifications :-

Brand	Kamoer
Model	KMPP-D.7S11
Operating Current (A)	0.1
Operating Temperature (C)	0 to 40
Noise Level (dB)	<40
Flow Rate (ml/min)	1-1.8
Length (mm)	32
Width (mm)	17
Height (mm)	14
Weight (gm)	13
Shipment Weight	0.017 kg
Shipment Dimensions	4 2 2 cm
