This regulator can provide local on-card regulation, eliminating the distribution problems associated with single-point regulation. It employs internal current limiting, thermal shutdown, and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, it can deliver over 1A output current. Although designed primarily as a fixed voltage regulator, this device can be used with external components to obtain adjustable voltages and currents
Applications:
- Power Management
Features:
- Thermal overload protection
- Output transition SOA protection
- Short circuit protection
- 2 % output voltage tolerance
- Guaranteed in extended temperature range
(A version)
Package Includes:
1 x L7812CV STMicroelectronics Linear Voltage Regulator, 7812, Fixed, Positive, 19V To 35V In, 12V And 1.5A Out, TO-220-3
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

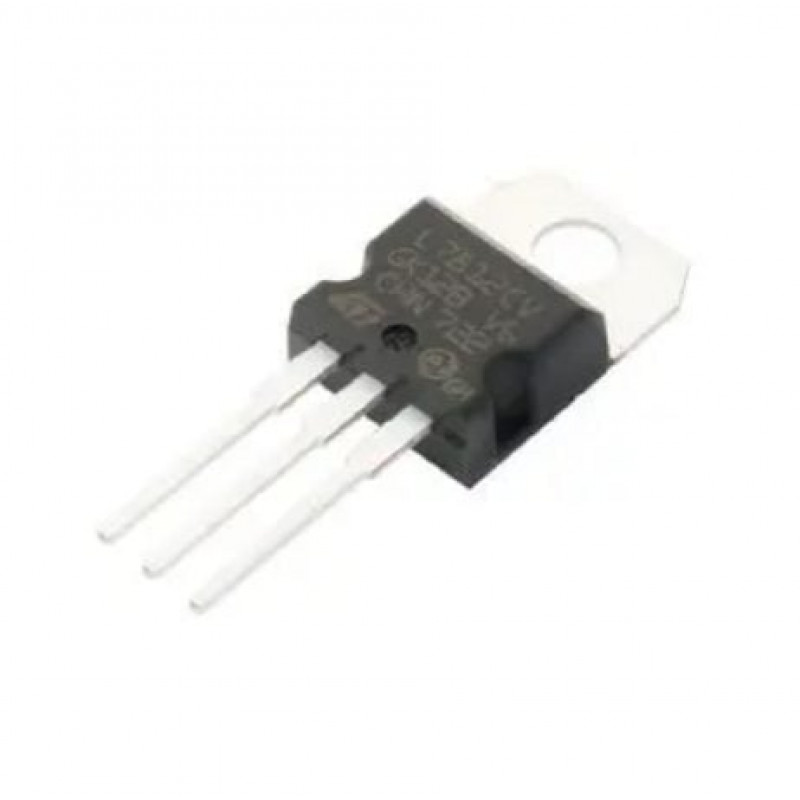

L7812CV STMICROELECTRONICS Linear Voltage Regulator, 7812, Fixed, Positive, 19V To 35V In, 12V And 1.5A Out, TO-220-3
- Product Code: EC-18955
- Availability: 39
-
Rs.36.00
- (Excluding 18% GST)
