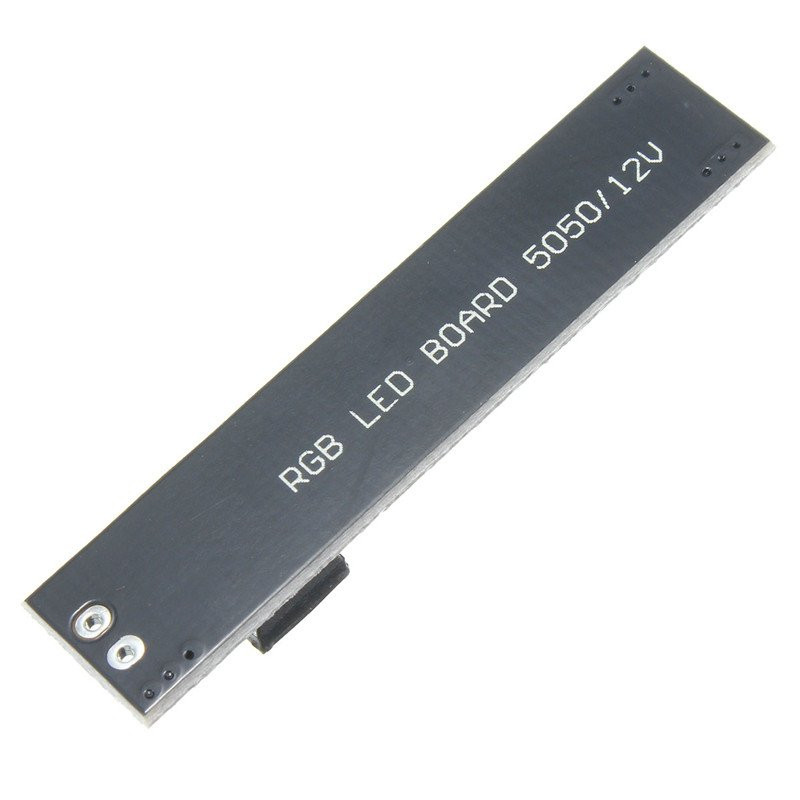

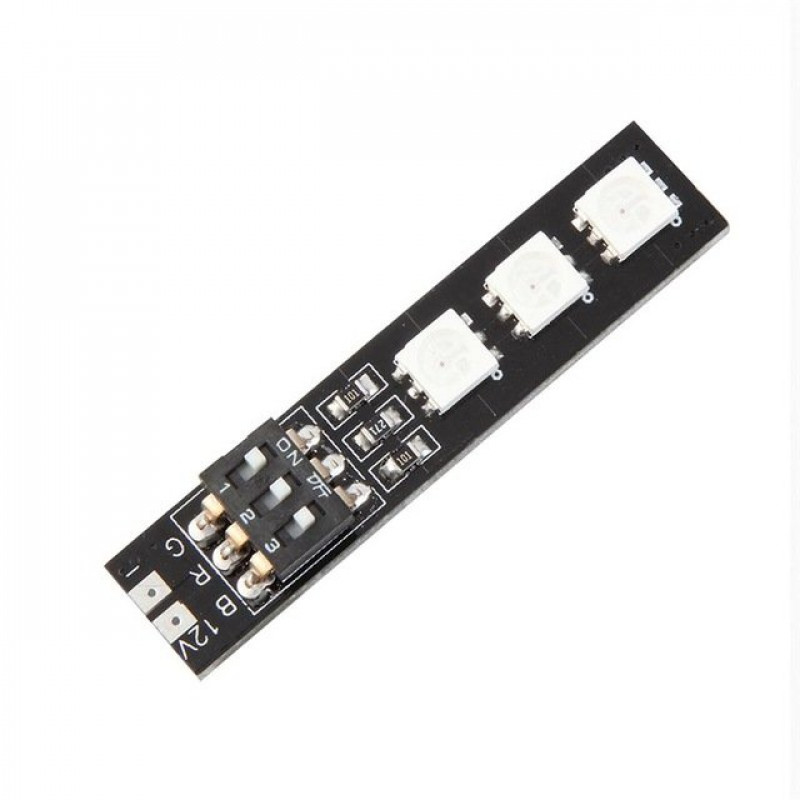

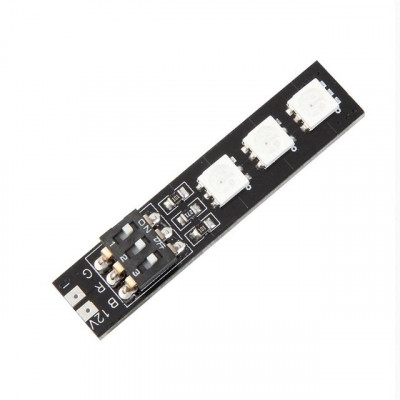

This is RGB 5050 12V LED Board 7 Colors with DIP Switch. The RGB LED Board 5050 12V is designed for the Multi-rotors & FPV Quad-rotors with BEC power or any other 11-13V power source. It comes with three RGB5050 LEDs & one code switch.
Seven colors are selectable using the code switches. This LED board gives an eye-catching effect to your multi-rotors or planes.
Selectable Colors & Power
B ON = Blue 0.35W, 0.03A
R ON = Red 0.35W, 0.03A
G ON = Green 0.35W, 0.03A
B + R ON = Purple 0.70W, 0.06A
B + G ON = Cyan 0.70W, 0.06A
R + G ON = Yellow 0.70W, 0.06A
B + R+G ON = White 1.05W, 0.09A
Package Includes :
1 x RGB 5050 12V LED Board.
1 x Cable 30 cm.
Specifications :-
| Input Voltage (V) | 11 to 13 |
| BEC | |
| Size ( L x W ) mm | 47 x 10 |
| Weight (gm) | 5 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 230.1 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
RGB 5050 12V LED Board 7 Colors with DIP Switch
- Product Code: EC-6817
- Availability: 1
-
Rs.131.00
- (Excluding 18% GST)
