A reed switch is an electromagnetic switch used to control the flow of electricity in a circuit. They are made from two or more ferrous reeds encased within a small glass tube-like envelope, which become magnetised and move together or separate when a magnetic field is moved towards the switch
Applications:
- Position and limit sensing
- Security system switch
- Linear actuators
- Door switch
Note: For more info refer to datasheet
Features:
- 2 Part Magnetically Operated Proximity Sensor
- Flying leads can exit either left or right hand side of the housing
- Case design allows screw down or adhesive mounting
- 300mm (12) Flying leads
- No standby power requirement
- Operates through non-ferrous materials such as wood,plastic or aluminium
- Hermetically sealed,magnetically operated contacts continue to operate long after optical and other technologies fail due to contamination
- Simple installation and adjustment
Package Includes:
1 x LITTELFUSE Reed Switch, 59145 Series, Flange, 20.32 mm
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

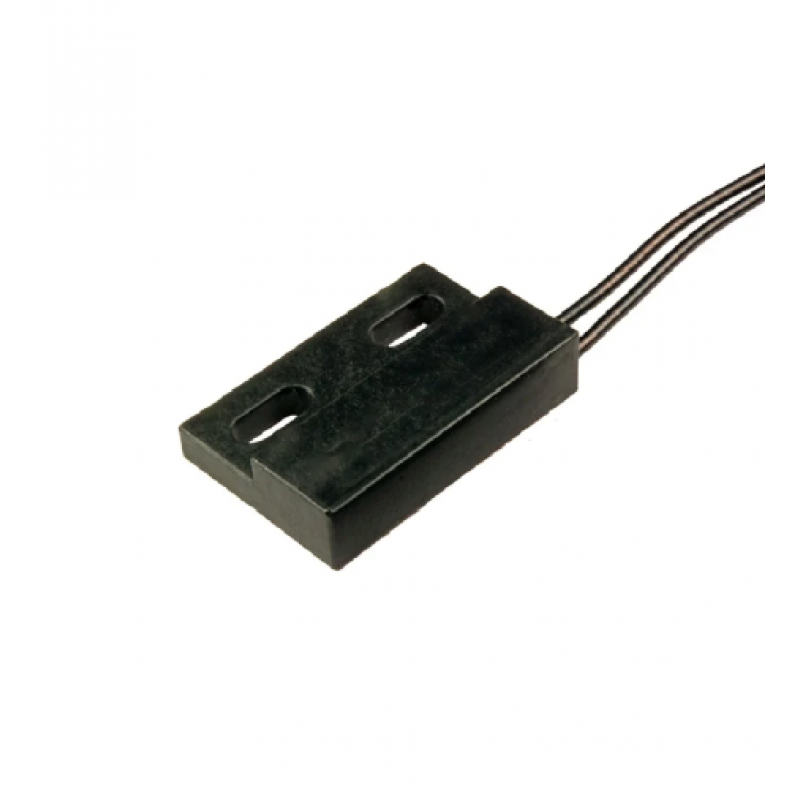

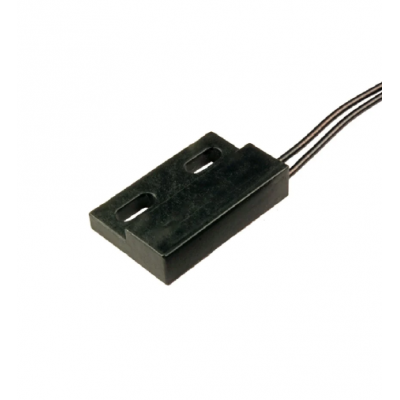

LITTELFUSE Reed Switch, 59145 Series, Flange, 20.32 mm, SPST-NO, 10 W, 150 Vdc. 120 Vac, 0.3 A DC, 0.25 A AC
- Product Code: EC-23407
- Availability: 5
-
Rs.218.00
- (Excluding 18% GST)
