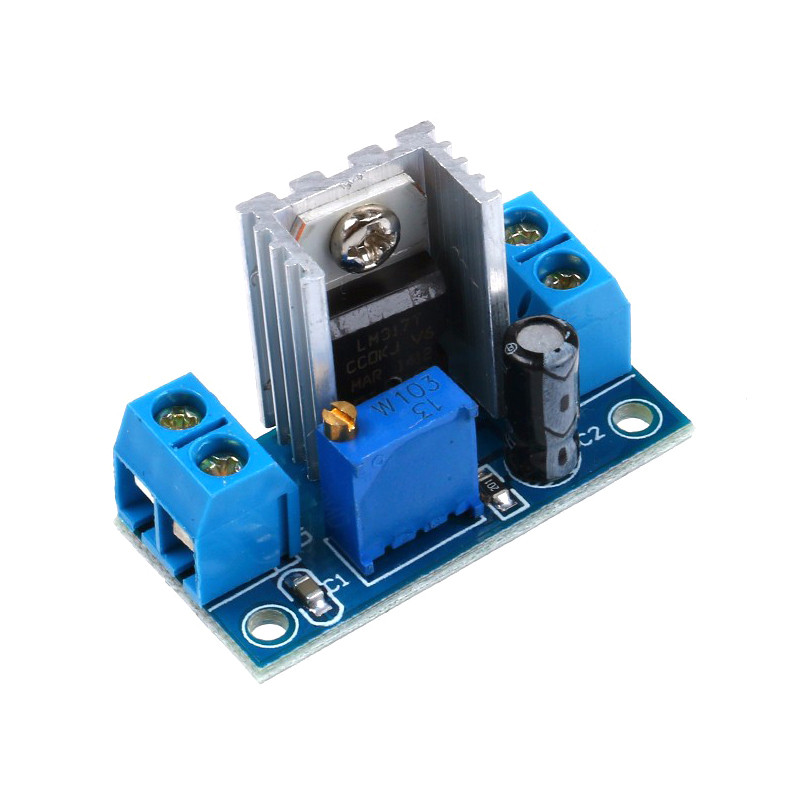

The LM317 DC-DC Adjustable Voltage Regulator Power Supply Module is an adjustable 3-terminal positive voltage regulator. It is capable of delivering more than 1.5 Amp current over an output voltage range of 1.25 to 37 Volts.

The LM317 requires only 2 resistors to set the output voltage. These 2 resistors are available in the form of potentiometers in the module for the convenience of the user. The module also has onboard input and output filter capacitors.

There are 2 set of 2-way connectors for input and output dc voltages.

Specifications:-

Type: Adjustable Linear Regulator

Output current: 1.5A (min), 2.2A (TYP)

Input-output voltage differential (VI-VO): 40V DC (max)

Adjustable output voltage range: 1.2V ~ 37V

Operating temperature: -55 DegC to 150 DegC

Current output: 1.5A

Voltage input: 4.2V ~ 40V

Operating temperature: 0 DegC ~ 125 DegC

Characteristic frequency: 100MHz.

Module size: 35.6 x 16.8 mm.

Input method: Vin input is level, GND input is negative

Output: Vout output positive stage, GND output negative

Package Included:-

1 X LM317 DC-DC Adjustable Voltage Regulator Power Supply Module
