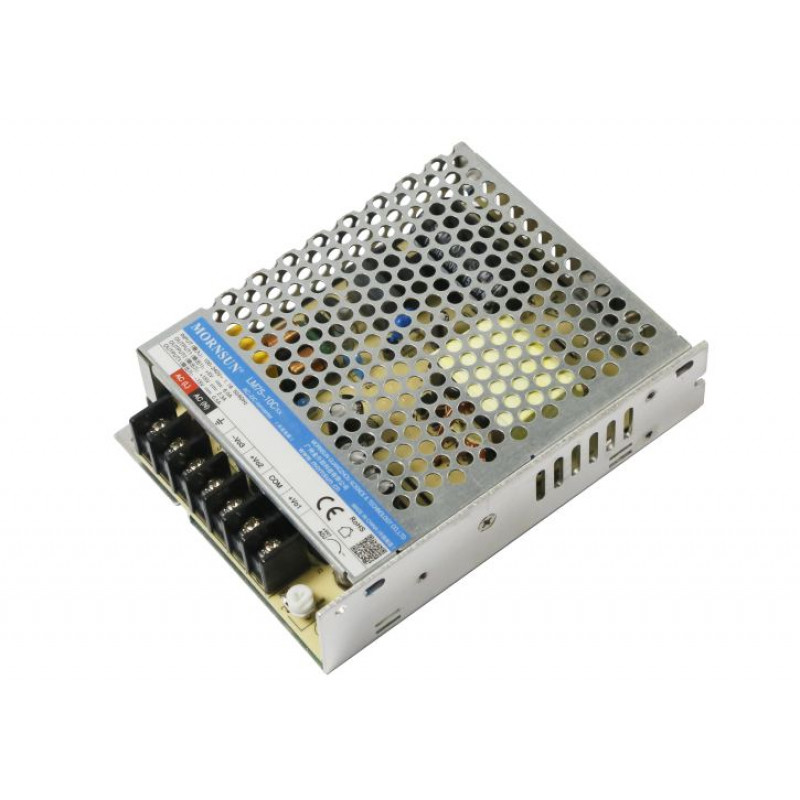

  • LM75-10C051515-23 Mornsun SMPS - (5V 6A), (15V 2.3A) and (-15V 0.5A) - 72W AC/DC Enclosed Triple Output Switching Power Supply

LM75-10C051515-23 is one of power converter design features 3 output versions, which can independently supply 3 different loads in the system. The products can be used in harsh working environments with an room temperature range from -30℃ to +70℃, without the need of a fan for further heat dissipation. In addition, the converters EMC immunity performance meets the requirements of IEC61000 standard and meet emission standard CISPR32/EN55032, class B without any external components, thus providing excellent EMC protection. The products also meet IEC/EN/UL62368, EN60335, GB4943 safety standards. The converters integrate a variety of protection features and offer a high-performance to low-cost ratio providing the best power solution for a variety of industries such as industrial control equipment, instrumentation and smart home and building equipment application.


Key Specifications

Type Enclosed Type Triple Output
Output Power 72W
Series LM75-10C
Part Number LM75-10C051515-23
Mechanical Form Enclosed
IP Level  Non-Waterproof
Output Voltage 5V, 15V, -15V
Output Current 6A, 2.3A, 0.5A


Features

• Universal 90 - 264VAC or 120 - 373VDC Input voltage

• Operating ambient temperature range: -30℃ to +70℃

• High efficiency, high reliability and long service life

• LED indicator for power on

• Output short circuit, over-current, over-voltage protection

• Withstand 300VAC surge input for 5s

• High I/O isolation test voltage up to 3000VAC

• Safety according to IEC/EN/UL62368, EN60335, GB4943

• Emissions compliant to CISPR32/EN55032 CLASS B

• Withstand 5G vibration test

• Operating altitude up to 5000m


Detailed Specifications

Input voltage range 90-264VAC; 120-373VDC
Inrush current (max.) Cold start, 50A at 230VAC
Output voltage adjustable range 4.75-5.5V
Working current range 0.6-7A, 0.23-3.5A, 0.05-1A
Efficiency at 230VAC 82%
Max. capacitive load 6000µF, 2300µF, 470µF
Input current (max.) 0.9A at 230VAC
Short circuit protection Hiccup, continuous, self-recovery
Over-current protection 110%≤ Io, self-recovery
Withstand voltage 300VAC
Working temperature -30 - 70°C
Connection Terminal block
Dimension (LxWxH) 129 x 97 x 30 mm
Weight 320 gm
Cooling Method Free air convection
Case Material Metal (AL1100, SGCC)
MTBF >300000 Hrs
Safety Class CLASS I
Safety standards Meet IEC/EN/UL62368/EN60335/GB4943
EMC standards CISPR32/EN55032 CLASS B, IEC/EN61000-3-2 CLASS A, IEC/EN 61000-4-3 10V/m
Certification CE, RoHS
Warranty 3 years


Download DATASHEET :

Download

Brand/Manufacturer Generic
Country Of Origin China
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 2004.82 (Inclusive of all Taxes)
