Key Specifications:-
- Output Voltage 12V
- Type LED & Waterproof
- Approx. Wattage 18W
- Features Standard
- Series LPH (Plastic IP67)
- Mechanical Form Plastic
- Warranty 2 Years Warranty
- IP Level IP67
- Input Voltage 100-240V auto-select
Features:-
- 180~264VAC input only
- Fully encapsulated with IP67 level
- Protections: Short circuit / Overload / Over voltage / Over temperature
- Constant voltage design (C.V. mode)
- Class 2 power unit / Pass LPS
- Isolation class II, no F.G.
- Cooling by free air convection
- 100% full load burn-in test
- Low cost, high reliability
- Suitable for LED-based decorative/architectural lighting, LED stage and theater lighting, and LED electronic displays
- 2 years warranty
Specifications:-
| AC input voltage range | 180~264VAC |
| AC inrush current | Cold start,50A at 230VAC |
| Overload Range | >105% |
| Protection Type | Hiccup mode, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Withstand voltage | I/P-O/P: 3kVAC |
| Working temperature | -30~+70°C |
| Vibration | 10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
| Safety standards | TUV EN60950-1, EN61347-1, EN61347-2-13 approved for LPH-18 |
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
| Connection Input | UL rated,18AWGx2C (30cm) |
| Connection Output | UL rated,18AWGx2C (30cm) |
| Dimension (LxWxH)(mm) | 140x 30x 22 |
- Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 644 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

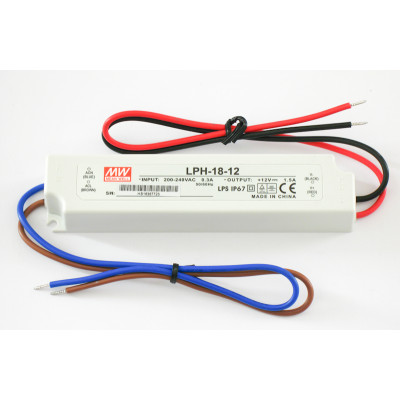

LPH-18-12 Mean Well SMPS - 12V 1.5A 18W Waterproof LED Power Supply
- Product Code: EC-3511
- Availability: Out Of Stock
-
Rs.575.00
- (Excluding 12% GST)
