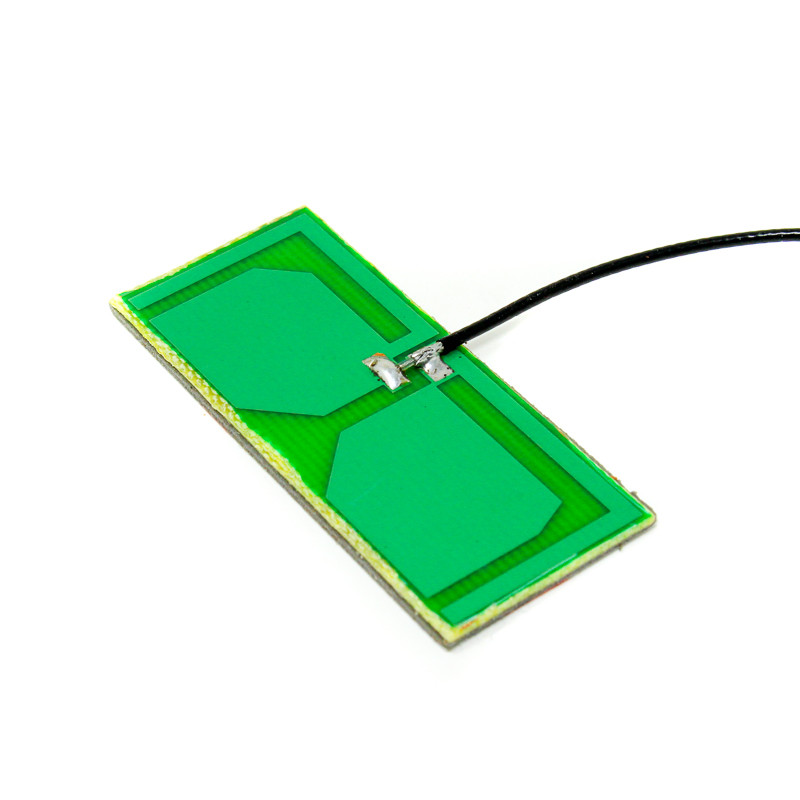

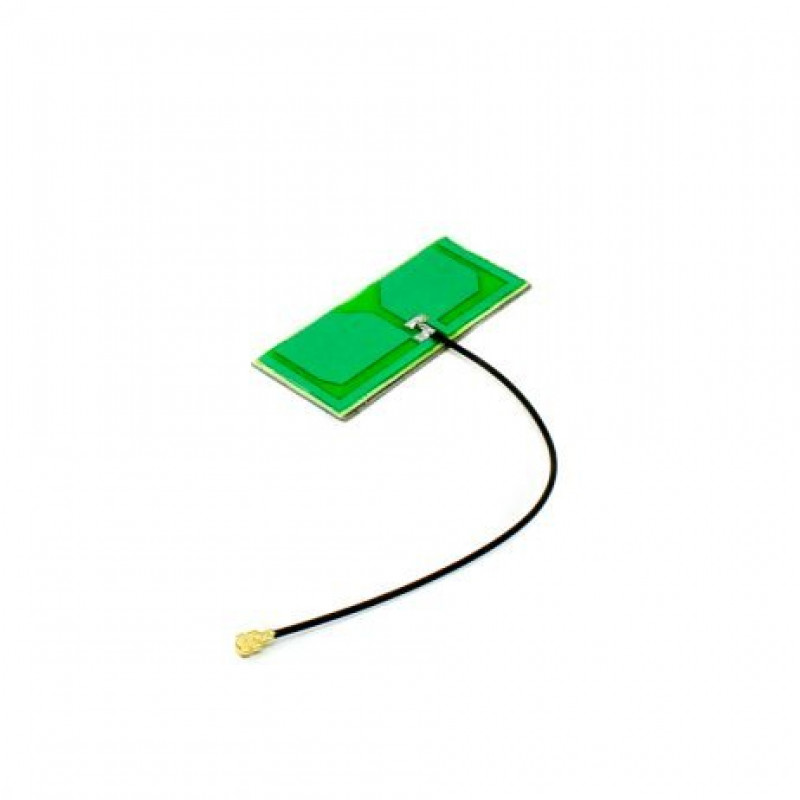

This is a PCB Patch Antenna having a frequency of 1575 +/- 20MHz with > 2.5dBi dBi gain. PCB Antenna is a wireless device to receive and transmit signals, it has been widely used in GPS applications. One of the main reasons to use a PCB (printed circuit board) antenna is the reduced overall cost of the radio module.

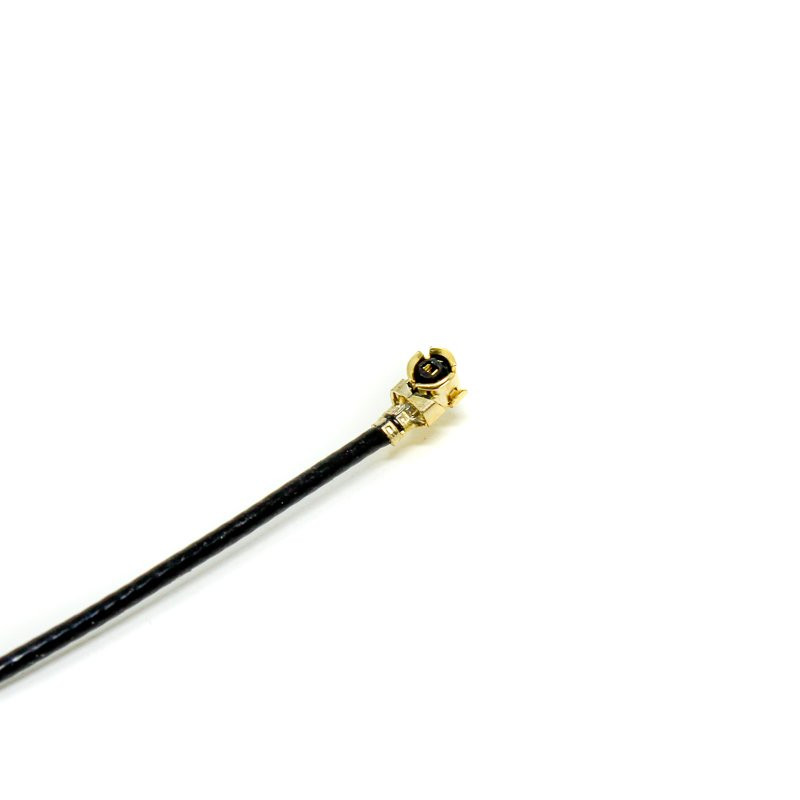

This antenna comes with an IPEX MHF1 Female connector to connect with the application.
Application: GPS
Features:
- Internal PCB Antenna for GPS Applications
- Compact Size
- High quality
- Low cost

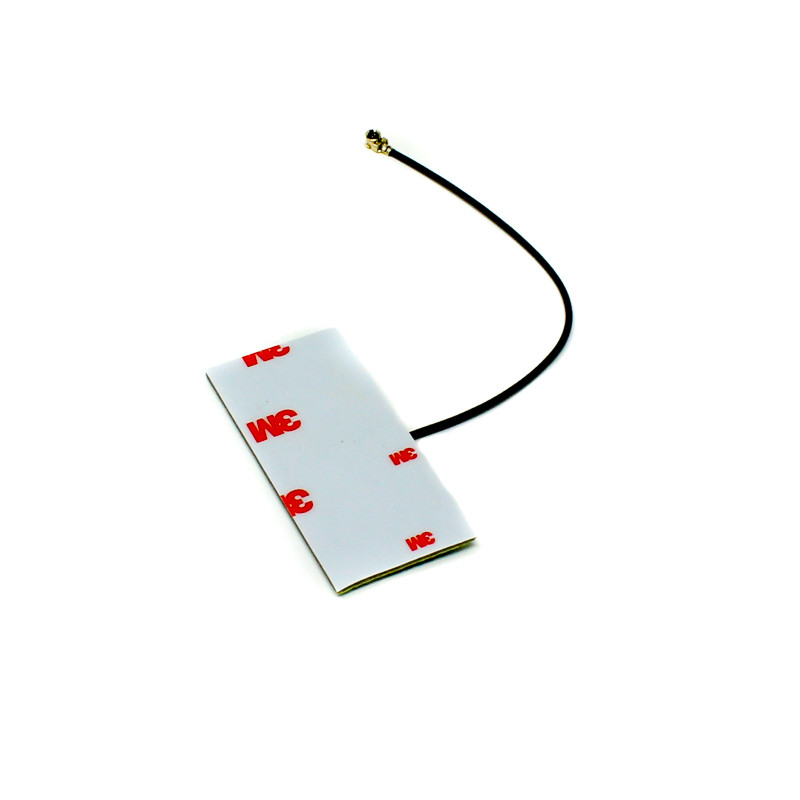

- 3M high-quality adhesive
- Masking for corrosion-free
Package Includes:
1 x LWC-GPS-passive LP-03-(V1.0) Patch antenna
Specifications :-
| Model | LWC-GPS-passive LP-03-(V1.0) |
| Frequency Range | 1575 +/- 20MHz |
| Antenna Gain | > 2.5dBi |
| Impedance () | 50 |
| VSWR | < 2.0 |
| Cable Length (mm) | 100 |
| Connector Type | IPEX MHF1 (female) |
| Power Handling (W) | 2 |
| Operating Temperature Range (C) | -40 to 85 |
| Opt. Relative Humidity(RH) | 15% ~ 75% |
| Weight (g) | 5 |
| Body Dimensions (Dia. x Length) mm | 20 x 47 |
| Shipment Weight | 0.01 kg |
| Shipment Dimensions | 6 4 1 cm |
Attachments :
Download
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 160.48 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
LWC-GPS-passive LP-03-(V1.0) Patch Antenna
- Product Code: EC-7575
- Availability: 5
-
Rs.152.00
- (Excluding 18% GST)
