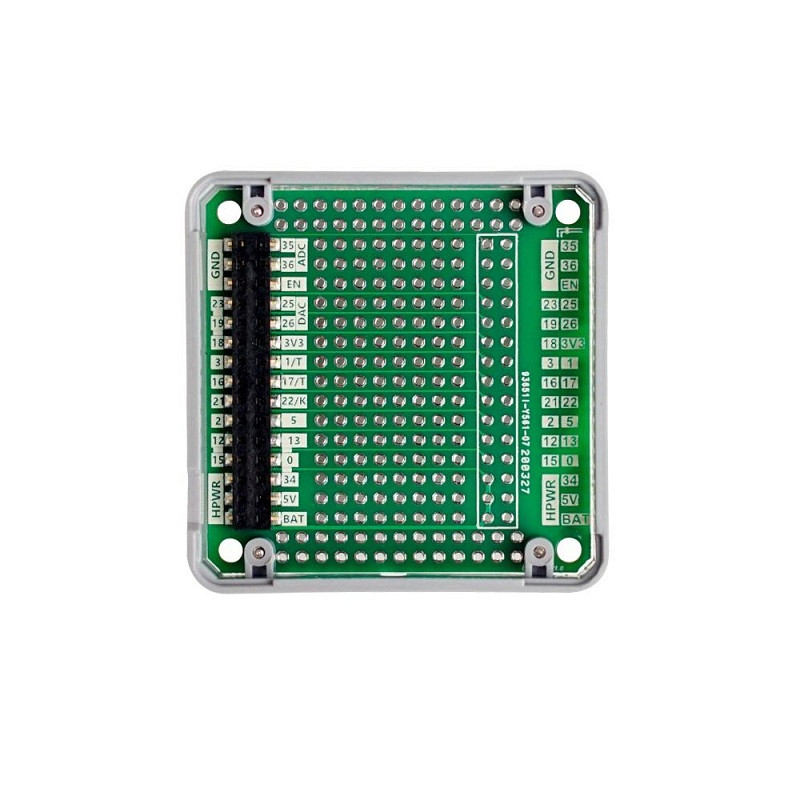

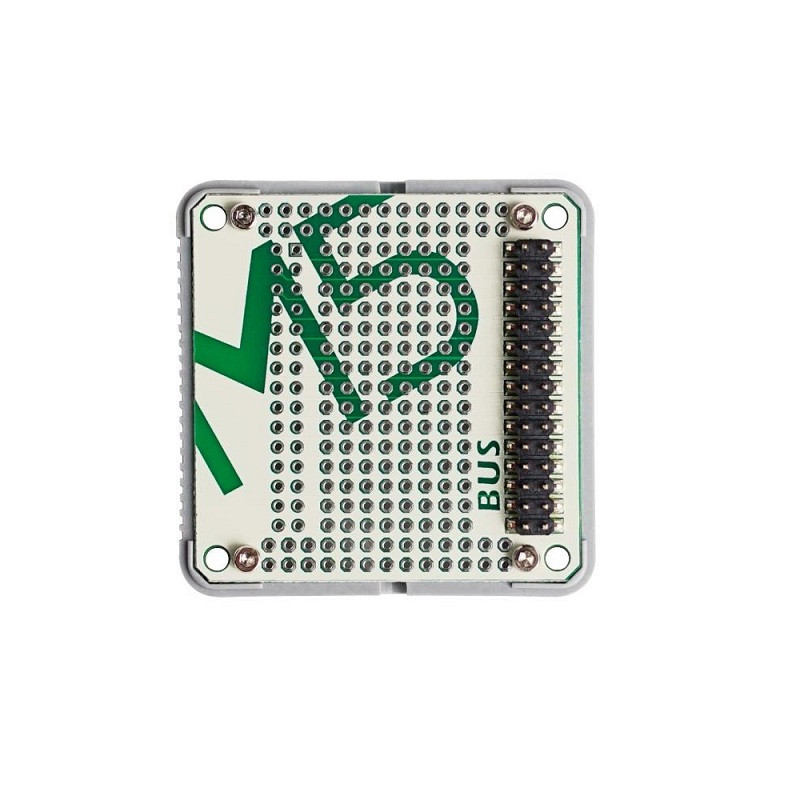

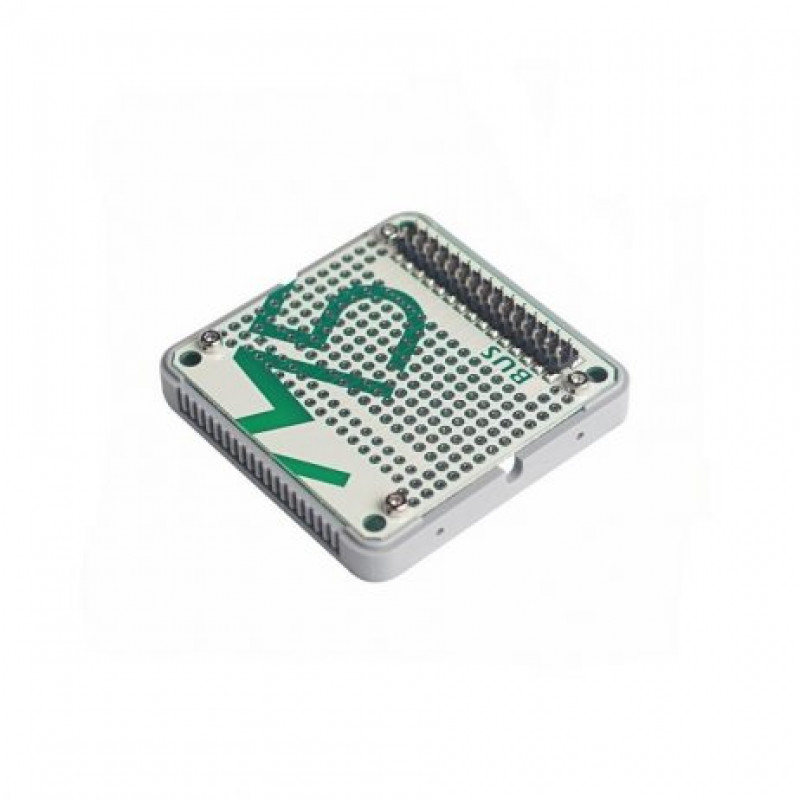

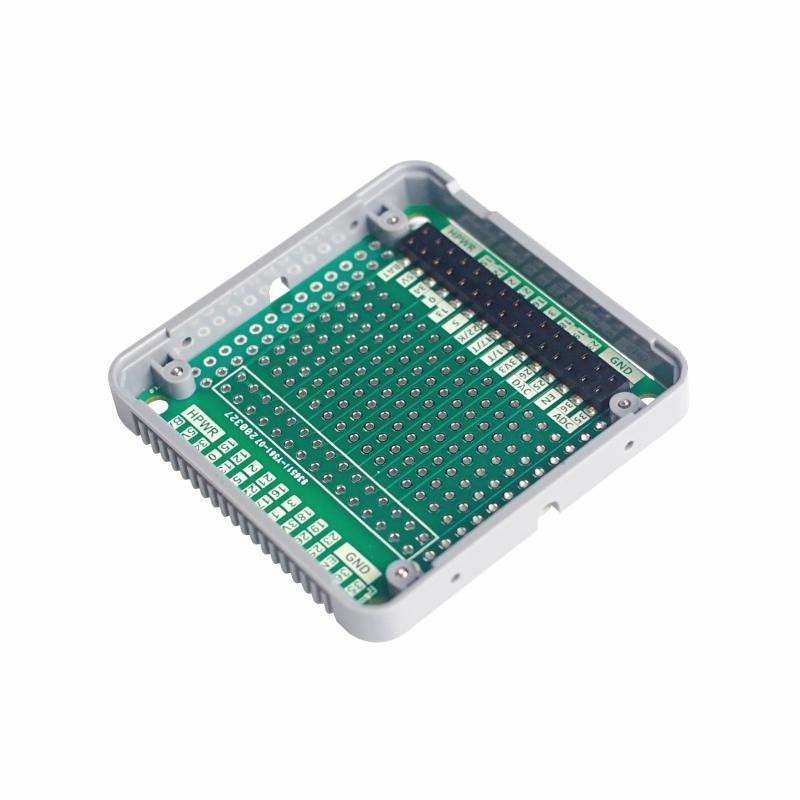

BUS Module allows you to add your own circuit design on the Universal prototype per board and interact with the M5 core via M-BUS.

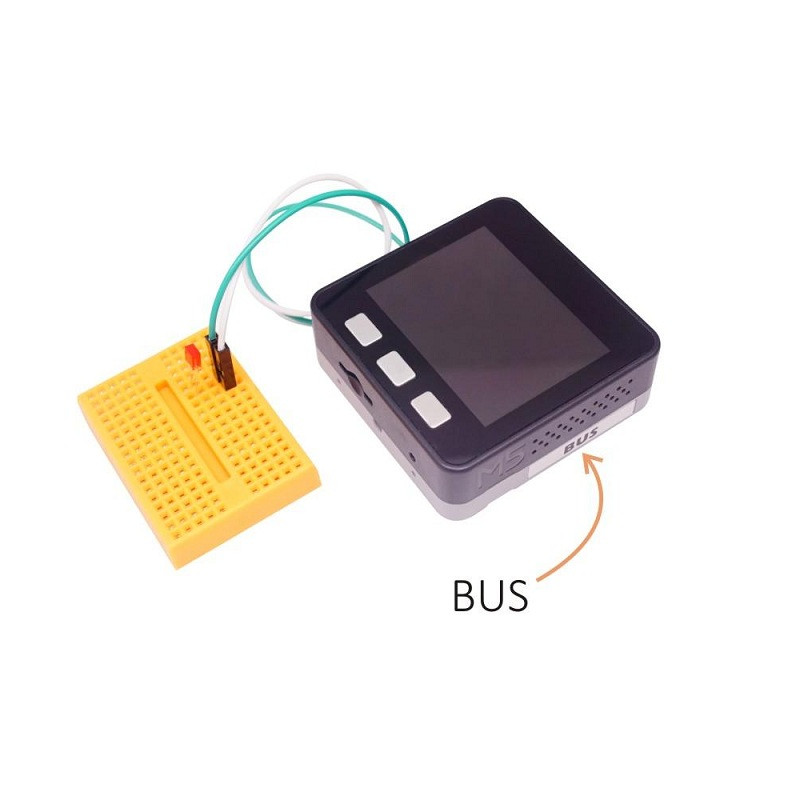

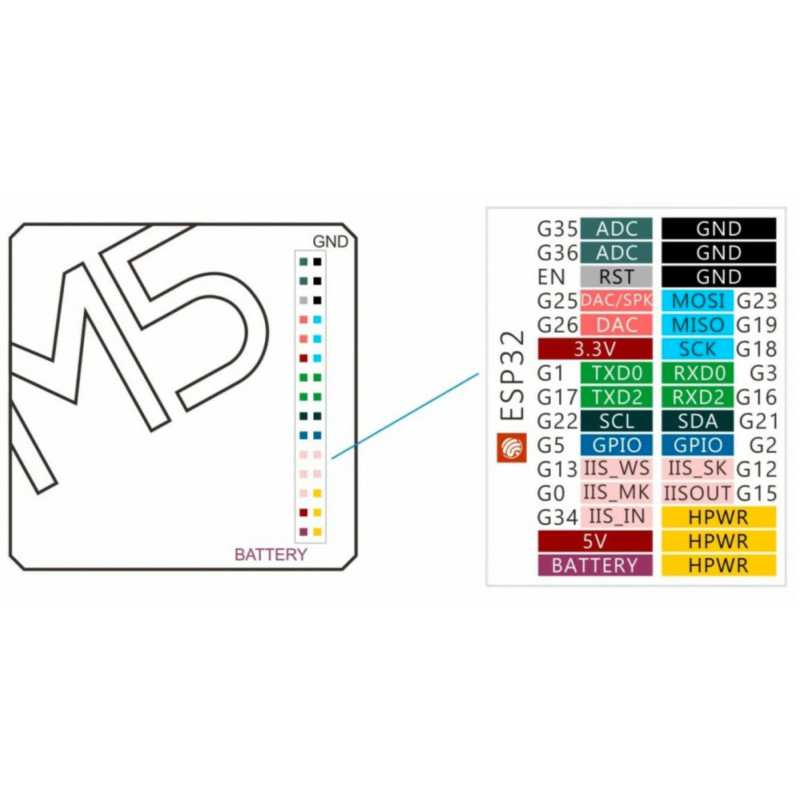

Just like other M5STACK modules, BUS is able to connect with other layers through M-BUS, while in this module, weve extended the M_BUS pin to pin to the other side of the board. You might need to cut off the fence on the side to be able to DuPont out the pins. weve included a 2*15 90 degrees pin set in the package.
Features:
- High-Quality Construction
- Hole Size: 0.039 1mm (CNC Drilled)
- Hole Pitch: 0.1 in (2.54 mm)
- Entire Hole Quantity: 200 Holes

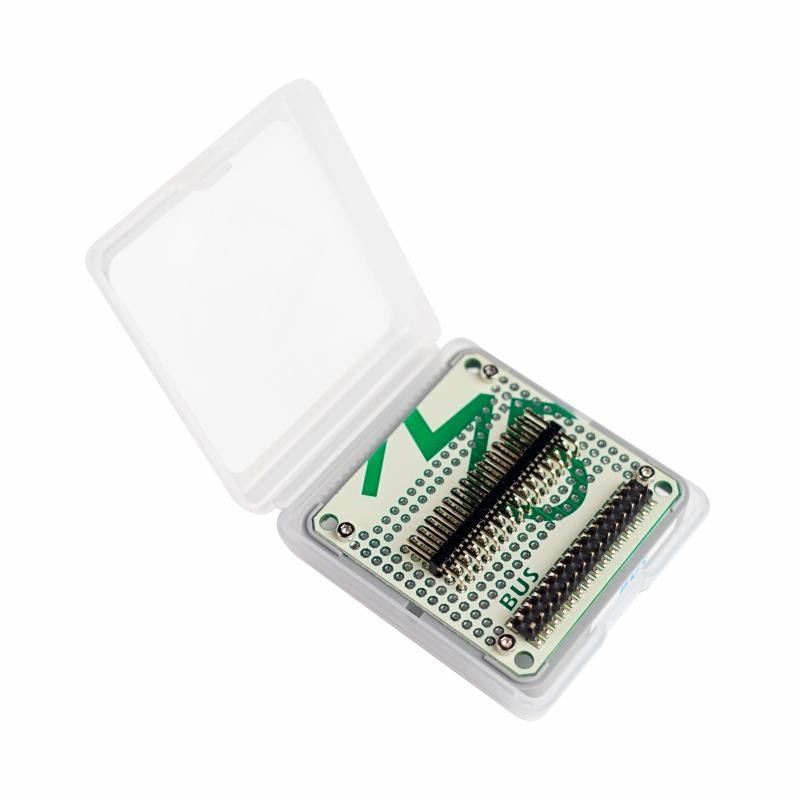

Package Includes:
1 x M5 Stack BUS Module
Specifications :-
| Compatible With | M5 Core |
| Number of holes | 200 |
| Length (mm) | 54 |
| Width (mm) | 54 |
| Height (mm) | 13 |
| Weight (gm) | 13 |
| Shipment Weight | 0.017 kg |
| Shipment Dimensions | 7 6 2 cm |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 352.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
M5 Stack BUS Module
- Product Code: EC-8269
- Availability: 2
-
Rs.334.00
- (Excluding 18% GST)
