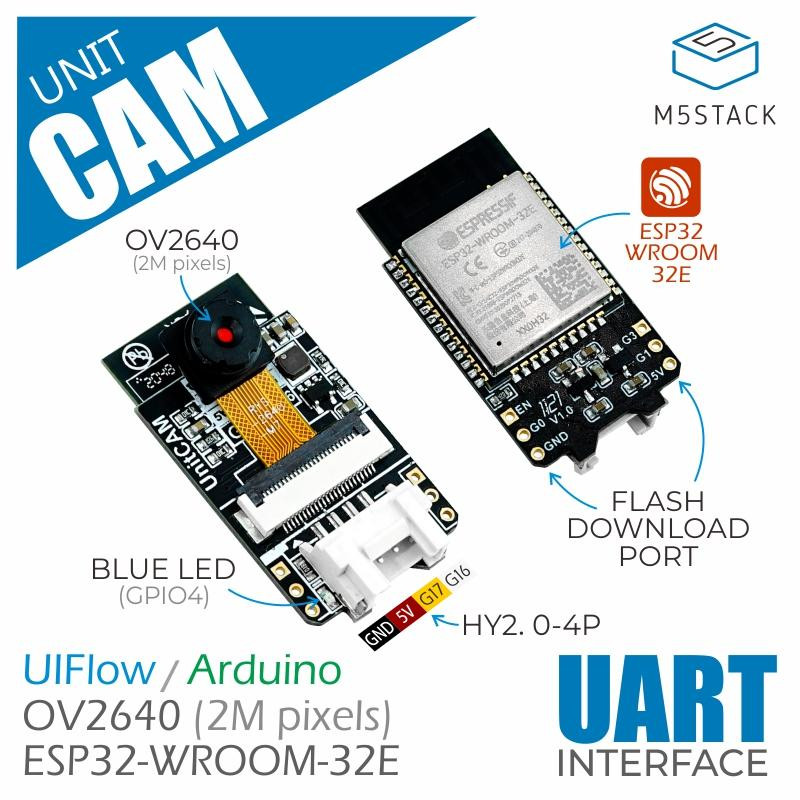

M5Stack Unit Cam Wi-Fi Camera (OV2640) is a very cost-effective WiFi camera, using ESP32-WROOM-32E control core + 2MegaPixel image sensor (OV2640) solution on the hardware, using the most simplified design, no extra peripherals. The factory software integrates image transmission firmware, provides image data acquisition, image parameter (white balance, exposure, gain, size and other attributes) adjustment interface, users can directly acquire image data through UART or WiFi, and interact with the camera. Support UIFlow graphical programming call, realize zero development, out-of-the-box user experience. The compact design and cost performance are suitable for various wireless camera application scenarios.
Applications
- WiFi camera
- Remote monitoring
Features:
- Simplified design
- ESP32 control core
- 2MegaPixel camera (OV2640)
- UART communication (support image data acquisition, image parameter adjustment and other interfaces)
- WIFI image transmission
- Programming platform: ESP-IDF/Arduino/UIFlow
Package Includes:
1 x M5Stack Unit Cam Wi-Fi Camera (OV2640)
Specifications :-
Camera | OV2640 |
Flash Memory | 4M |
Firmware default communication method | UART: 115200bps 8N1 |
Maximum resolution | 2MegaPixel |
Unit CAM firmware default picture transfer rate | 12fps |
OV2640 supports output format | YUV(422/420)/YCbCr422, 8-bit compressed data, RGB565/555, 8-/10-bit Raw RGB data |
OV2640 supports the maximum image transfer rate | UXGA/SXGA: 15fps, SVGA: 30fps, CIF: 60fps |
DFOV | 66.5 |
Length (mm) | 45 |
Width (mm) | 20 |
Height (mm) | 12 |
Weight (gm) | 5 |
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 1131.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
M5 Stack Unit Cam Wi-Fi Camera (OV2640)
- Product Code: EC-8261
- Availability: 1
-
Rs.1074.00
- (Excluding 18% GST)
