Unit ACSSR is a DC to DC single phase solid state relaycontroller kit, that comes with a single phase solid state relay + ESP32C3 controller board. Supports key control, I2C slave, and Modbus networking modes of operation. Integrated programmable full-color RGB LED for state indication, clear to operate.

This kit is contactless and adopts semiconductor switching elements. It has several advantages such as high switching speed, extremely long life, low switching noise, no switching spark, and ultra-reliable than most mechanical relays. Widely used in digital program control devices, motor control devices, temperature control, data processing systems, and computer peripheral interface devices. It is specially designed for harsh environments with corrosion, humidity, or explosion-proof requirements and frequent turn-on/off requirements.

Applications:

1. AC line interrupting
2. Motor equipment control
3. Temperature control devices

Features:

1. Single-phase solid-state relay
2. Three operating modes. Push button control I2C slave (support device I2C address configuration) Modbus
3. networking (supports device ID configuration)
4. Programmable full-color RGB LED

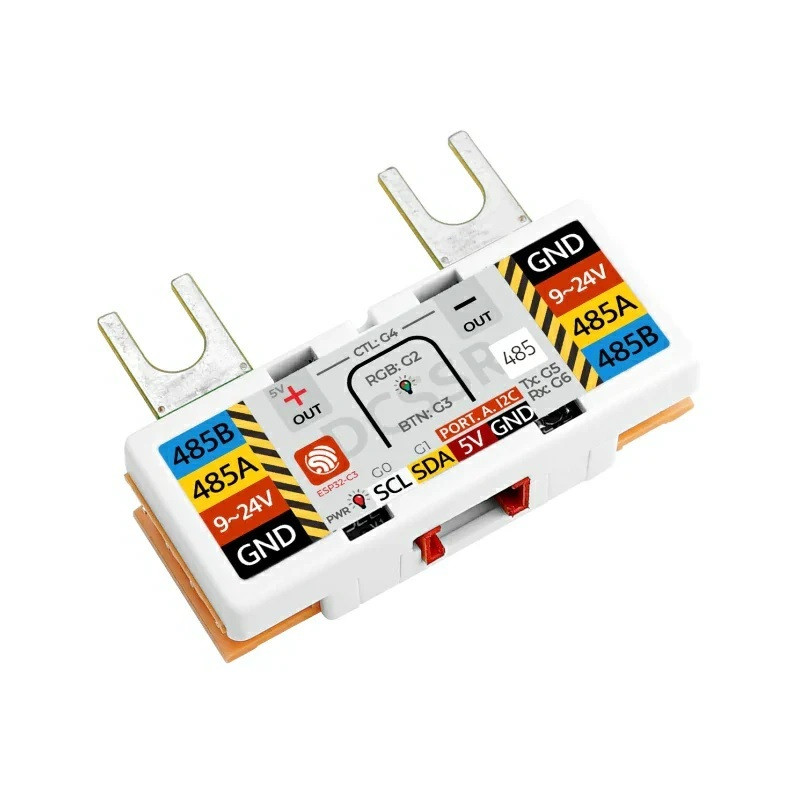

5. RS485PWR interface (support input 9-24V to power the device)

Specification:

1. Resources Parameters
2. Main Controller: ESP32C3
3. Programmable RGB LED SK6812
4. Load Current 10A
5. Input Control Voltage: 3-32VDC
6. Load Voltage: 24~220VDC
7. Input Control Current 5mA~20mABreakdown Leakage Current 5mA On-state Buck 1.6
8. Operating current safety series resistive load: 50% Inductive load: 50%Electrical lifetime1 million times
9. Indicator Light Red (Lighted: Closed / Off: Disconnected)
10. Product Size: 80 * 45 * 31mm
11. Package Size: 147 * 90 * 40mm
12. Product Weight: 112.6g
13. Package Weight: 137.8g

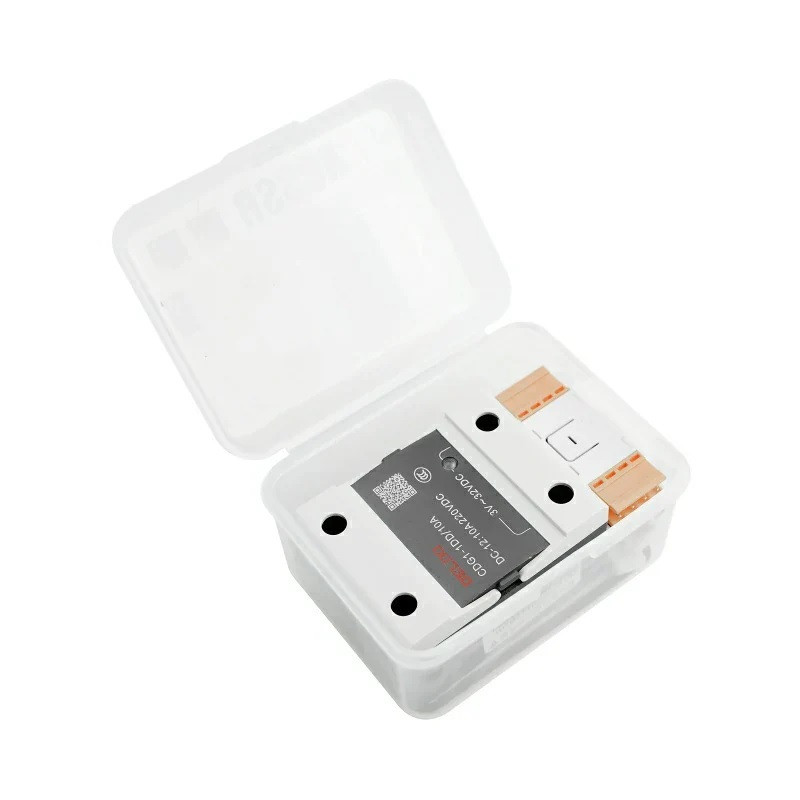

Package Includes:

1 x Single Phase Solid State Relay

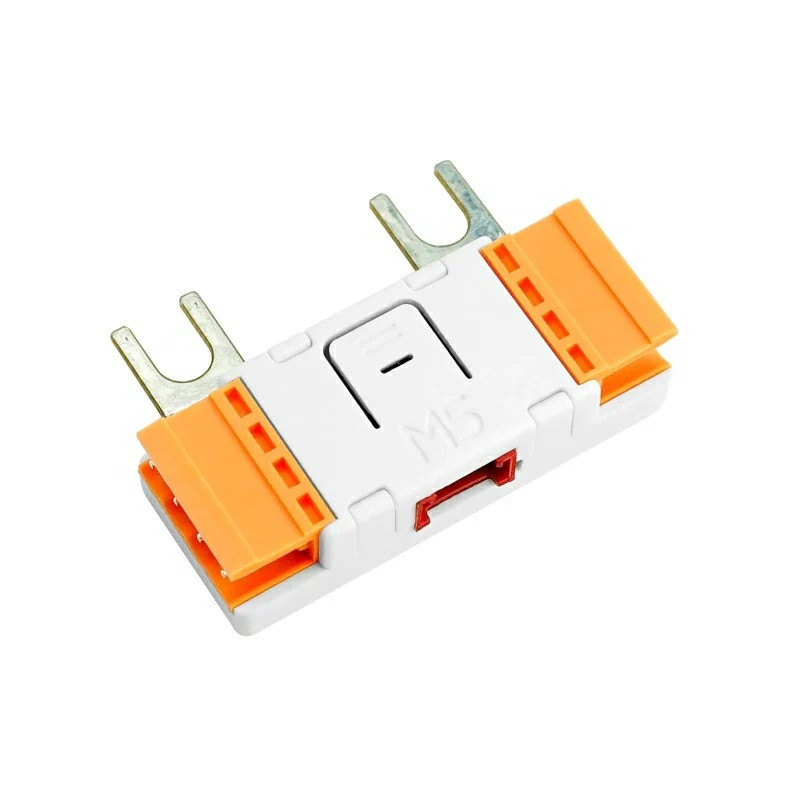

1 x UNIT ACSSR
1 x HY2.0-4P Cable (20cm)
1 x Communication protocol manual
2 x 3.96-4P Terminal Block
