The A4988 Stepper Motor Driver Module was designed as a Breakout Board, capable of controlling a four, six or eight-wire Stepper Motor at five different microstep resolutions. It can operate at up to 2A and between 8 to 35V with a heat sink, and includes overcurrent protection, an under-voltage lockout as well as cross-current interference protection. This allows it to operate in conjunction with other parts and components in a system, or as an individual controller reacting to commands from a user or a separate system.
Features:
- Low RDS(ON) outputs
- Automatic current decay mode detection/selection
- Mixed and Slow current decay modes
- Synchronous rectification for low power dissipation
- Internal UVLO
- Crossover-current protection
- 3.3 and 5 V compatible logic supply
- Thermal shutdown circuitry
- Short-to-ground protection
Package Includes:
1 x MakerBase MKS A4988 Stepper Motor Driver Module
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

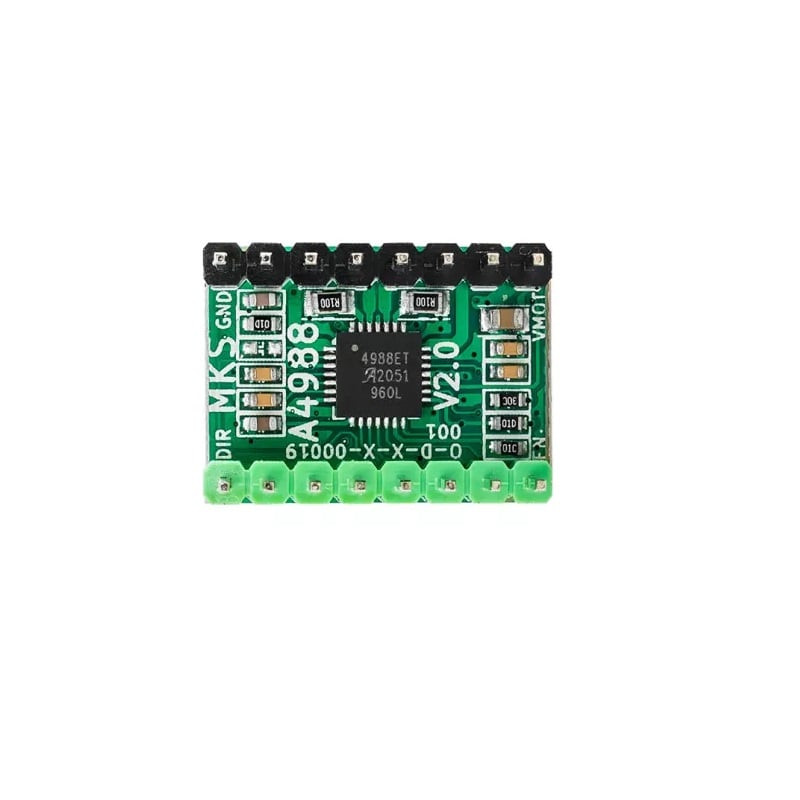

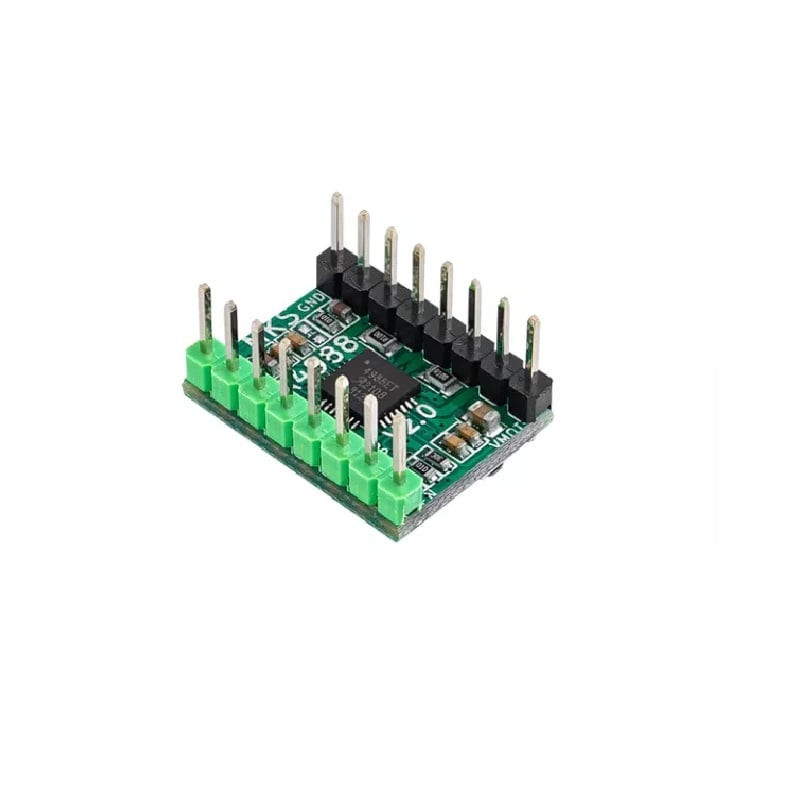

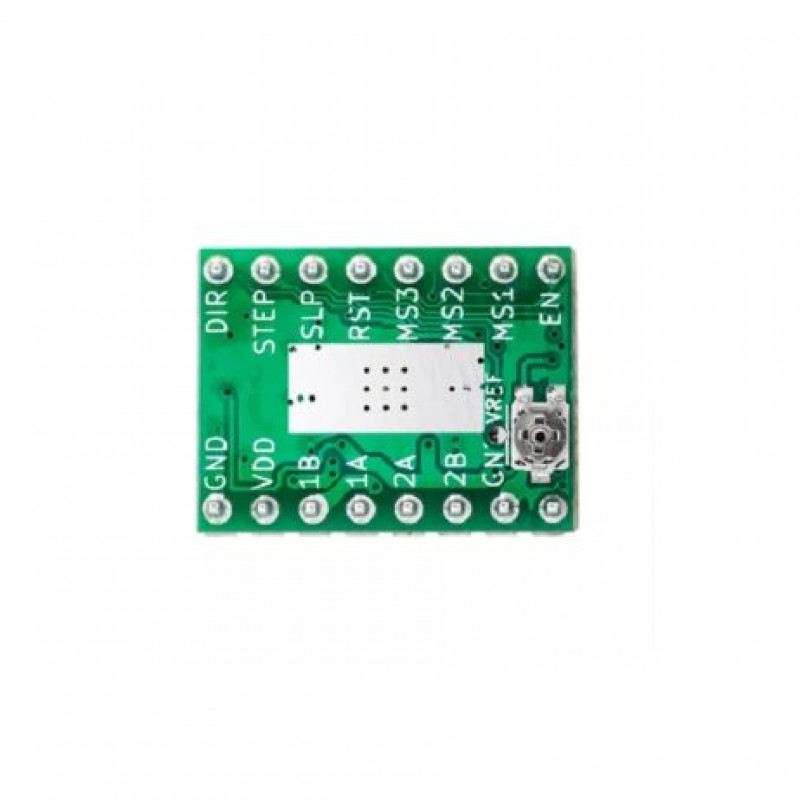

MakerBase MKS A4988 Stepper Motor Driver Module
- Product Code: EC-20250
- Availability: 3
-
Rs.158.00
- (Excluding 18% GST)
