TMC2208 V2.0 single-axis stepper motor drive chip, Default current:1.25a, Max current:2.0a, Input voltage:4.75v-36v Step resolutions: 256 micro steps/step resolution. Flexible MicroPlyer interpolation unit, also limited in pulse rate system can still be perfect to achieve sinusoidal control. With patented technology, SpreadCycle High Chopper frequency, dcStep, stallGuard2 stall detection technology, CoolStep Stream Dynamic Adjustment technology, can save 70% energy, StealthChop Mute technology. Compared to the TMC2100 stepper motor driver module, the TMC2208 driver module is with lower heat.
The heat of TMC2208 in 0.8A with the equivalent effect of the TMC2100 heat in 0.5A, can be used interchangeably with the TMC2100. Support UART Mode You Can use UART Mode in MKS SGEN L V1.0 / MKS GEN L V2.0 / MKS Robin E3D, SKR 1.3 / 1.4 by setting the jumper cap. (No jumper is needed, no welding drive is required, and it is more convenient to use) This function does not support MKS GEN L V1.0
Features:
- Ultra quiet
- The large heat sink, good heat dissipation
- Support UART mode by setting jumper caps instead of welding on mks gen_l V2.0,skr 1.3/1.4, mks sgen_l.
Package Includes:
1 x MakerBase MKS TMC2208 v2.0 Stepper Motor Driver Module
1 x Heatsink
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

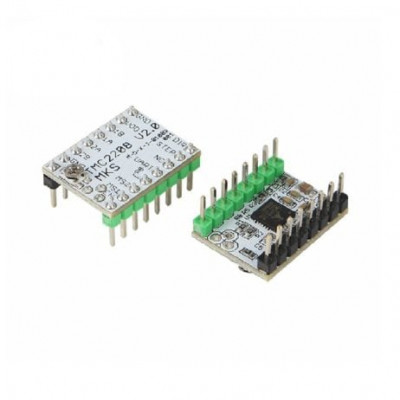

MakerBase MKS TMC2208 v2.0 Stepper Motor Driver Module
- Product Code: EC-20253
- Availability: 2
-
Rs.290.00
- (Excluding 18% GST)
