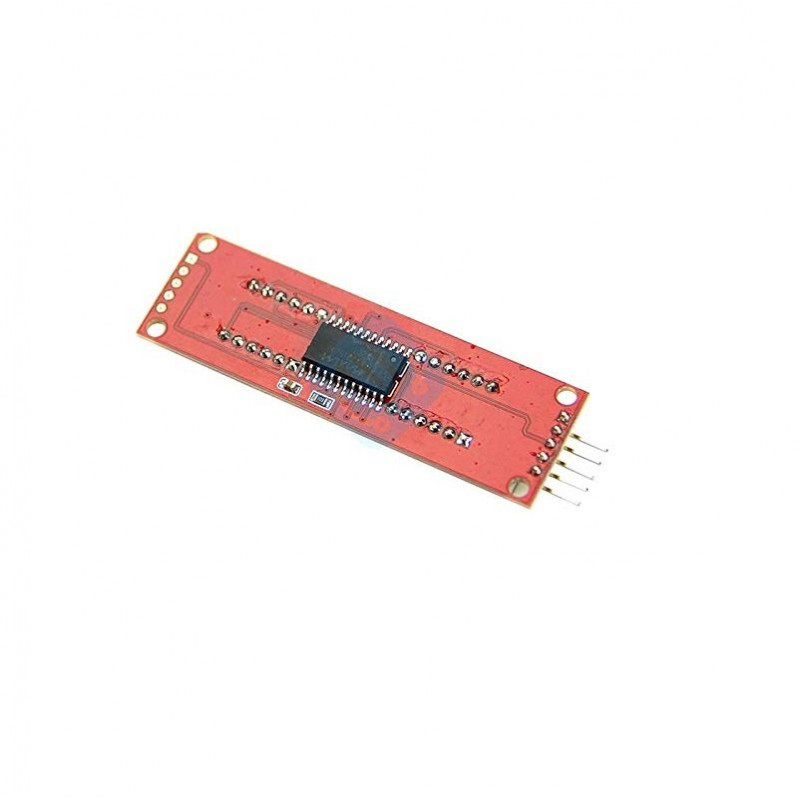

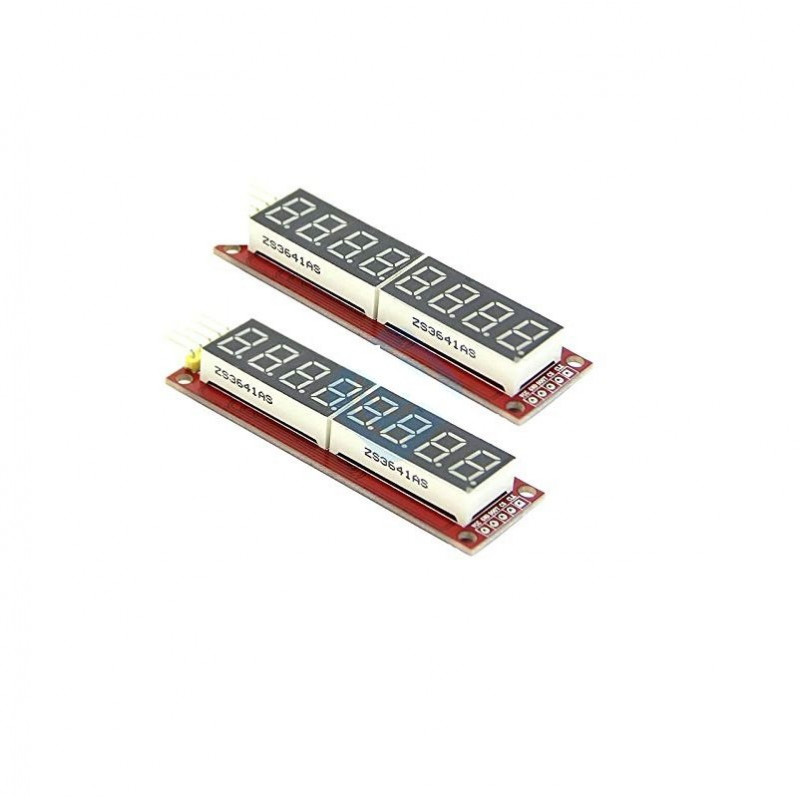

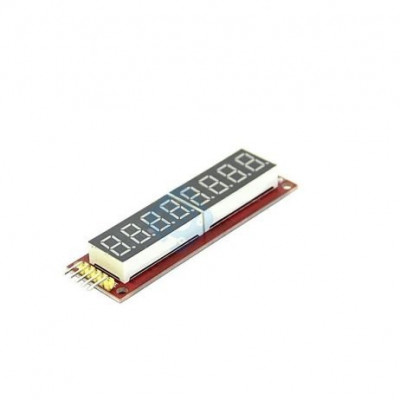

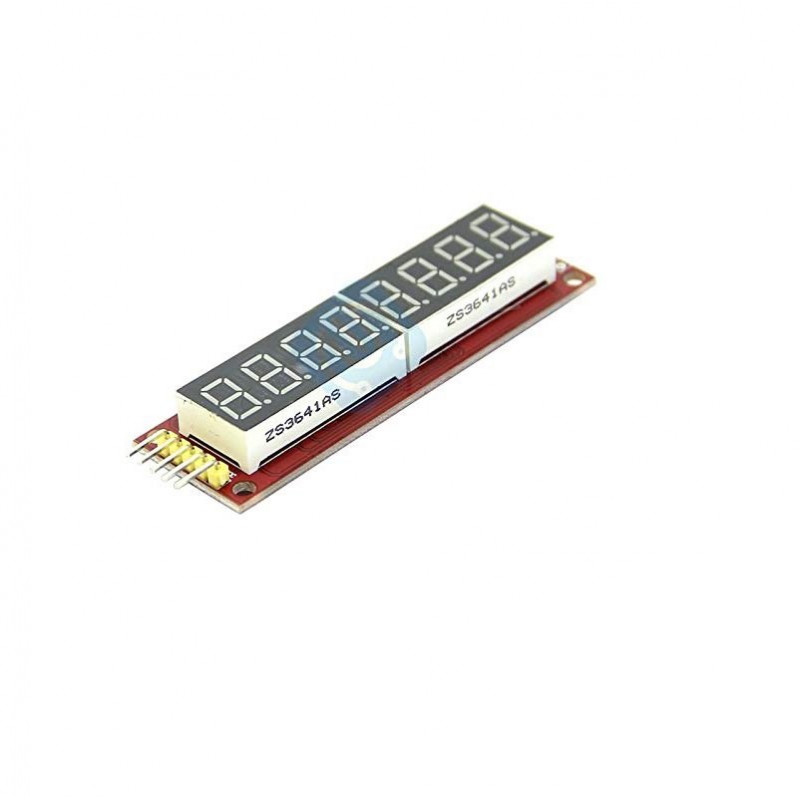

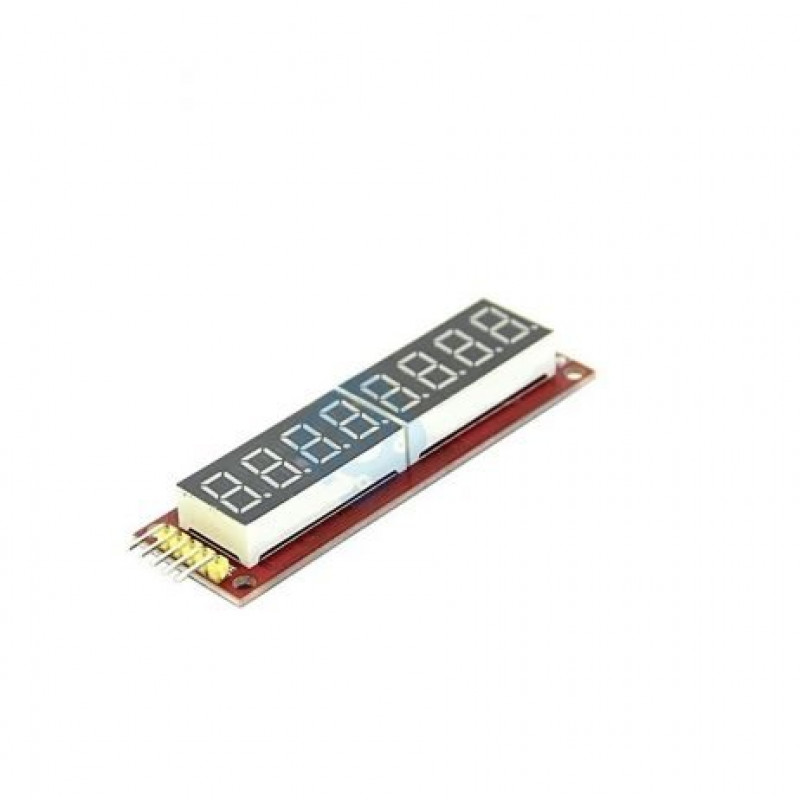

MAX7219 8 Digit Led Tube Display Control Module For Arduino. MAX7219 is an integrated serial input/output common-cathode display driver, which connects your microprocessor to a 7-segment digital LED display with 8 digits.

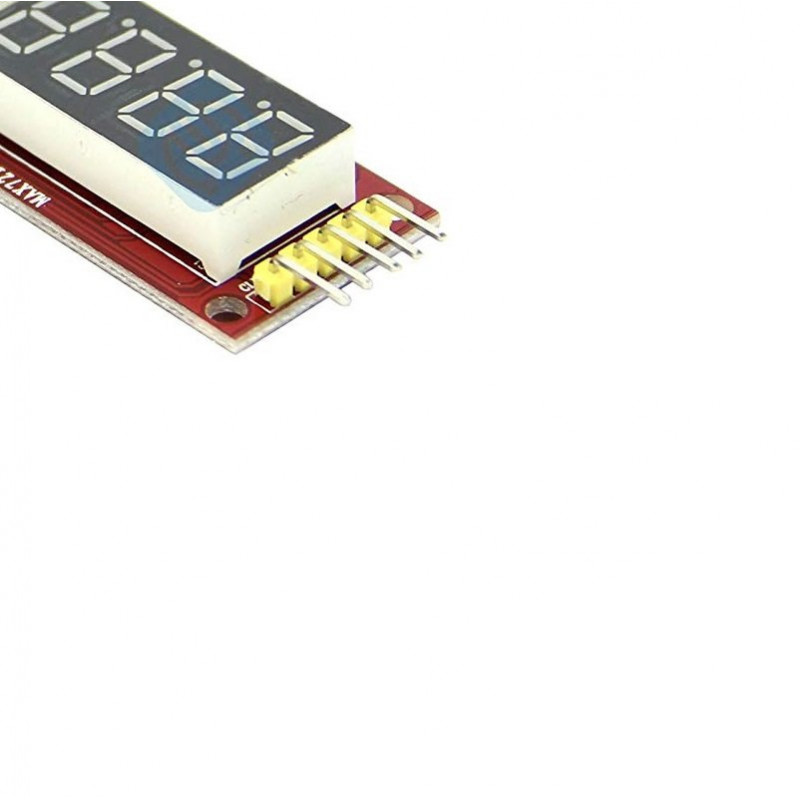

Wiring instructions(for example, it can connect any IO port, modified the Port Definition in the program):
VCC: 5V
GND: GND
DIN: P00
CS: P01
CLK: P02
Note: VCC and GND should not be connected reversed, so as not to burn the chip
Features:
- 100% Brand new and high quality
- MAX7219 digital display control module
- This module is compatible with 5V and 3.3V microcontrollers.
- You can use it for Arduino
- Only three IO ports are used to drive the eight-digit display. MAX7219 supports flicker-free displays as well as cascading displays.
Package Includes:
1 x MAX7219 8 Digit Led Tube Display Control Module
Specifications:
| Material | PCB + Electronic Components |
| Power | 5V |
| Color | Red/Blue(This color means the color of the board, not the LED) |
| Length(mm) | 75 |
| Width(mm) | 25 |
| Height(mm) | 15 |
| Weight(g) | 13 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 232.46 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
MAX7219 8 Digit Led Tube Display Control Module
- Product Code: EC-6760
- Availability: 43
-
Rs.165.00
- (Excluding 18% GST)
