The MRB20200CT using Schottky Barrier technology with a platinum barrier metal. This state–of–the–art device is designed for use in high frequency switching power supplies and converters with up to 48 volt outputs. They block up to 200 volts and offer improved Schottky performance at frequencies from 250 kHz to 5.0 MHz.
200 Volt Blocking Voltage
• Low Forward Voltage Drop
• Guarding for Stress Protection and High dv/dt Capability (10,000 V/µs)
• Dual Diode Construction – Terminals 1 and 3 Must be Connected for Parallel Operation at Full Rating
Mechanical Characteristics:-
• Case: Epoxy, Molded
• Weight: 1.9 grams (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
• Shipped 50 units per plastic tube
• Marking: B20200
Specification:-
| Symbol | Parameter | Value | Units |
| VRRM | Peak Repetitive Reverse Voltage | 200 | V |
| VRWM | Working Peak Reverse Voltage | 200 | V |
| VR | DC Blocking Voltage | 200 | V |
| IFSM | Non-Repetitive Peak Forward Surge Current | 150 | A |
| TJ | Operating Junction Temperature Range | − 65 to +175 | °C |
| Tstg | Storage Temperature Range | − 65 to +150 | °C |
| IF(AV) | Maximum Average Forward Rectified Current | 10, 20 | A |
MBR20200CT Rectifier Data Sheet
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 47.2 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

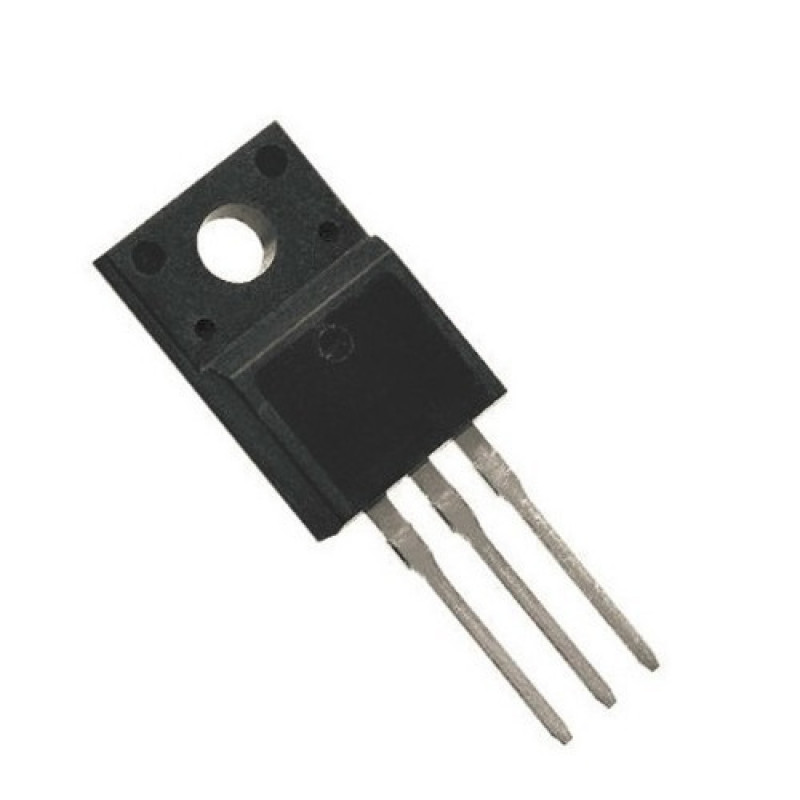

MBR20200CT 200V 20A Schottky Rectifier - Plastic Package
