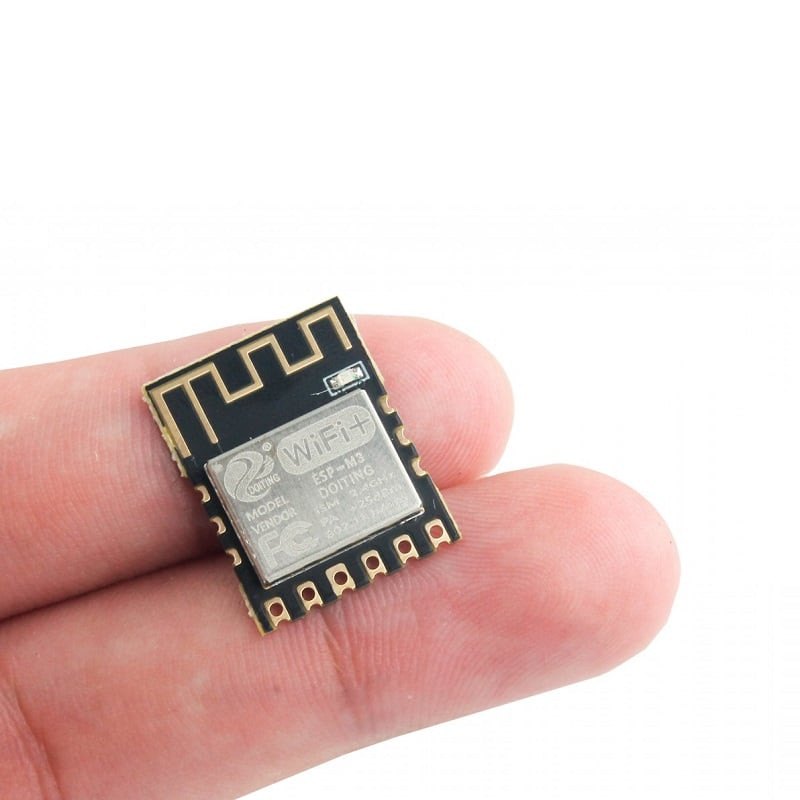

This is Mini Ultra-Small Size ESP- M3 from ESP8285 Serial Wireless WiFi Transmission Module Fully Compatible with ESP8266 AT the Firmware. ESP8285 delivers highly integrated WiFi SoC solution to meet users continuous demands for efficient power usage, compact design and reliable performance in the Internet of Things industry. With the complete and self-contained WiFi networking capabilities, ESP8285 can perform either as a standalone application or as the slave to a host MCU.
TheESP8285 M3WiFiModuleis a highly technological electronic component specially developed to connect robotic or home automation projects to the World Wide Web (Internet), with greater ease and low cost.
It consists of the ESP8285 chip, supporting the most used networks today (802.11 b/g/n), prepared for low-power wireless communication, operating with the Wi-Fi network in 2.4GHz frequency, having support for WPA, PA2PSK and WPS.
In practice, the ESP8285 M3 WiFi Module is used to connect your projects to wireless data networks, where it is possible to exchange information between microcontrollers, sensors or send them to a smartphone, preventing the creation of tangles of wires in your home, in the case of home automation projects.
Its applications include household appliances, home automation, smart sockets, smart lights, Mesh networks, sensor networks, wearable electronics, baby monitors, IP cameras, security ID tags, wireless location awareness, wireless positioning system beacons, industrial wireless control.
Note: Refer to datasheet in the ATTACHMENTS section for more info. regd. the product.
Features:
- Model: ESP8285 ESPM3, AT the Firmware
- Ultrasmall size
- ESP8285 M3 WiFi module
- Tensilica L106 32bit microcontroller
- 16bit ultralow RISC
- Fully Compatible with ESP8266
- Builtin TCP protocol
- 1 channel ADC 10bit high precision
- Supporting the most used networks currently (802.11 b/g/n)
- WPA, PA2PSK and WPS support
- Low consumption

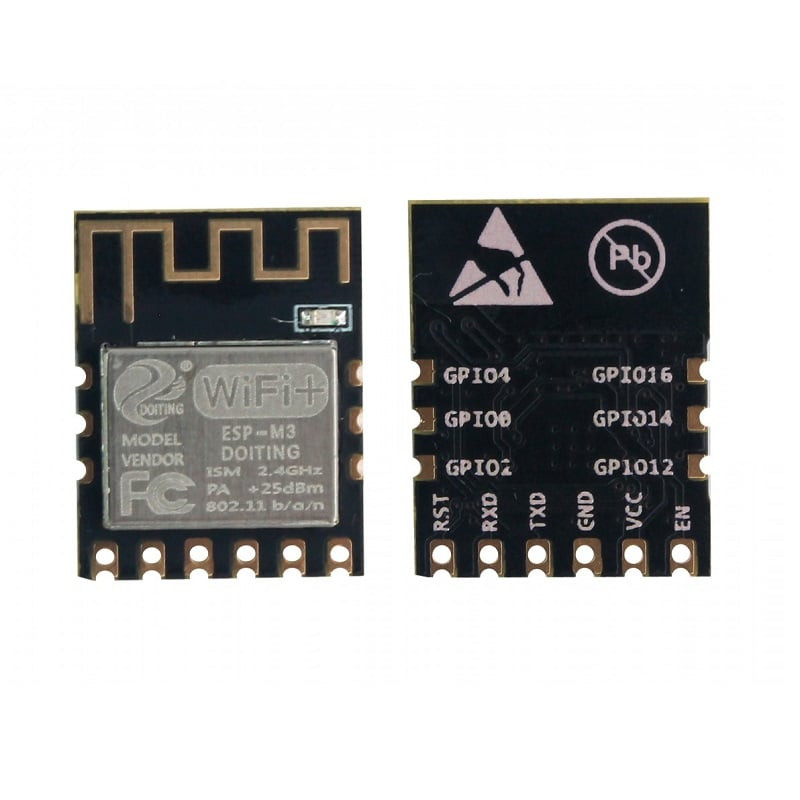

- Easy access to the pins
Package Includes:

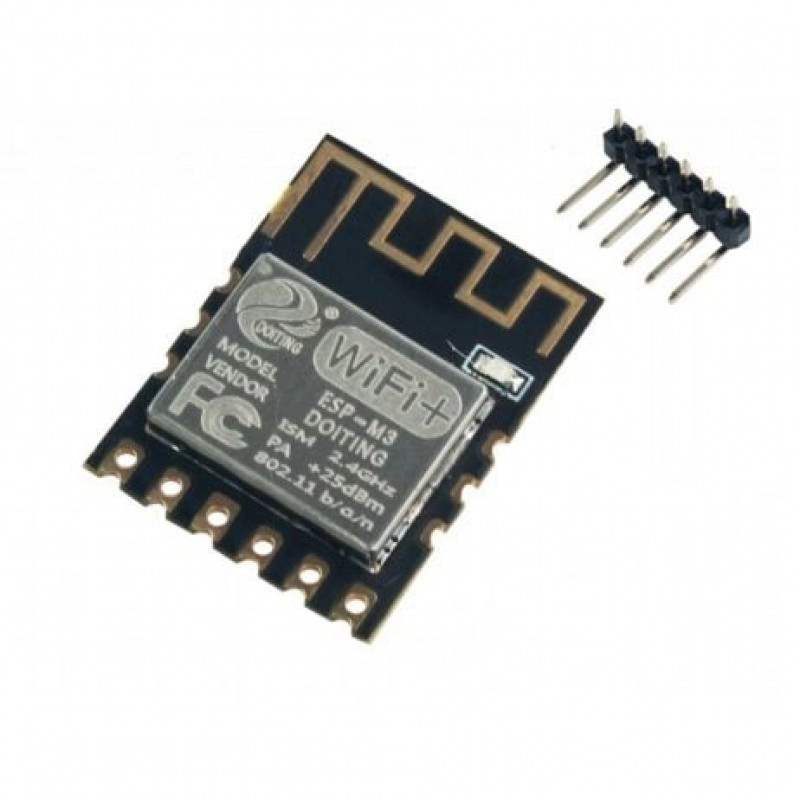

1 x Mini Ultrasmall size ESP M3 from ESP8285 Serial Wireless WiFi Transmission Module Fully Compatible with ESP8266 AT the Firmware
1 x Header Pins.
Attachments :
Download| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Mini Ultra-Small Size ESP- M3 from ESP8285 Serial Wireless WiFi Transmission Module Fully Compatible with ESP8266 AT the Firmware
- Product Code: EC-20326
- Availability: 14
-
Rs.185.00
- (Excluding 18% GST)
