The MOC3023 is an optically Isolated Triac Driver Device, contains a GaAs infrared emitting diode and a light activated silicon bilateral switch, which functions like a triac. This device is designed for interfacing between electronic controls and power triacs to control resistive and inductive loads for 115VAC operations.
Features:-
• Excellent IFT stability—IR emitting diode has low degradation
• High isolation voltage—minimum 5300 VAC RMS
• Underwriters Laboratory (UL) recognized—File #E90700
• Peak blocking voltage: 400V-MOC3023
• VDE recognized (File #94766)
Applications:- Industrial, Motor Drive & Control, Consumer Electronics
Specification:-
| Symbol | Parameter | Value | Unit |
| IF | Forward current | 60 | mA |
| PD | Power dissipation | 100 | mW |
| VR | Reverse Voltage | 3 | V |
| Tstg | Storage temperature range | -40 to +150 | °C |
| TOPR | Operating Temperature | -40 to +85 | °C |
| TSOL | Lead Solder Temperature | 260 for 10 sec | °C |
| ITSM | Peak Repetitive Surge Current (PW = 1 ms, 120 pps) | 1 | A |
| VDRM | Off-State Output Terminal Voltage | 250 | V |
| VISO | Isolation Surge Voltage | 7500 | Vac(pk) |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 22.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

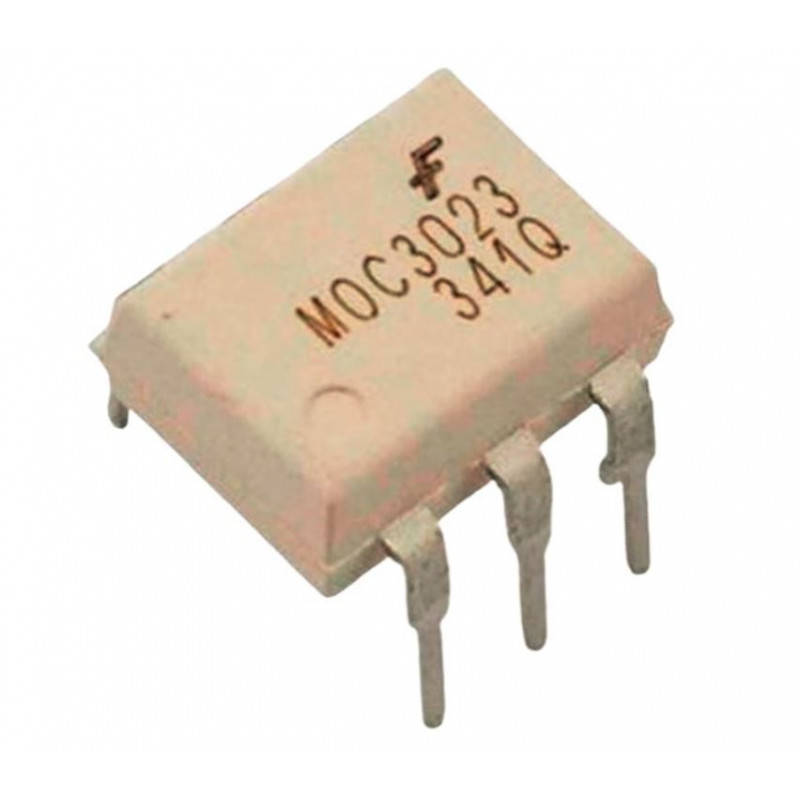

MOC3023 IC - Optocoupler Phototraic Driver IC
- Product Code: EC-1570
- Availability: 1402
-
Rs.19.00
- (Excluding 18% GST)
