The MOC3061 devices consist of gallium arsenide infrared emitting diodes optically coupled to monolithic silicon detectors performing the functions of Zero Voltage Crossing bilateral triac drivers. They are designed for use with a triac in the interface of logic systems to equipment powered from 115/240 Vac lines, such as solid–state relays, industrial controls, motors, solenoids and consumer appliances, etc.
Features:-
• Simplifies Logic Control of 115/240 Vac Power
• Zero Voltage Crossing
• dv/dt of 1500 V/µs Typical, 600 V/µs
Applications:-
• Solenoid/Valve Controls
• Temperature Controls
• Lighting Controls
• E.M. Contactors
• Static Power Switches
• AC Motor Starters
• AC Motor Drives
• Solid State Relays
Specification:-
| Symbol | Parameter | Value | Unit |
| IF | Forward current | 60 | mA |
| PD | Power dissipation | 150 | mW |
| VR | Reverse Voltage | 6 | V |
| Tstg | Storage temperature range | -40 to +150 | °C |
| TOPR | Operating Temperature | -40 to +85 | °C |
| TSOL | Lead Solder Temperature | 260 for 10 sec | °C |
| ITSM | Peak Repetitive Surge Current (PW = 1 ms, 120 pps) | 1 | A |
| VDRM | Off-State Output Terminal Voltage | 600 | V |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 57.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

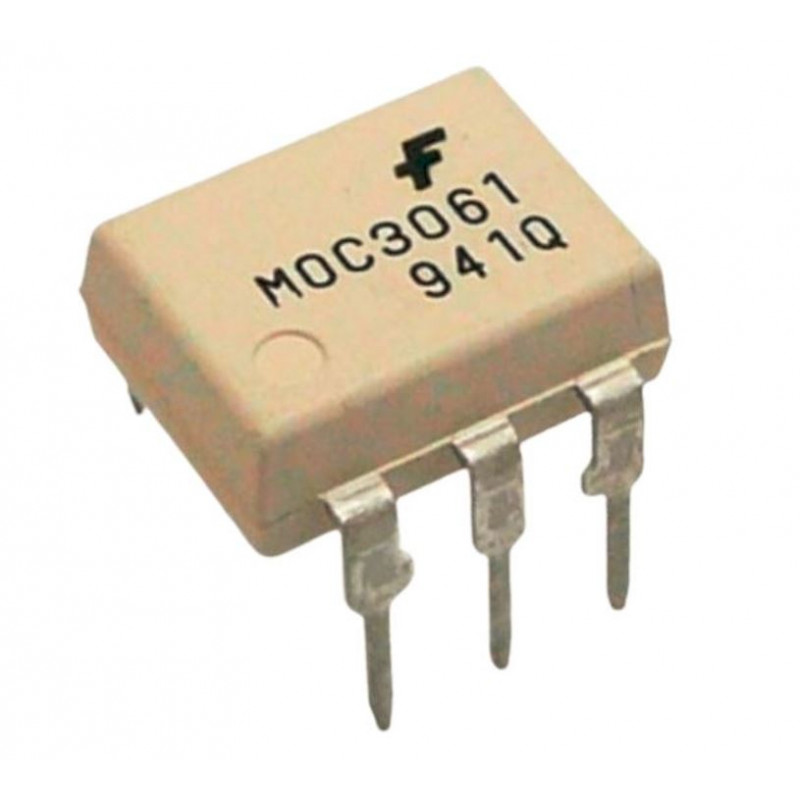

MOC3061 IC - Zero-Cross Optoisolators Triac Drive IC
- Product Code: EC-1944
- Availability: 1626
-
Rs.49.00
- (Excluding 18% GST)
-
-
Wholesale Pricing
Select Quantity Discount Price per piece 1 - 9 0% 49.0000 10 - 24 2% Rs.48.00 25 - 49 5% Rs.46.50 50 - 99 8% Rs.45.00 100+ 11% Rs.43.50
