20N60 is new generation of high voltage MOSFET family that is utilizing an advanced charge balance mechanism for outstanding low on-resistance and lower gate charge performance. This advanced technology has been tailored to minimize conduction loss, provide superior switching performance, and withstand extreme dv/dt rate and higher avalanche energy. It is very suitable for various AC/DC power conversion in switching mode operation for system miniaturization and higher efficiency.
Features:-
- New revolutionary high voltage technology
- Ultra low gate charge
- Periodic avalanche rated
- Extreme dv/dt rated
- High peak current capability
- Improved transconductance
Detailed Specifications:-
| Number of Channels | 1 Channel |
| Transistor Polarity | N-Channel |
| Drain-Source Breakdown Voltage (Vds) | 650V |
| Continuous Drain Current (Id) | 20.7A |
| Drain-Source Resistance (Rds On) | 190mOhms |
| Gate-Source Voltage (Vgs) | 20V |
| Configuration | Single |
| Operating Temperature Range | -55 - 150°C |
| Power Dissipation (Pd) | 208W |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 129.8 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

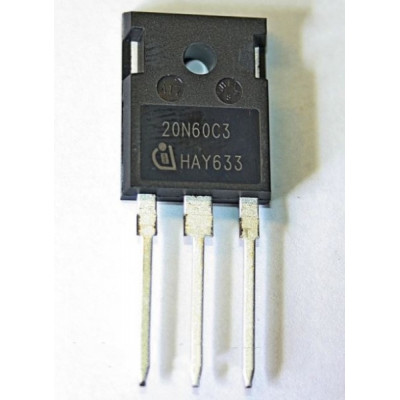

20N60 MOSFET - 650V 20.7A N-Channel Power MOSFET TO-247 Package
- Product Code: EC-0650
- Availability: 2177
-
Rs.110.00
- (Excluding 18% GST)
