If you are wandering to build an E-bike and don't know what will be the best motor controller for you then worry no more, we have got your back.

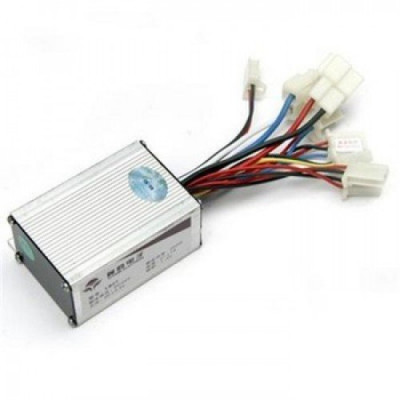

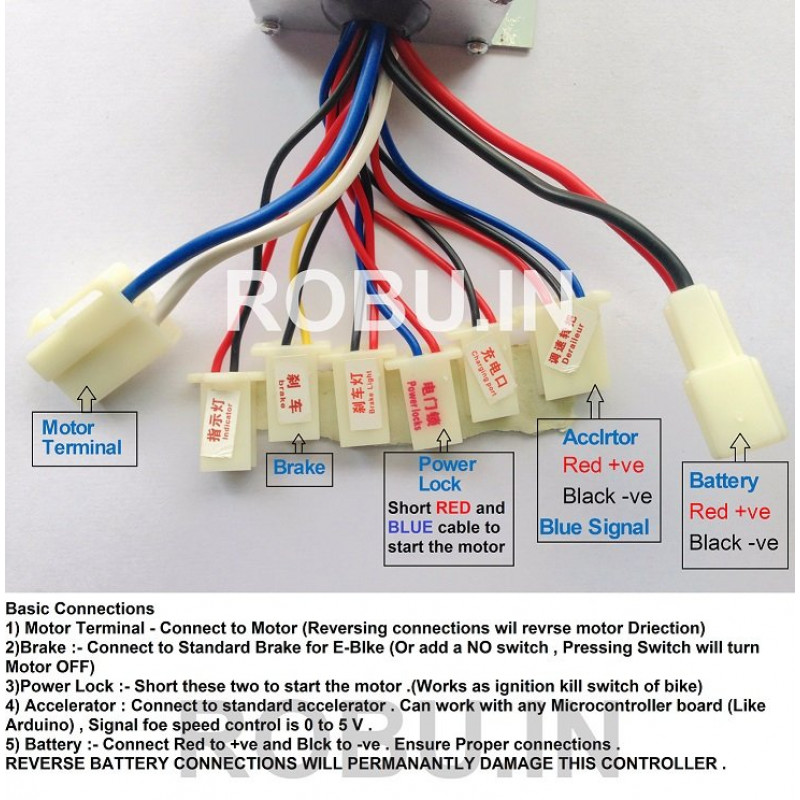

This Motor Controller 24V for MY1016 250W includes attachments for the motor, accelerator, brake, battery, battery charging, brake light, power lock.DC Motors are popularly known as scooter motors or general application motors. It is extremely durable and reliable. Its commonly found in 24V scooters or even small kiddies carts and its also been a proven motor in robotics.
The E-bike controller is the brain of the e-bikes. It is connected to all the other electronic parts such as the battery, motor, and throttle if it exists. It takes all the inputs from all the other components and determines what should be signaled to them in return.
This motor brush controller for Electric bicycles & scooters is compatible with the MY1016 250W DC motor.
Package Includes:
1 x Motor Controller 24V for MY1016 250W
Specifications :-
| Body Material | Aluminium |
| Cable Length (cm) | 10 |
| Compatible for Motor | MY1016 250W |
| Current Limit (A) | 33 |
| Rated Voltage(V) | 24 v DC |
| Under-Voltage Protection (V) | 20 V |
| Weight (gm) | 122 |
| Dimensions in mm (LxWxH) | 83 x 70 x 38 |
| Rated Power (W) | 250 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 666.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Motor Controller 24V for MY1016 250W
- Product Code: EC-8389
- Availability: 92
-
Rs.565.00
- (Excluding 18% GST)
