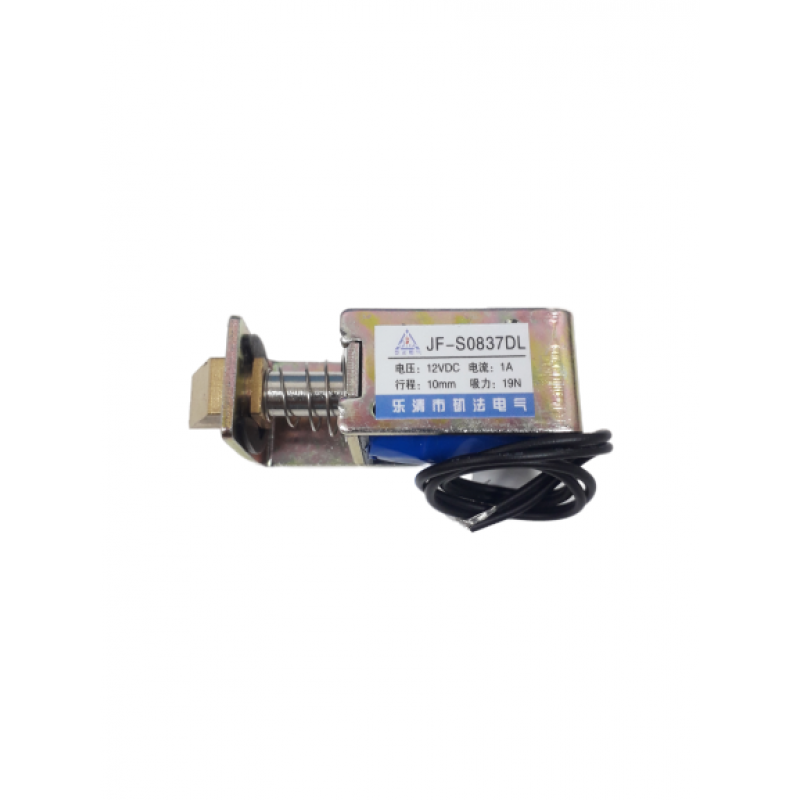

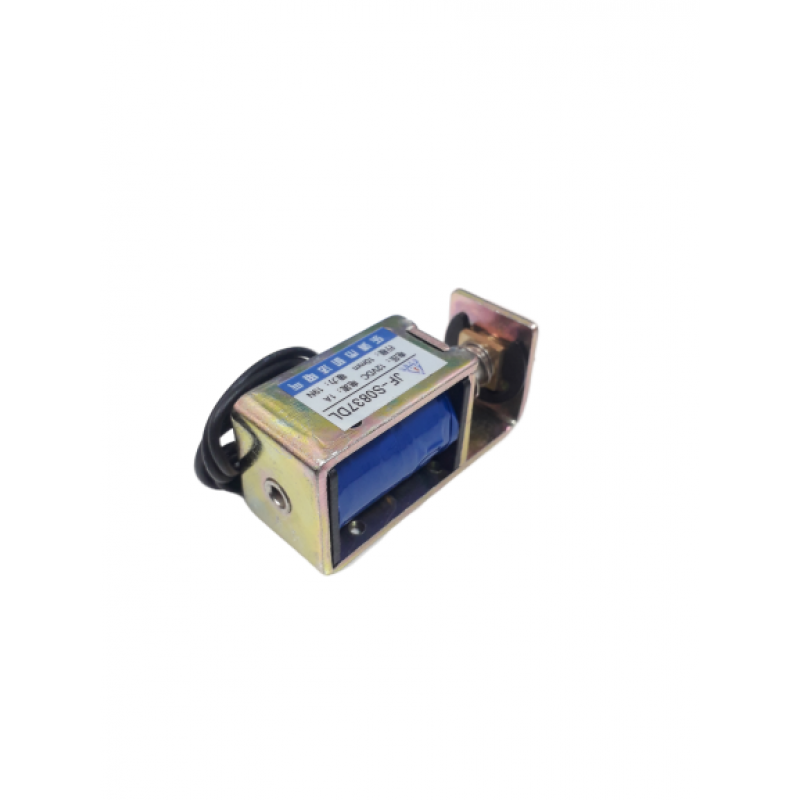

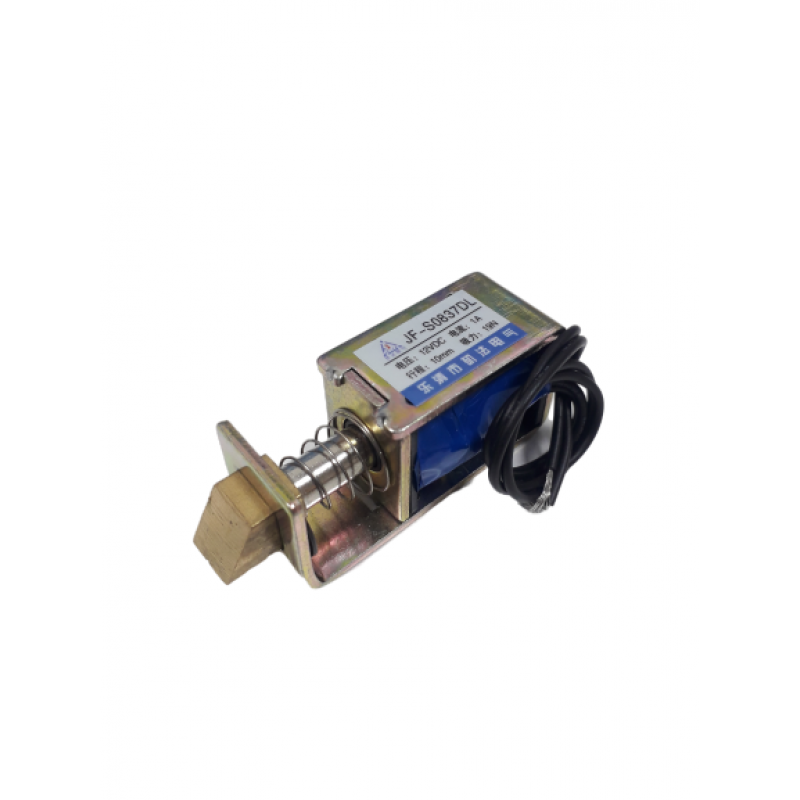

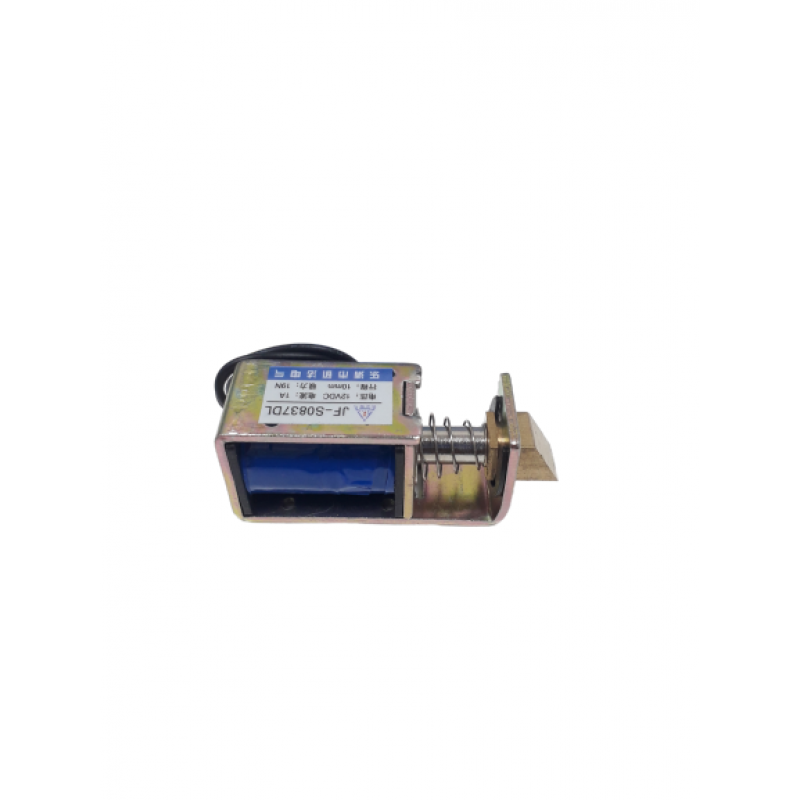

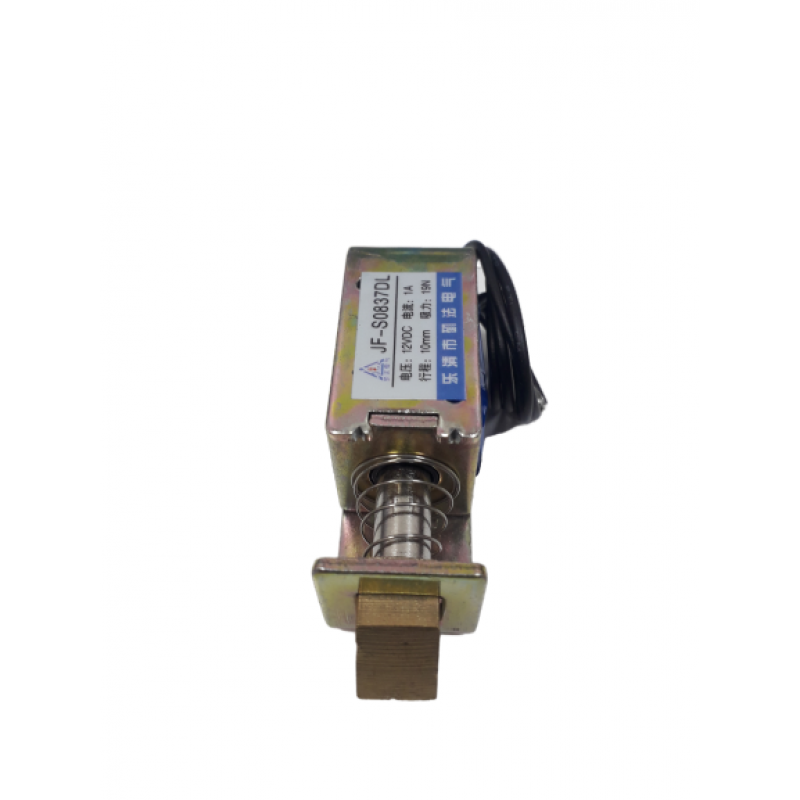

This DC 12V 1A 10mm Stroke 19N Force Open Frame Solenoid Door Lock can be used for locking sell-machine, storage shelf, file cabinet and etc. The hidden way of unlocking can be used for an emergency. The lock works as the circuits disconnects, and it will unlock as the instant power-on. It is steady, durable and energy-saving and had a long lifespan. In the anti-theft and shockproof design, the lock is better than other kinds of locks. After connecting the wires and when the current is available, the electric lock can control the doors opening and closing.

Note: Take care of polarity while making the connection without connector (i.e. Red wire should be connected to the positive and Black wire to negative.)


Features:

  1. Iron Body Material
  2. High quality ultra-compact electric lock.
  3. Rustproof, durable, safe, convenient to use.
  4. Suction which tightly sucks the iron, thus locking the door.
  5. Designed with the open frame type and mount board, high power.
  6. Easy to install for the electric door lock or other automatic door lock systems with the mounting board
  7. Applicable for being installed in the escape door or fire door electronic controlled system.
  8. Adopts the principle of electric magnetism, when the current through the silicon, the electromagnetic lock will achieve a strong.

Package Includes:

1 x DC 12V 1A 10mm Stroke 19N Force Open Frame Solenoid Door Lock


Model

DC 12V 1A Solenoid Door Lock

Rated Operating Voltage (VDC)

12

Stroke

10 mm

Rated Current (mA)

1A

Holding Force (N)

19

Energized forms

Intermittent

Cable Length (cm)

20

Operation Mode

Normally Closed

Dimensions (mm) LxWxH

64 x 26 x 20

Weight(gm)

108


Brand/Manufacturer Generic
Country Of Origin China
