The MUR1660CT 16A, 600V Ultra fast Diodes have a low forward voltage drop and are of planar, silicon nitride passivated, ion-implanted, epitaxial construction. These devices are intended for use as energy steering/clamping diodes and rectifiers in a variety of switching power supplies and other power switching applications. Their low stored charge and ultra fast recovery with soft recovery characteristics minimizes ringing and electrical noise in many power switching circuits, thus reducing power loss in the switching transistor. These state-of-the-art devices are a series designed for use in switching power supplies, inverters and as free wheeling diodes. The MUR1660CT is designed for use in switching power supplies, inverters and as free wheeling diodes, these state–of–the–art devices have the following features:
• Ultra fast 35 and 60 Nanosecond Recovery Times
• 175°C Operating Junction Temperature
• Popular TO–220 Package
• Epoxy Meets UL94, VO @ 1/8″
• High Temperature Glass Passivated Junction
• High Voltage Capability to 600 Volts
• Low Leakage Specified @ 150°C Case Temperature
• Current Derating @ Both Case and Ambient Temperatures
• Low power loss
• High efficiency Low forward voltage
• Super fast recovery times
Mechanical Characteristics:-
• Case: Epoxy, Molded
• Weight: 1.9 grams (approximately)
• Finish: All External Surfaces Corrosion Resistant and Terminal Leads are Readily Solderable
• Lead Temperature for Soldering Purposes: 260°C Max. for 10 Seconds
• Shipped 50 units per plastic tube
• Marking: U1610, U1615, U1620, U1640, U1660
Specification:-
Symbol | Parameter | Value | Units |
VRRM | Peak Repetitive Reverse Voltage | 600 | V |
VRWM | Working Peak Reverse Voltage | 600 | V |
VR | DC Blocking Voltage | 600 | V |
IFSM | Non-Repetitive Peak Forward Surge Current | 80 | A |
TJ | Operating Junction Temperature Range | − 55 to +175 | °C |
Tstg | Storage Temperature Range | − 55 to +175 | °C |
IF(AV) | Maximum Average Forward Rectified Current | 8 | A |
IFRM | Repetitive Peak Surge Current | 20 | A |
Related Document:-
Brand/Manufacturer | Generic |
Country Of Origin | China |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 92.04 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

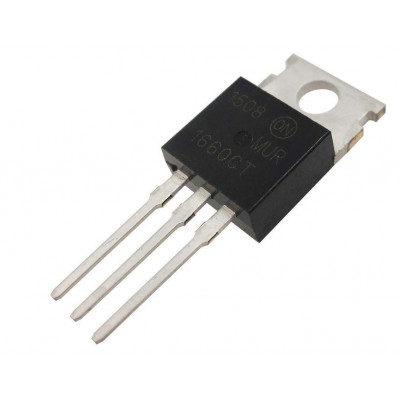

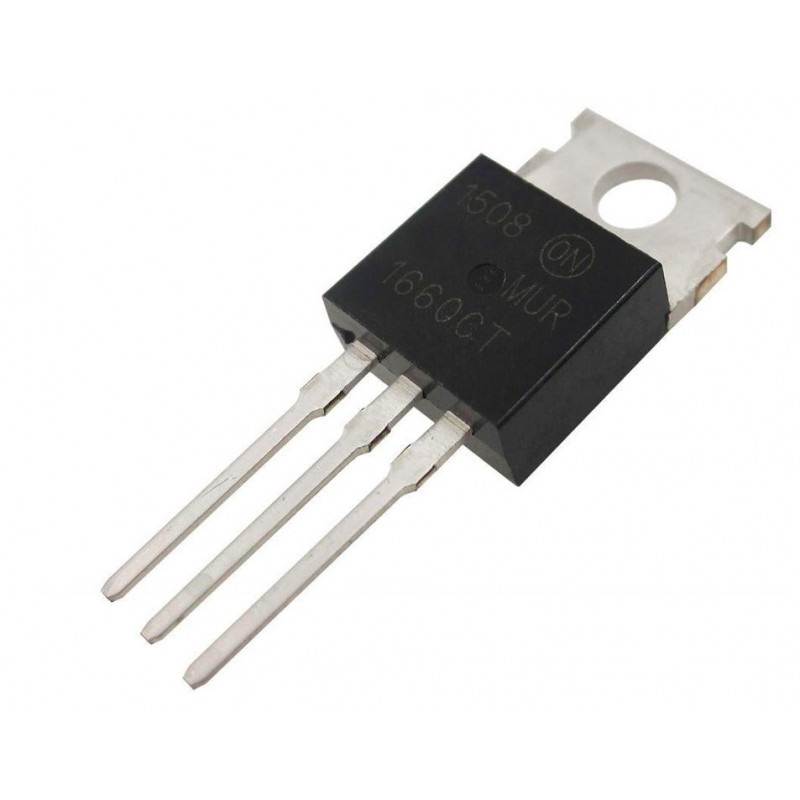

MUR1660CT 600V 16A Ultrafast Power Diode
