MX Right angle PCB mounting BNC socket is used to connect a variety of different coaxial cables. MX BNC connector has a center pin connected to the center cable conductor and a metal tube connected to the outer cable shield. A rotating ring outside the tube locks the cable to any female connector.
Features and Specifications:-
- MX Right angle PCB mounting BNC socket connector with gold plated pin.
- MX BNC connector is placed at the end of coaxial cables in order to link wiring to a piece of electronic equipment, most commonly an audio or visual device.
- After the plug is inserted, it is turned, causing pins in the socket to be pinched into a locking groove on the plug.
- MX BNC connector is used for RF signal connections, for analog and Serial Digital Interface video signals.
- MX BNC connector is an alternative to the MX RCA connector when used for composite video on commercial video devices.
- MX BNC connector has Snug-fit center pin assembly provides tactile feedback.
- MX BNC connector has excellent cable protection and retention.
- MX BNC connector has Precise machined brass parts for outstanding durability.
- MX BNC connector is Easy to install.
Applications:-
What are BNC CONNECTORS & their Applications.??
BNC Connectors are miniature, lightweight connectors. It features two bayonet lugs on the female connector. BNC connectors are ideally suited for cable termination for miniature to subminiature coaxial cables like RG-58, RG-59, RG-179, RG-316.
Applications: RF signal connections, Video signals, Amateur Radio Antennas, Aviation Electronics, Medical equipment, LAN devices, Ethernet Network Cards, Broadcast equipment, Instrumentations and Test Equipment.
1 x MX BNC Female Connector Right Angle PCB Mounting Pin Gold Plated (MX-416)
* Product Images are shown for illustrative purposes only and may differ from actual product.

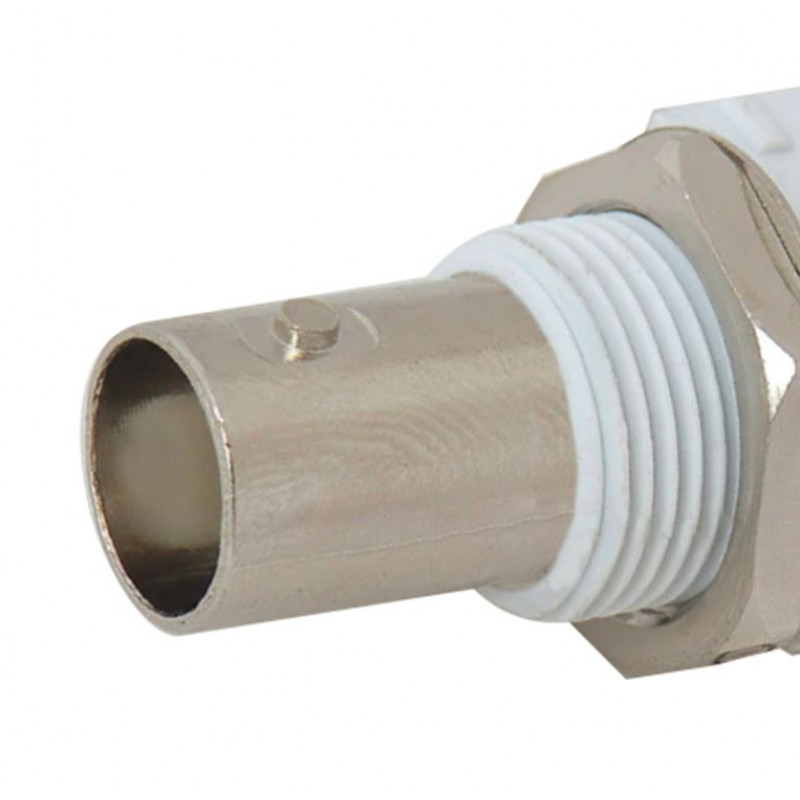

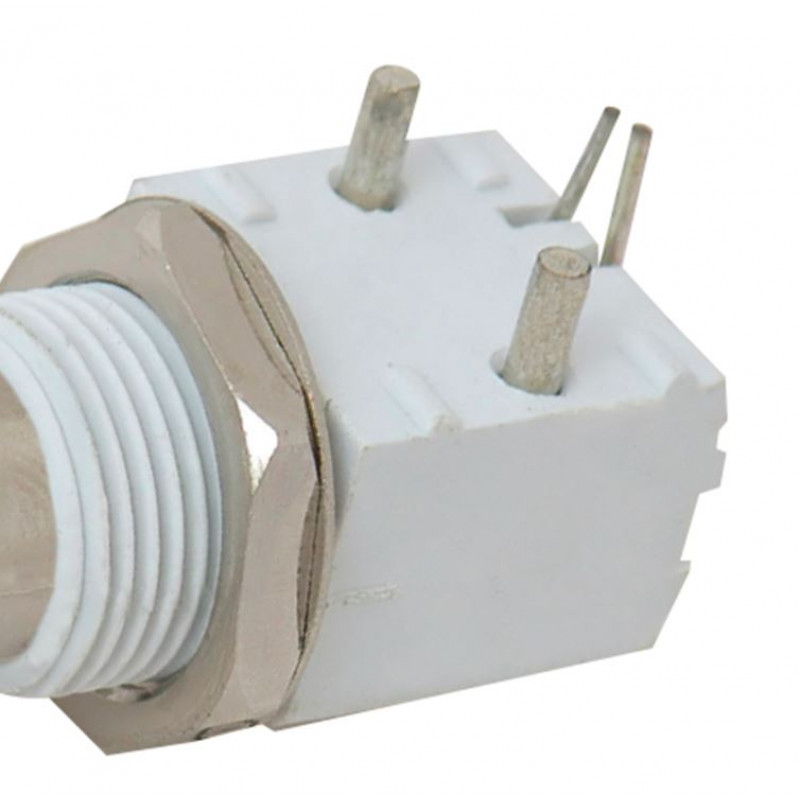

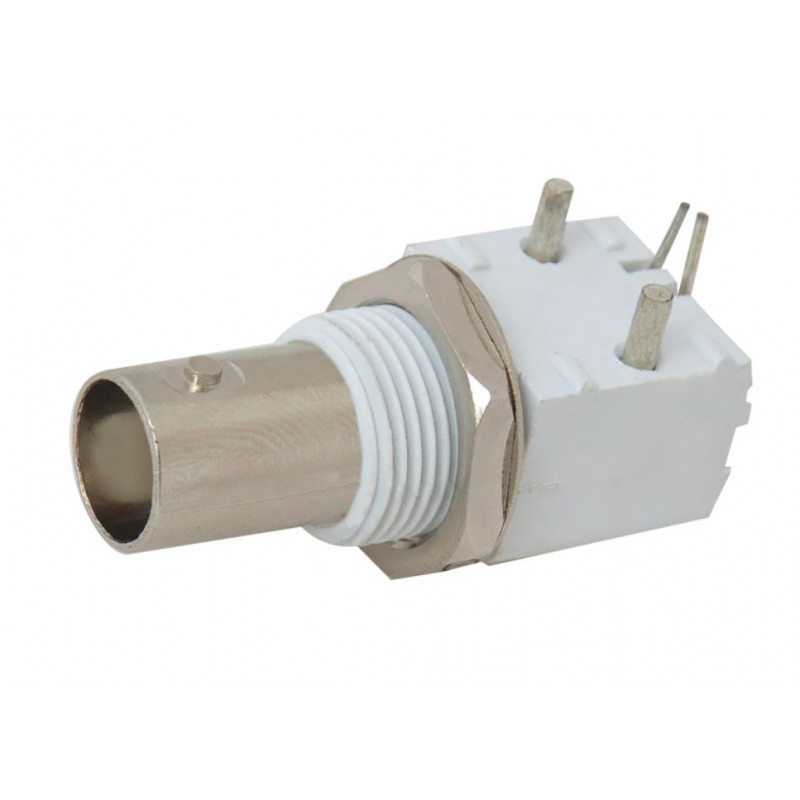

MX BNC Female Connector Right Angle PCB Mounting Pin Gold Plated (MX-416)
- Product Code: EC-12537
- Availability: Out Of Stock
-
Rs.159.00
- (Excluding 18% GST)
-
-
Wholesale Pricing
Select Quantity Discount Price per piece 1 - 4 0% 159.0000 5 - 9 5% Rs.151.05 10 - 24 10% Rs.143.10 25 - 49 15% Rs.135.15 50 - 99 20% Rs.127.20 100 - 499 25% Rs.119.25 500+ 30% Rs.111.30
