MX MCX Connector, miniature connectors are designed for The 50 ohm system with working frequency up to 6GHz, The snap-on mating design offers the user a smaller size compared to SMB/SMC series (30% space reduction). MCX connectors are suitable where Space is limited and weight performance is required. MX MCX Connector is crimping type male connector.
Features and Specifications:-
- MX MCX Connector used for cable RG 174.
- MX MCX Connector is crimping type male connector.
- MX MCX Connector has impedance of 50 Ohm.
- MX MCX Connector has Frequency Range up to 6 GHz.
- MX MCX Connector is fully Gold Plated
- MX MCX Connector is compact in size.
Applications:-
What are MCX Connectors & its Applications?
The MCX uses identical inner contact and insulator dimensions as the SMB, the outer diameter of the plug is .140 inches, which is 30% smaller than the SMB. This series provides designers with options where weight and physical space are limited. MCX provides broadband capability though 6 GHz with a snap on connector design. A range of connectors are available , including printed circuit board and cable connectors.
Features & Benefits:
- Broadband performance with low reflection DC to 6 GHz. Low cost combined with high quality.
- Quick connect/disconnect snap on mating reduces installation time.
- Accommodates a wide range of miniature RG flexible coaxial cables, including semi-rigid cable. This provides customer flexibility in their design and manufacturing.
Applications
- Automotive
- Base Station
- Components
- GPS
- Head End Equipment
- Instrumentation
- PC/LAN
- Radios
- Telecom
- WLAN
- Wireless/Networks Antenna
Package Includes:-
1 x MX MCX Male Plug Connector Crimp Type For RG-174U Gold Plated (MX-2312)
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

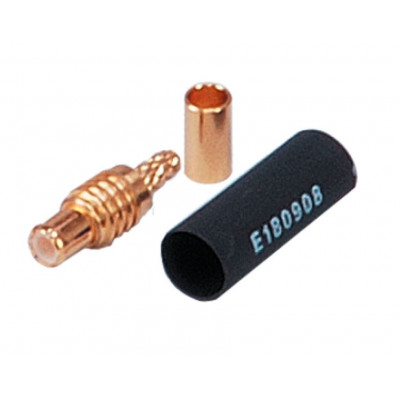

MX MCX Male Plug Connector Crimp Type For RG-174U Gold Plated (MX-2312)
- Product Code: EC-13893
- Availability: 6
-
Rs.529.00
- (Excluding 18% GST)
