This N20 3V 100 Rpm Micro Metal Gear Motor is a small volume, big torsion, all metal gear, durable, not easy to wear DC motor. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
The N20 Micro Gear 3V 100 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. This motor is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 1012mm, and the D-shaped gearbox output shaft is 9mm long and 3mm in diameter. Because of its small size, the motor fits in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20 Micro Gear 100RPM 3V DC Motor (High Torque) has a small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
Features :
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motors output shaft.
Package Includes :
1 x N20 3V 100 Rpm Micro Metal Gear Motor
| Model No. | N20-3V-100 |
| Motor Type | Center Shaft DC Geared Motor |
| Rated Operating Voltage (VDC) | 3 |
| No Load Current (mA) | 0.01 |
| Stall Current (A) | 0.17 |
| Rated Speed (RPM) | 80 |
| Operating Voltage (VDC) | 1.5 ~ 5 |
| Rated Torque(kg-cm) | 0.11 |
| Stall Torque(Kg-Cm) | 1.0 |
| No load Speed (RPM) | 100 |
| Gear Ratio | 50 : 1 |
| Shaft Type | D-type |
| Motor Body Size (Diameter) (mm) | 12 |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 10 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 312.7 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

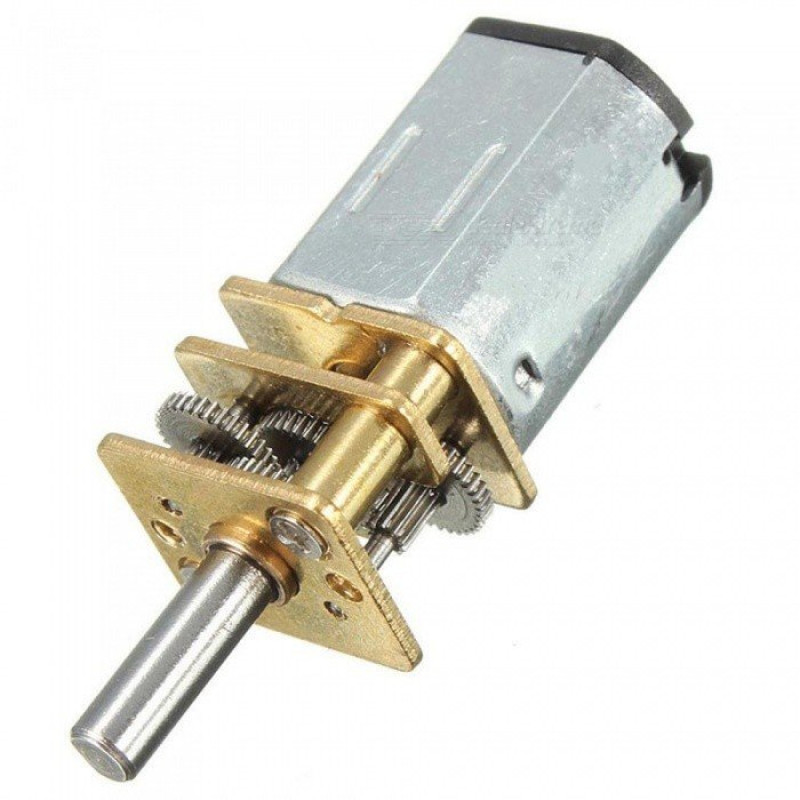

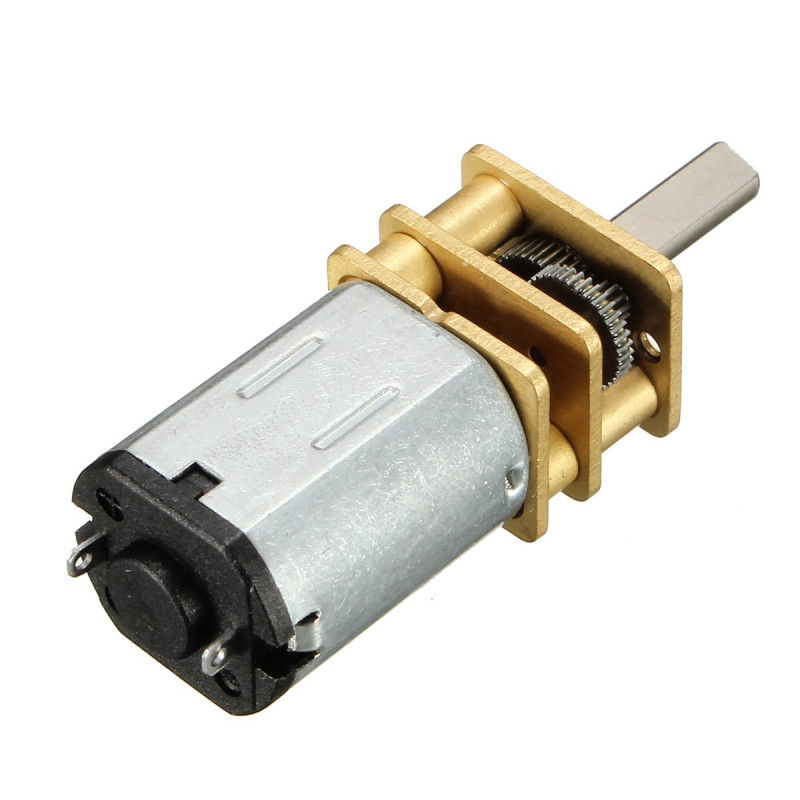

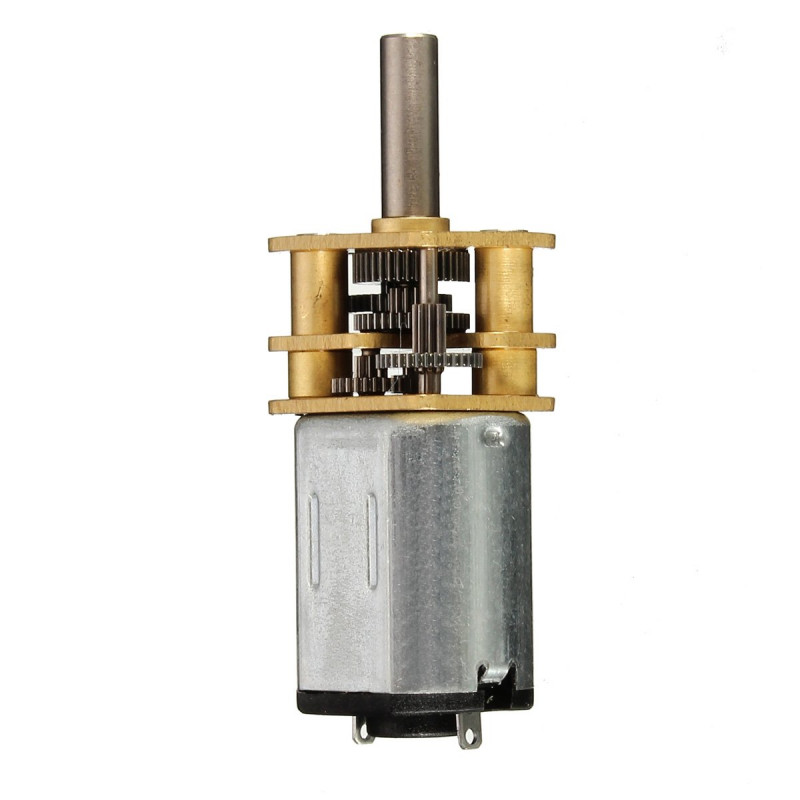

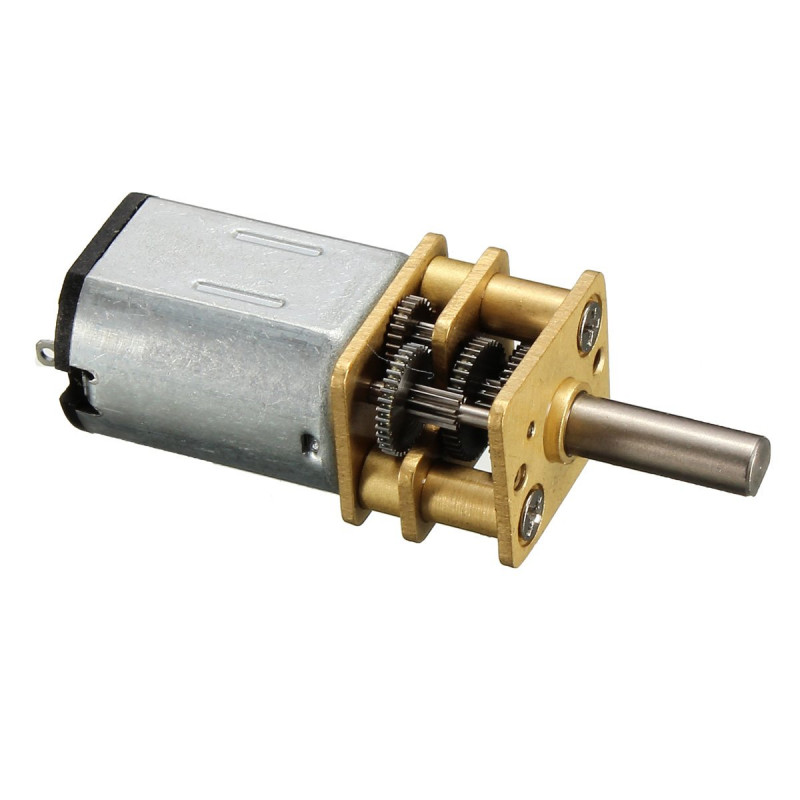

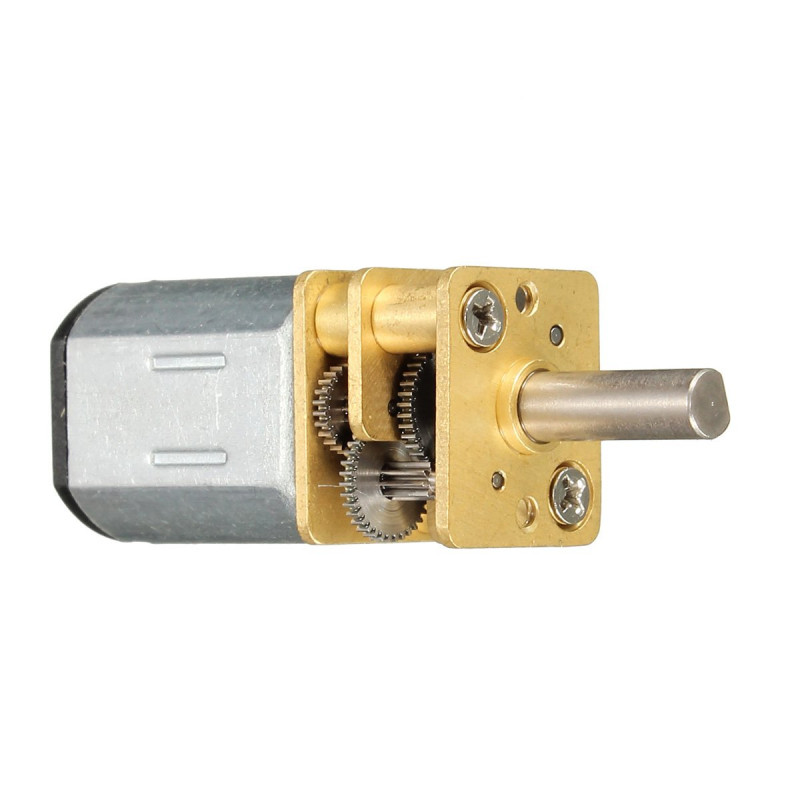

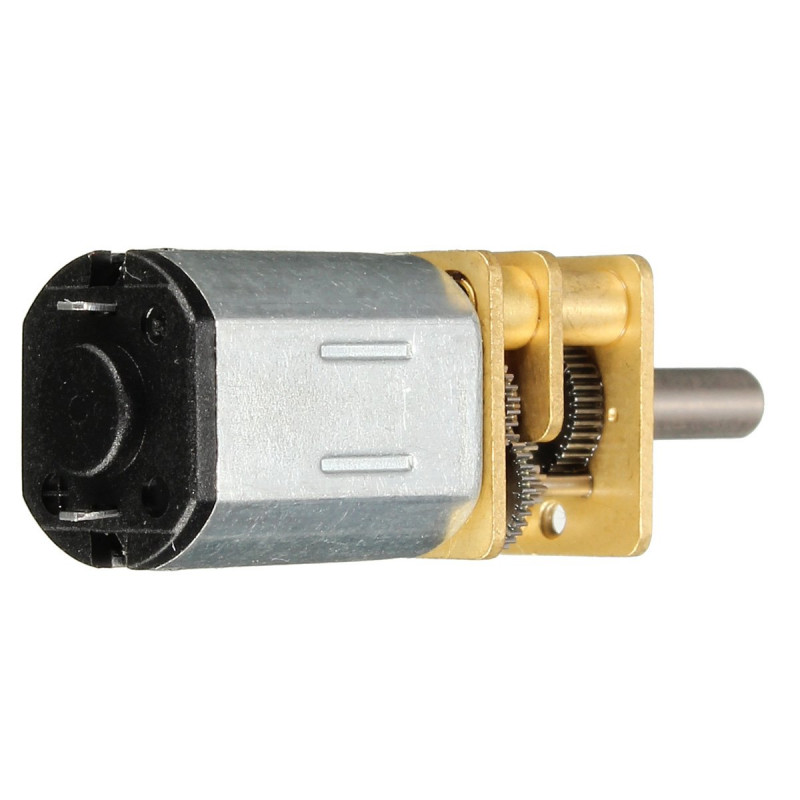

N20 3V 100 RPM Micro Metal Gear Motor
- Product Code: EC-5530
- Availability: 17
-
Rs.237.00
- (Excluding 18% GST)
