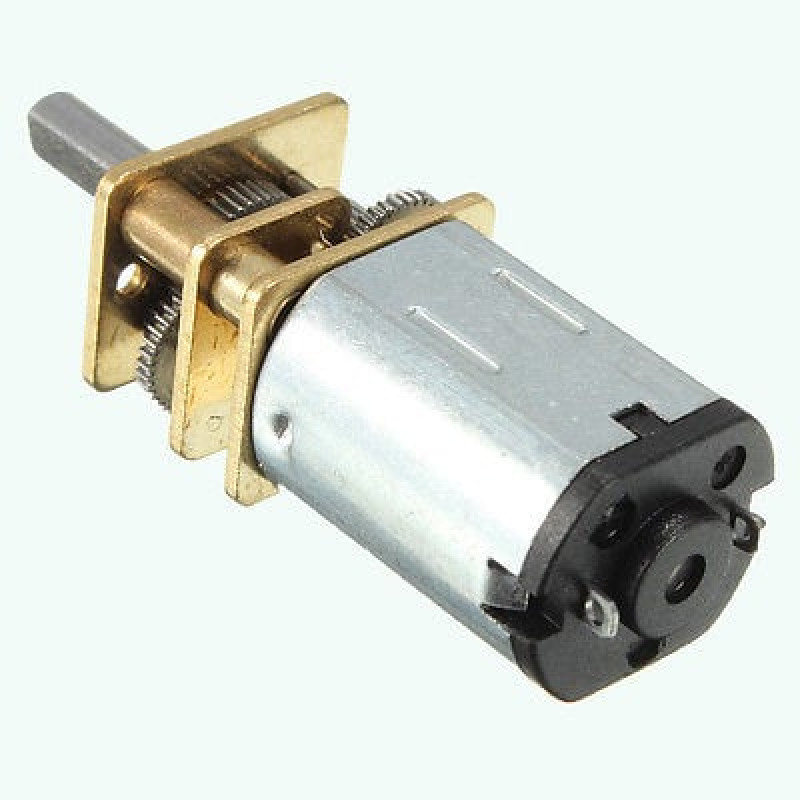

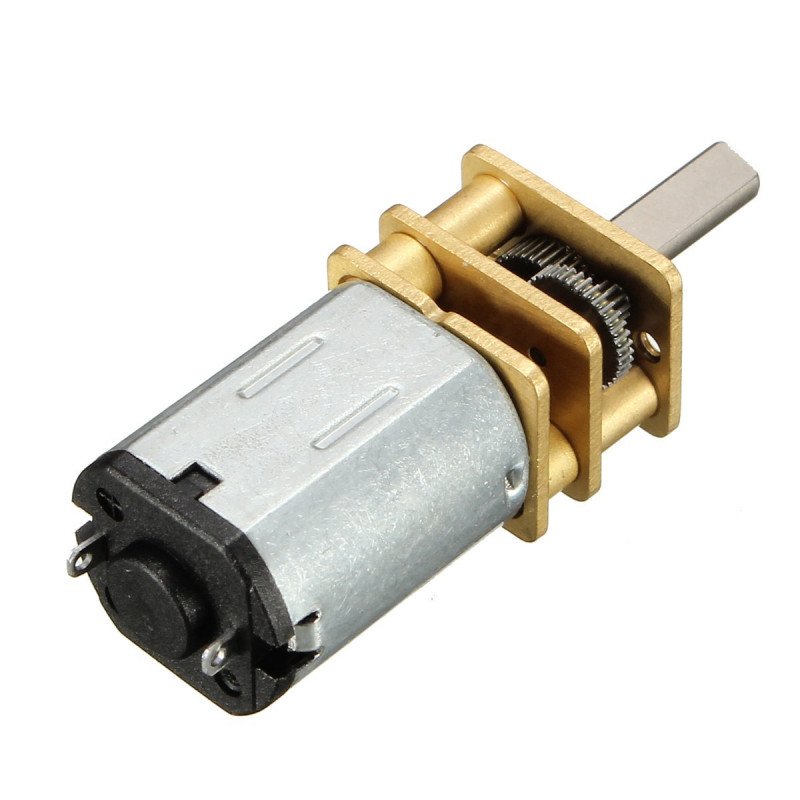

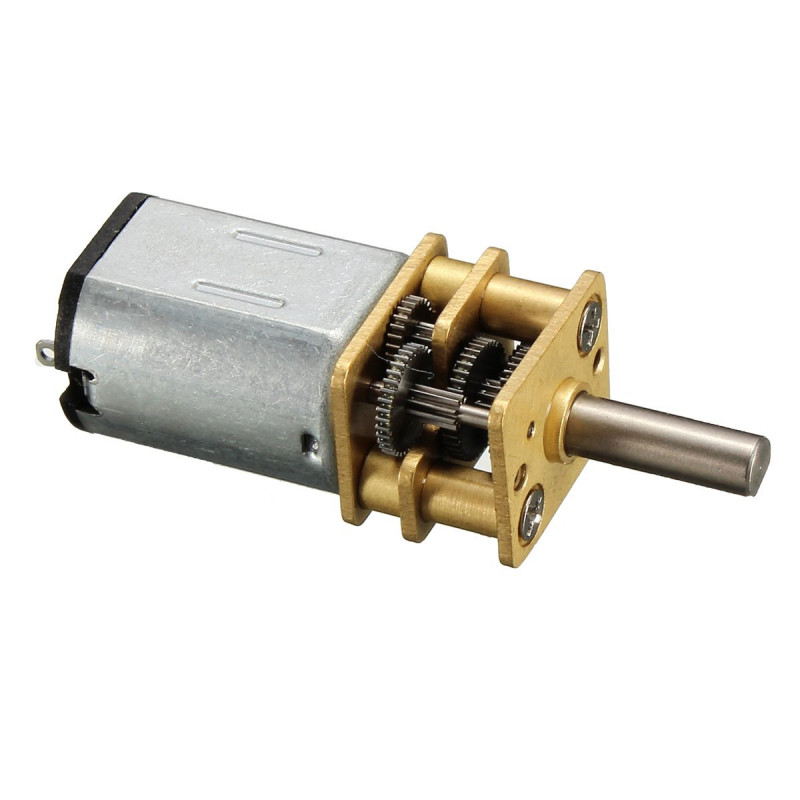

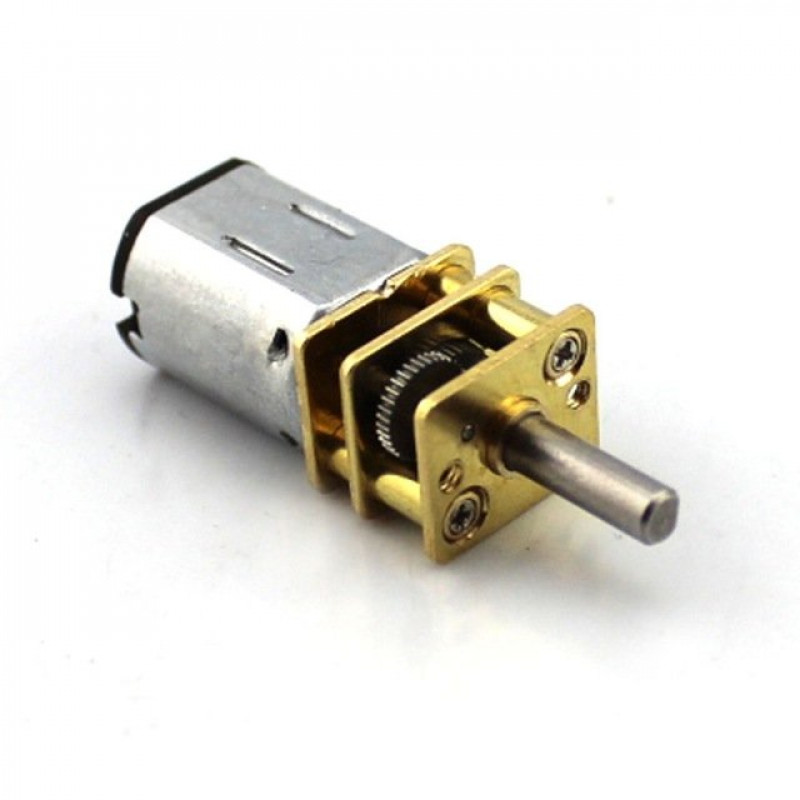

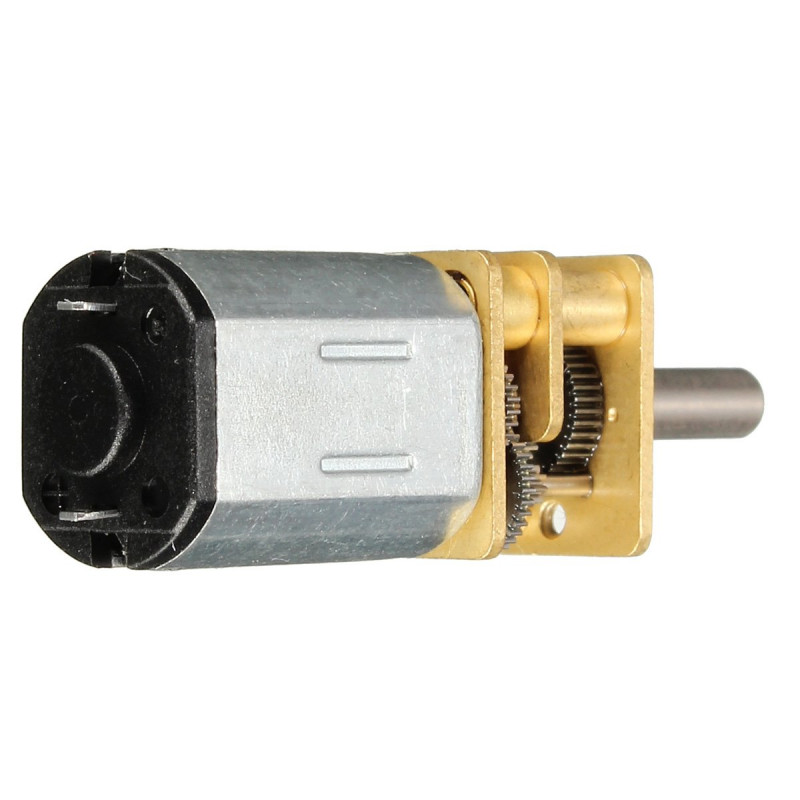

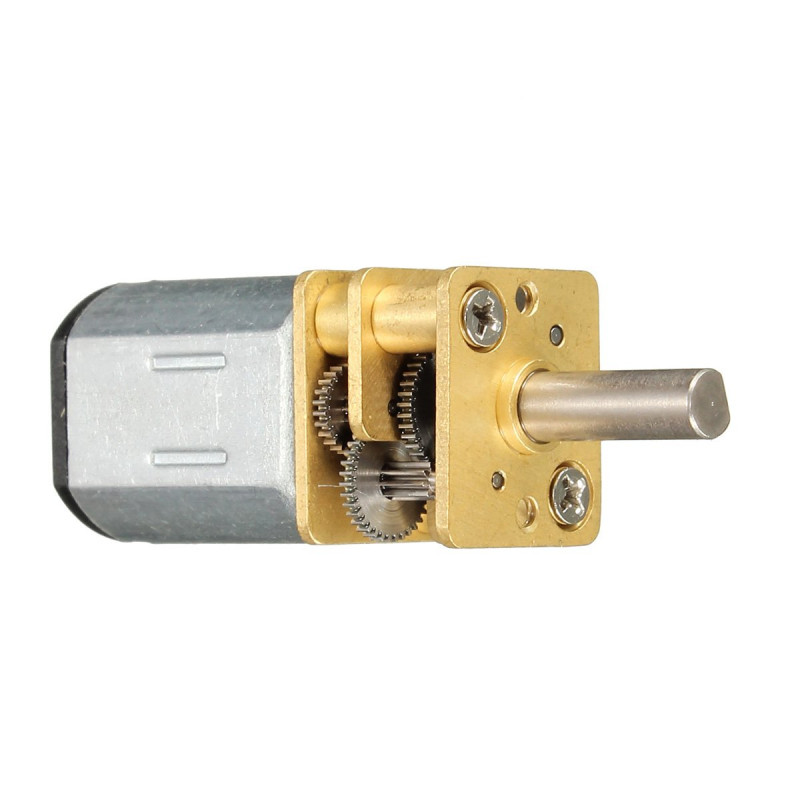

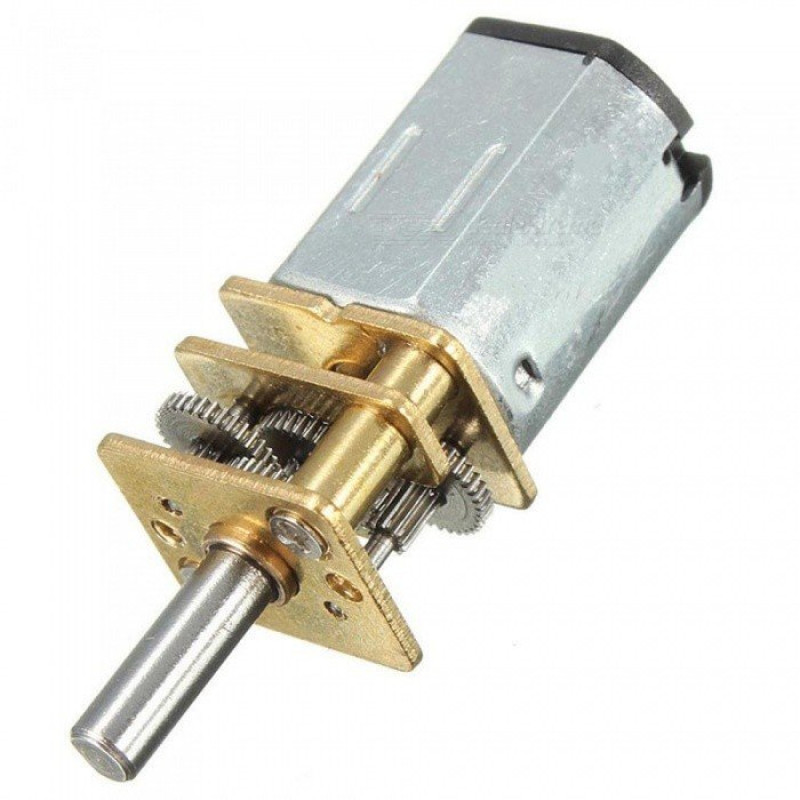

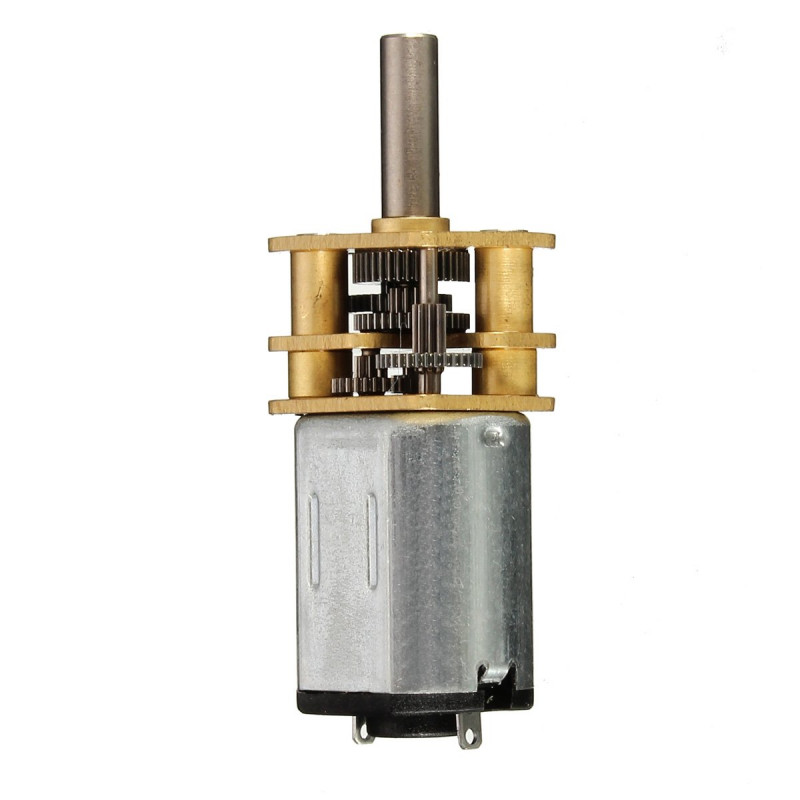

This N20 6V 600 Rpm Micro Metal Gear Motor has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
The N20 Micro Gear 6V 600 RPM DC Motor (High Torque) is lightweight, high torque, and low RPM motor. It is equipped with gearbox assembly so as to increase the torque of the motor. It has a cross-section of 1012mm, and the D-shaped gearbox output shaft is 9mm long and 3mm in diameter. It has a very small size so as fit in complex spaces of small-scale application. One can connect this Micro Gear Motor to wheels to drive them from one place to other while carrying high loads.
This N20 Micro Gear 600RPM 6V DC Motor (High Torque) has small volume, torsion big, all metal gear, durable, not easy to wear. Great replacement for the rusty or damaged DC geared speed reduce motor on the machine. Widely used on Boat, Car, Electric Bicycle, Fan, Home Appliance.
Note: Image of product may differ from Actual Product.
Features :
- This is a DC Mini Metal Gear Motor, ideal for making robots
- Lightweight, high torque and low RPM.
- Fine craftsmanship, durable, not easy to wear.
- With excellent stall characteristics, can climb hills easily.
- You can also easily mount a wheel on the motors output shaft.
Package Includes :
1 x N20 6V 600 Rpm Micro Metal Gear Motor
Specifications:-
| Model No. | N20-6V-600 |
| No Load Current (mA) | 0.04 A |
| Stall Current (A) | 0.67 |
| Rated Torque(kg-cm) | 0.14 |
| Stall Torque(Kg-Cm) | 0.54 |
| Motor Body Size (Diameter) (mm) | 12 |
| Operating Voltage (VDC) | 3 ~ 6 |
| Rated Operating Voltage (VDC) | 6 |
| No load Speed (RPM) | 600 |
| Rated Speed (RPM) | 600 |
| Shaft Type | D-type |
| Shaft Diameter (mm) | 3 |
| Weight (gm) | 12 |
| Output Axial Length (mm) | 10 |
| Fuselage w/o Shaft Length | 26 |
| Screw Size | M3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 305.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
N20 6V 600 Rpm Micro Metal Gear Motor
- Product Code: EC-5543
- Availability: 26
-
Rs.194.00
- (Excluding 18% GST)
