The NE566 Function Generator is a voltage-controlled oscillator of exceptional linearity with buffered square wave and triangle wave outputs. The frequency of oscillation is determined by an external resistor and capacitor and the voltage applied to the control terminal. The oscillator can be programmed over a ten-to-one frequency range by proper selection of an external resistance and modulated over a ten-to-one range by the control voltage, with exceptional linearity.
Features:-
• Wide range of operating voltage (up to 24V; single or dual)
• High linearity of modulation
• Highly stable center frequency (200ppm/°C typical)
• Highly linear triangle wave output
• Frequency programming by means of a resistor or capacitor, voltage or current
• Frequency adjustable over 10-to-1 range with same capacitor
Specification:-
| Symbol | Parameters | Rating | Units |
| V+ | Maximum operating voltage | 26 | V |
| VIN, VC | Input voltage | 3 | VP-P |
| TSTG | Storage temperature range | -65 to +150 | °C |
| TA | Operating ambient temperature range | 0 to +70 | °C |
| PD | Power dissipation | 300 | mW |
Related Document:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 147.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

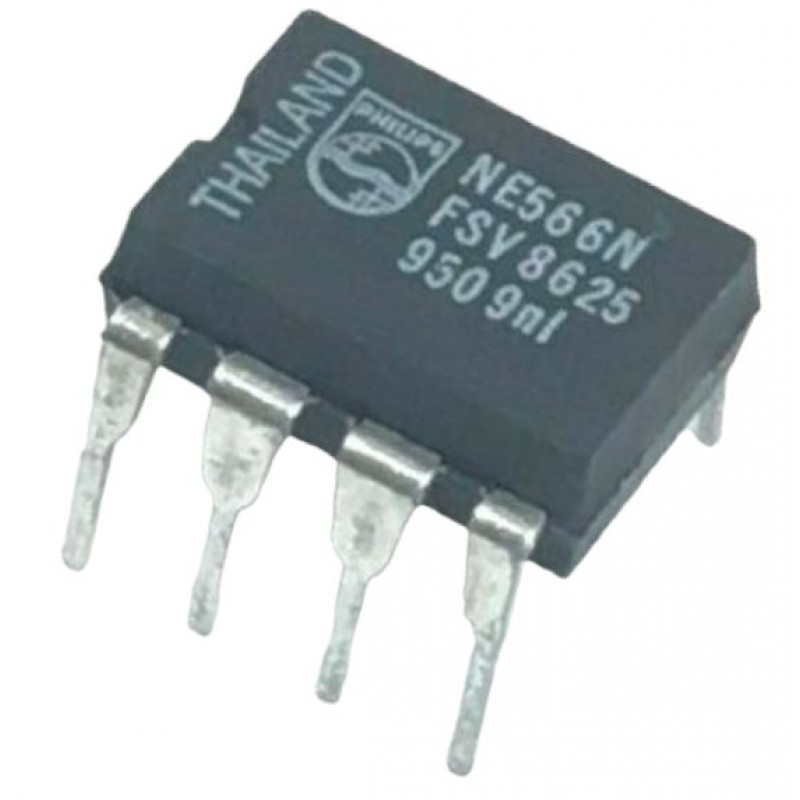

NE566 IC - Function Generator IC
- Product Code: EC-1718
- Availability: 2486
-
Rs.155.00
- (Excluding 18% GST)
