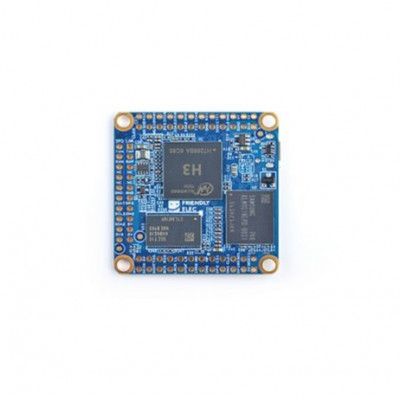

The NanoPi NEO Core as its name tells is an alternative NanoPi NEO that works like a CPU board with male pin-headers. Ithas the same form facotor as the NanoPi NEO,same pin descriptions and works with all the OS images the NanoPi NEO supports. The connectors and ports on the NEO are populated to pin-headers on the NEO Core. Inaddition the NEO Core can have an optional onboard eMMC flash which is preferred by industrial customers.
The NEO Core uses a popular Allwinner H3 Soc and has onboard 256M/512M DDR3 RAM. FriendlyElec offers models with three eMMC options: 8GB/16GB/32G B and one that doesnt have eMMC at all. FriendlyElec migrated FriendlyCore-Xential(based on UbuntuCore) with mainline kernel 4.14 to it. Compared to the NanoPi NEO the NanoPi NEO Core has optimized power circuit design and runs more reliably with much less overheat. NEO Cores CPU temperature didnt exceed 30 degrees in Celsius in our tests in regular situations.
FriendlyElec develops a Mini Shield for NanoPi NEO Core/Core2 which has the same form factor as the RPi 3. When a NanoPi NEO Core is connected to this Mini Shield the whole assembled module can be well fit into a common RPi 3s case.
Features:
- Light weight
- Easy to use
- Plug and play device
- Low power consumption
- Compact design
Packages Includes:
1 x Neo Core LTS-Soldered
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Neo Core LTS-Soldered
- Product Code: EC-21947
- Availability: 1
-
Rs.2813.00
- (Excluding 18% GST)
