The Servo Shield enables OpenMV cameras to control up to 8 servos in parallel. It features the PCA9685 Servo Controller which also supports general-purpose PWM. The OpenMV software and IDE includes scripts for controlling the chip for general-purpose PWM and controlling servos.
Applications:
- Self-driving cars.
- Driving RGB LED
- Support pan-tilt kits.
Features:
- PCA9685 controller.
- 8-channel, 12-bit PWM.
- I2C-bus controlled.
- Internal power-on reset.
- Internal 25MHz oscillator
- Operating supply voltage range of 2.3 V to 5.5 V.
- Low standby current.
Package Includes:
1 x OpenMV Servo Shield
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 0 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

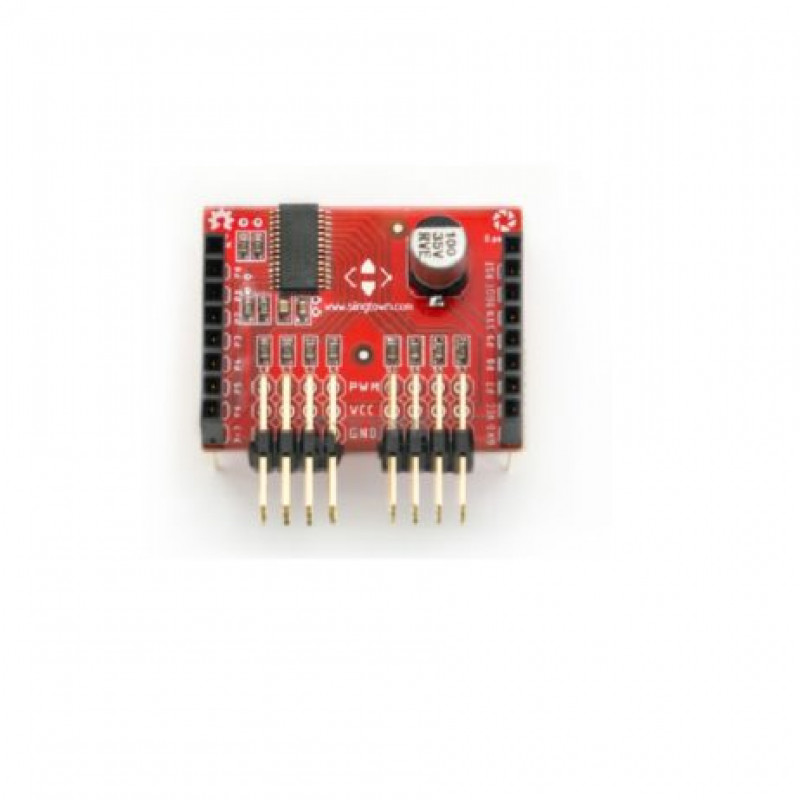

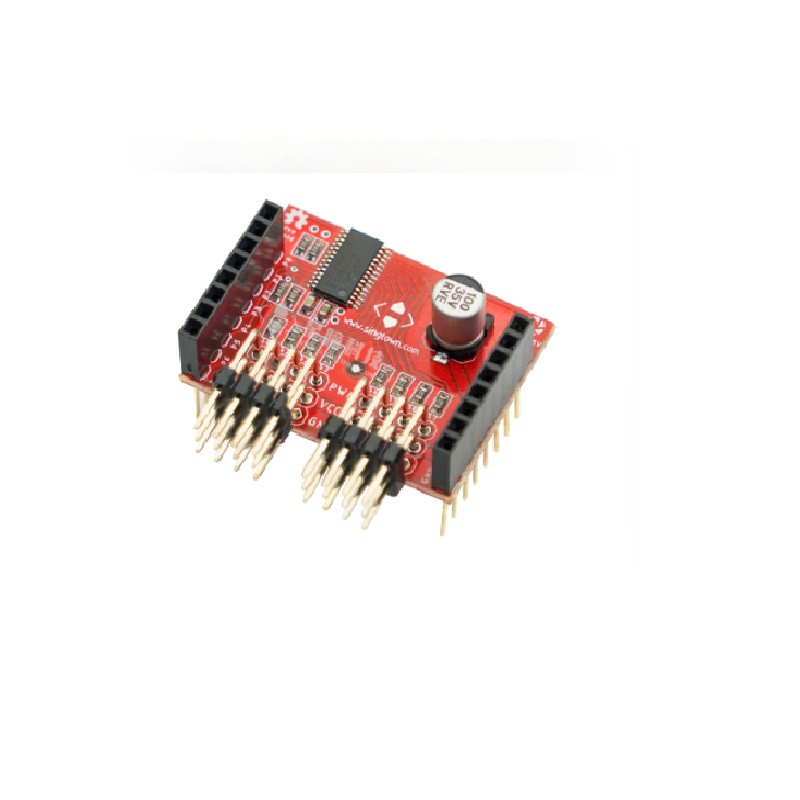

OpenMV Servo Shield
- Product Code: EC-20295
- Availability: 2
-
Rs.1495.00
- (Excluding 18% GST)
