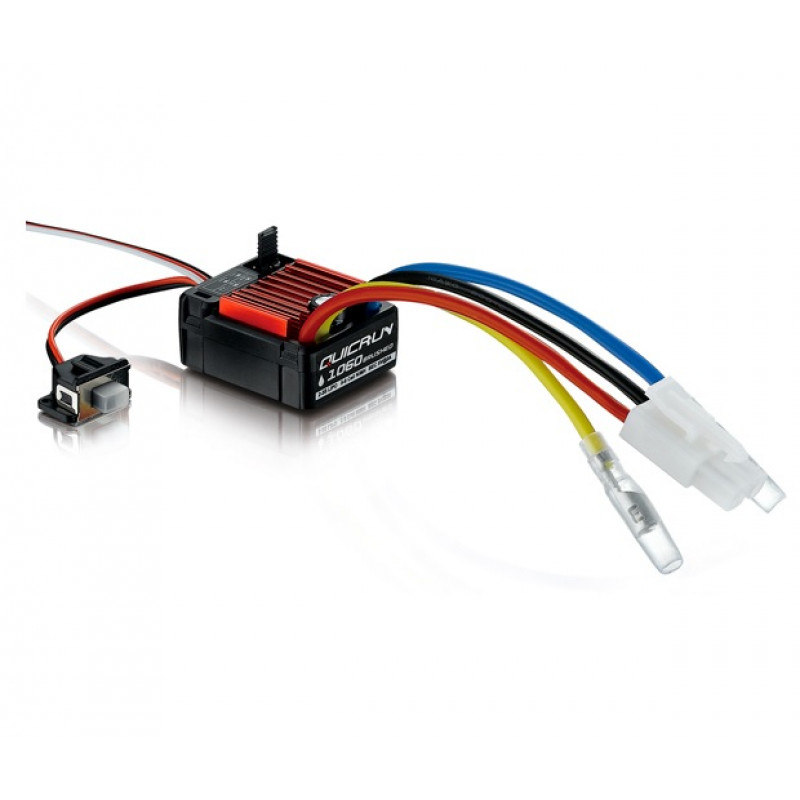

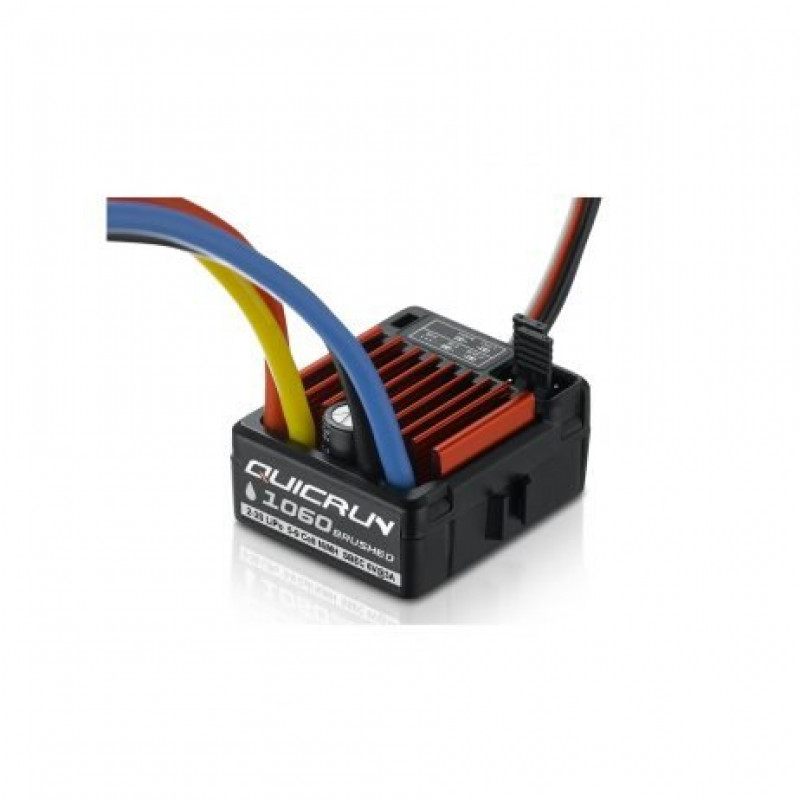

HobbyWing QuicRun 1/10 Waterproof Brushed 60A Electronic Speed Controller ESC 1625

Features:

1. For: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
2. Water-proof and dust-proof, suitable for all-weather condition races.
3. Small size with built-in capacitor module.
4. Fwd/Rev/Br running mode fits for various vehicles (Fwd =Forward, Br=Brake, Rev=Reverse).
5. Great current endurance capability.
6. Great built-in BEC output capacity.
7. Automatic throttle range calibration, easy to use.

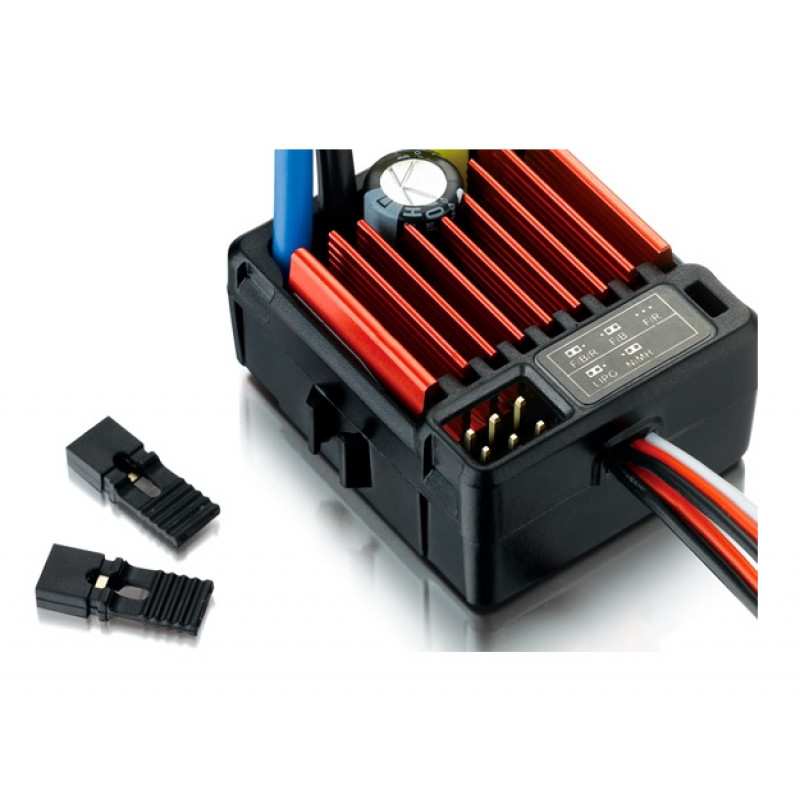

8. Easy to set the ESC parameters with jumpers.
9. Multiple protections: Low voltage cut-off protection for battery / Over-heat protection / Throttle signal loss protection.

Specification:

1. Fwd. Cont. / Peak Current: 60A /360A
2. Rev. Cont. / Peak Current: 30A /180A
3. Cars Applicable: 1/10: Touring Car, Buggy, Short Course Truck, Monster, Truggy, Rock Crawler and Tank
4. Motor Limit: *WP-860-DUAL-BRUSHED has two outputs to drive 2 motors. When driving 2 motors simultaneously, the Turns of the motors need to be increased.
5. 2S Lipo or 6 NiMH
   1. 540 or 550 Size Motor: 12T Or RPM<30000 @7.2V
6. 3S Lipo or 9 NiMH
   1. 540 or 550 Size Motor: 18T Or RPM< 20000 @7.2V
7. 4S Lipo or 12 NiMH
   1. Not Available
8. Cooling Fan: Without cooling fan
9. Running Modes: Forward/Reverse/Brake, Forward/Brake, Forward/Reverse

Package Includes :

1 x Original HobbyWing QuicRun 1625 Brushed Electronic Speed Controller

Specifications :-

Model	Wp-1625-BRUSHED
Input Voltage Range	2-3S Lipo or 5-9 NiMH
Resistance ()	Fwd 0.001, Rev 0.002
BEC	3A/5V (Linear Mode)
PWM Frequency	1KHz
Forward Cont	Peak Current: 60A /360A
Reverse Cont	Peak Current: 30A /180A
