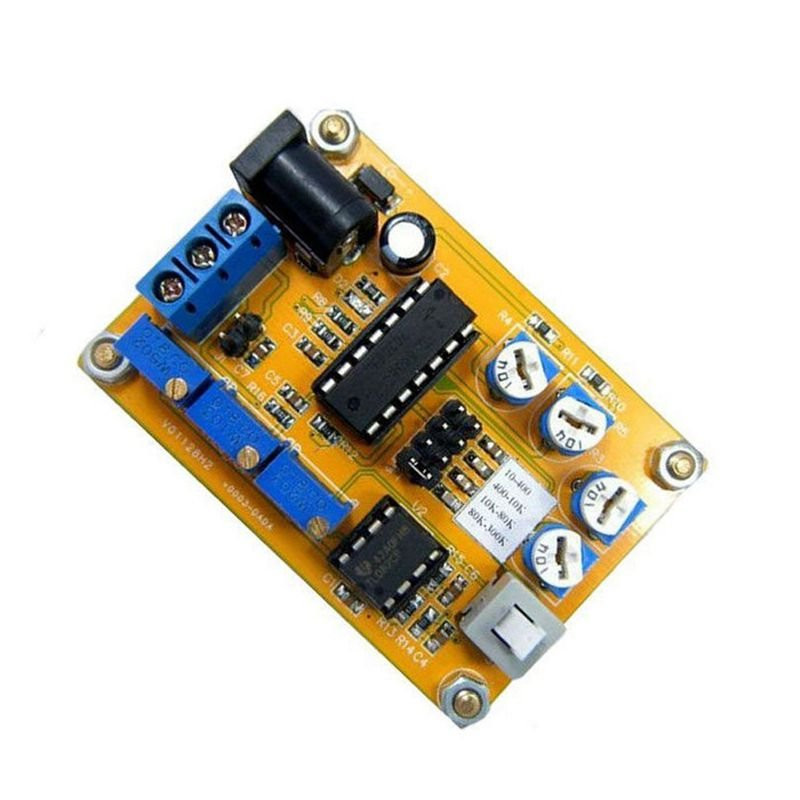

The C32 ICL8038 Sine/Delta/Square Wave Signal Generator Module is anIntegrated circuitbyIntersildesigned to generate Sine, Squareand Triangular/Delta waveforms. It is based on bipolar monolithic technology involvingSchottky barrier diodes. The ICL8038 has avoltage-controlled oscillator which is capable of producing frequencies between a millihertz and 100kHz.

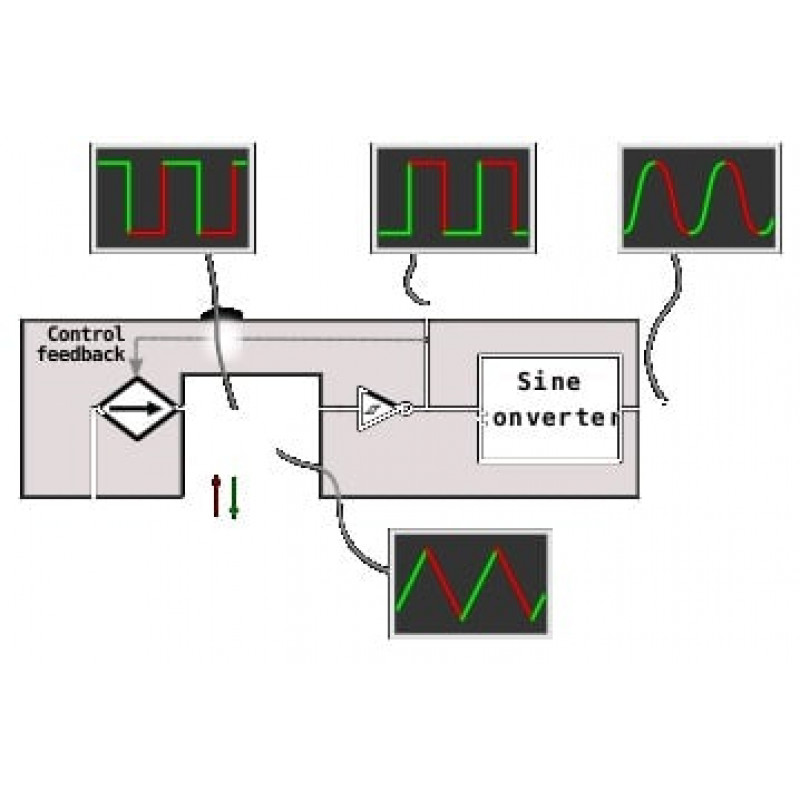

Triangular waves were produced by charging and discharging a capacitor with constant currents. The triangular waves were converted to sine waves involving a non-linear network.The output frequency is set either byresistorsor the external control voltage.The temperature drift can be optimized to less than 250ppm/C by combining it with aPLL.

Specifications and Features:

  1. Working voltage: + 12V ~ + 25V
  2. Can output triangular wave, a rectangular wave, and sine wave.
  3. Frequency range: 10HZ ~ 300kHz
  4. Low distortion sine wave: 1%
  5. Duty ratio range: 2% to 98%
  6. Low-temperature drift: 50ppm /
  7. Triangular wave output linearity: 0.1%


Package Includes:

1 xC32 ICL8038 Sine/Delta/Square Wave Signal Generator Module 10-300kHz



Specifications :-

Operating Voltage (VDC)

12 ~ 25

Frequency Range

10Hz ~ 300kHz

Distortion

1%

Duty Ratio

2% to 98%

Temperature Drift

50ppm/

Triangular Wave Output Linearity

0.1%

Length (mm)

63

Width (mm)

44

Height (mm)

16

Weight (gm)

28

Shipment Weight

0.03 kg

Shipment Dimensions

7 5 3 cm

Brand/Manufacturer
Country Of Origin
Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP Rs. 612.42 (Inclusive of all Taxes)
