C1815 is a three layer NPN device within the working range, the collector current IC is a function of the base current IB, a change in the base current giving a corresponding amplified change in the collector current for a given collector emitter voltage VCE.
Features:-
• Low saturation voltage
• Simple drive requirements
• High safe operating area
• For low distortion complementary designs
• Easy to carry and handle
Detailed Specifications:-
| Transistor Polarity | NPN |
| Collector−Emitter Voltage (VCEO) | 50V |
| Collector−Base Voltage (VCBO) | 60V |
| Continuous Collector Current (Ic) | 150mA |
| Emitter Base Voltage (VEBO) | 5V |
| Operating Temperature Range | -55 - 150°C |
| DC Current Gain (hFE) | 130-400 |
| Transition Frequency (fT) | 80MHz |
Related Documents:-
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 23.6 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

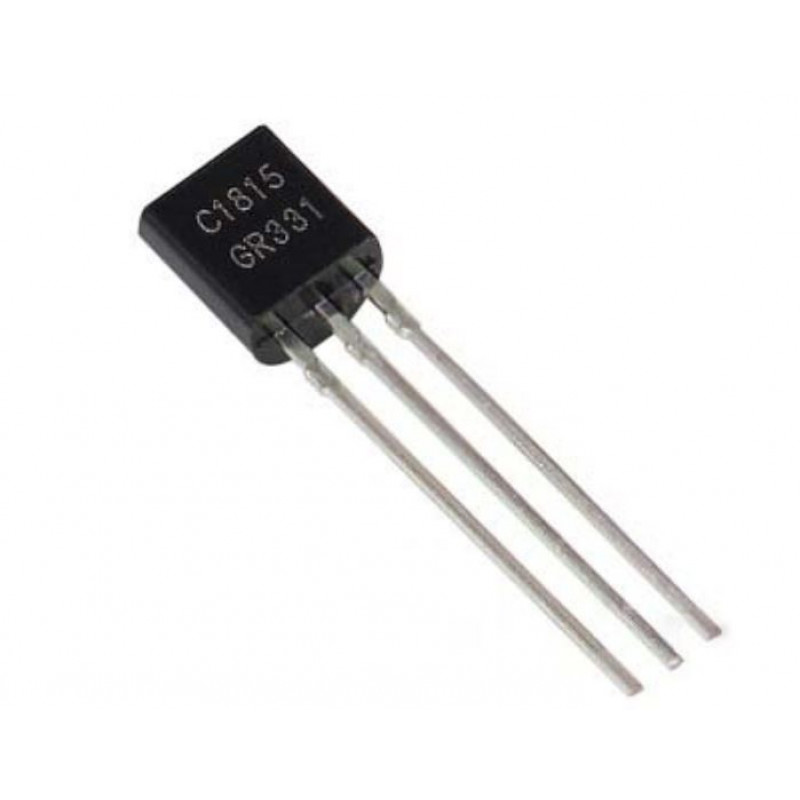

C1815 NPN Audio Frequency Amplifier Transistor 50V 150mA TO-92 Package - 5 Pieces Pack
- Product Code: EC-2347
- Availability: 1646
-
Rs.20.00
- (Excluding 18% GST)
