If you have been looking for a small-size high-performance Antenna then your search ends here. Get the Pagoda 2 Antenna 5.8GHz at the best price.
The Antenna has RP-SMA Male Plug Connector for RC FPV Racing Drone Quadcopter. The Polarization is RHCP(Right-hand Circular Polarization). The Pagoda 2 Antenna is an Omni-directional circularly polarized 5.8GHz FPV antenna with great performance and small in size. The Pagoda 2 Antenna has an excellent omni directional radiation pattern along with a good axial ratio, giving you solid all-around coverage. The Antenna has a smoother radiation pattern and a significantly better axial ratio than most other antennas.This antennas simplified manufacturing process keeps costs low allowing for a great low price for an antenna with high performance.Silicon cases can be easily installed and removed and it is a lightweight protection antenna.
Features:
- Omni directional circularly polarized antenna
- Connector: RP-SMA Male Plug Connector
- Polarization RHCP
- Center frequency: 5.8 GHz
- Bandwidth: 500 MHz (5.55 6.05 GHz)
- Lightweight, Small size
- The new technology metal main rod, almost perfect axial ratio
- Very low standing wave smooth omni directional radiation receiving mode
- Silicon cases can be easily installed and removed, lightweight protection antenna
Package Includes:
1 x Pagoda 2 Antenna with cover
Specifications :-
| Connector | RP-SMA Male Plug Connector |
| Polarization | RHCP(Right Hand Circular Polarization) |
| Center frequency(GHz) | 5.8 GHz |
| Bandwidth(MHz) | 500 MHz (5.55 6.05 GHz) |
| Radiation efficiency | 95% |
| Matching | S11 < -20 dB, VSWR < 1.22 (at center frequency) |
| Axial ratio | < 1.3 |
| Height (mm) | 54.4 |
| Weight (g) | 12 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 317.42 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

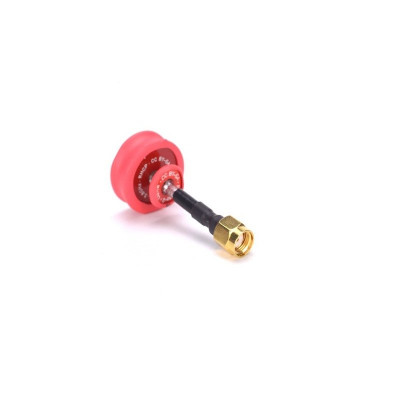

Pagoda 2 Antenna 5.8GHz with cover
- Product Code: EC-6000
- Availability: 23
-
Rs.270.00
- (Excluding 18% GST)
