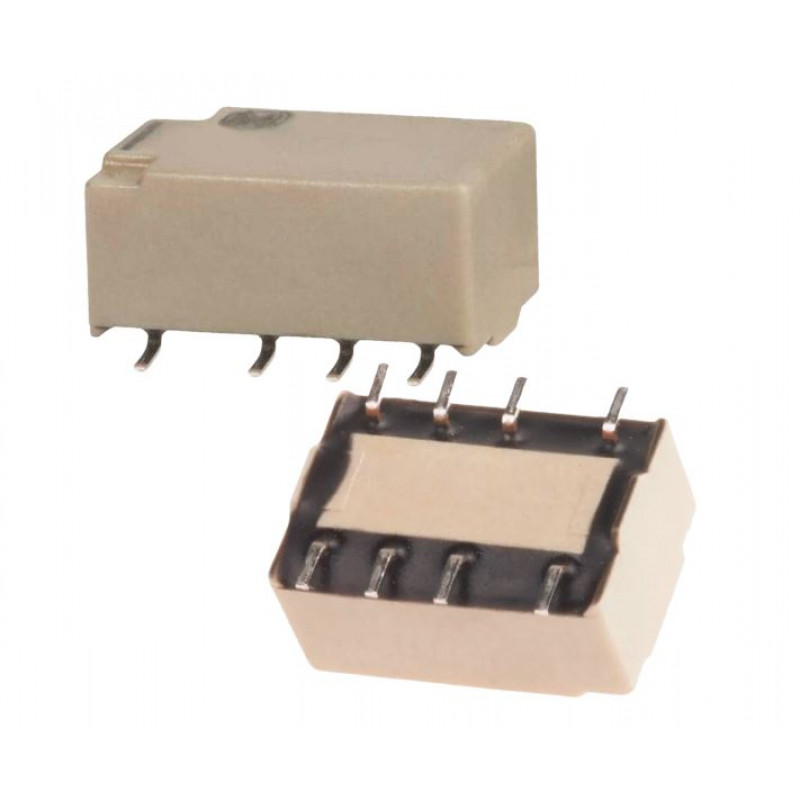

Panasonic 3V 2A DC AGQ0200S03Z 8 Pins DPDT SMD Telecom Relay (2 Form C) Surface Mount. The AGQ series Polarized Relay with compact flat body saves space. AgPd contact is used because of its good sulphide resistance and adopting low-gas moulding material. Coil assembly moulding technology which avoids generating volatile gas from coil. Due to highly efficient magnetic circuit design, leakage flux is reduced and changes in electrical characteristics from components being mounted close-together are minimized.

Features:

• High switching capacity in a compact housing
• Compact flat body saves space
• High sensitivity: 200mW
• Surge withstand between contact and coil:: 1.500V
• High insulation resistance: min. 100MOhm
• Outstanding surge resistance.
• The use of twin crossbar contacts ensures high contact reliability.
• Increased packaging density
• Nominal operating power: 140 mW 7.
• Outstanding vibration and shock resistance
• Sealed construction allows automatic washing.

Specifications:

• Ambient Temperature Range High : 85 °C
• Coil Current : 46.7 mA
• Coil Power : 140 m/W
• Coil Resistance : 64.2 Ω
• Coil Type : Non-Latching
• Coil Voltage (DC) : 3 V
• Contact Current Rating : 2 A
• Contact Arrangement : 2 Form C
• Current Rating : 2 A
• Max Current Rating : 2 A
• Max Operating Temperature : 85 °C
• Max Voltage Rating (AC) : 125 V
• Max Voltage Rating (DC) : 110 V
• Min Operating Temperature : -40 °C
• Number of Contacts : 2
• Operate Time : 4 m/s
• Packaging : Tape & Reel (TR)
• Power Consumption : 140 m/W
• Relay Type : Telecom
• Release Time : 4 m/s
• Switching Current : 2 A
• Termination : Gull Wing
• Throw Configuration : DPDT
• Voltage Rating (AC) : 125 V
• Voltage Rating (DC) : 110 V
• Contact Material : Gold, Silver
• Contact Plating : Copper, Silver, Tin
• Mount : Surface Mount
• Number of Pins : 8
• Weight : 5 g
• Depth : 7.2 mm
• Height : 5.4 mm
• Length : 10.6 mm
• Lead Free : Lead Free
• Radiation Hardening :No
• RoHS Compliant

Package Includes:

1 x Panasonic 3V 2A DC AGQ0200S03Z 8 Pins DPDT SMD Telecom Relay
