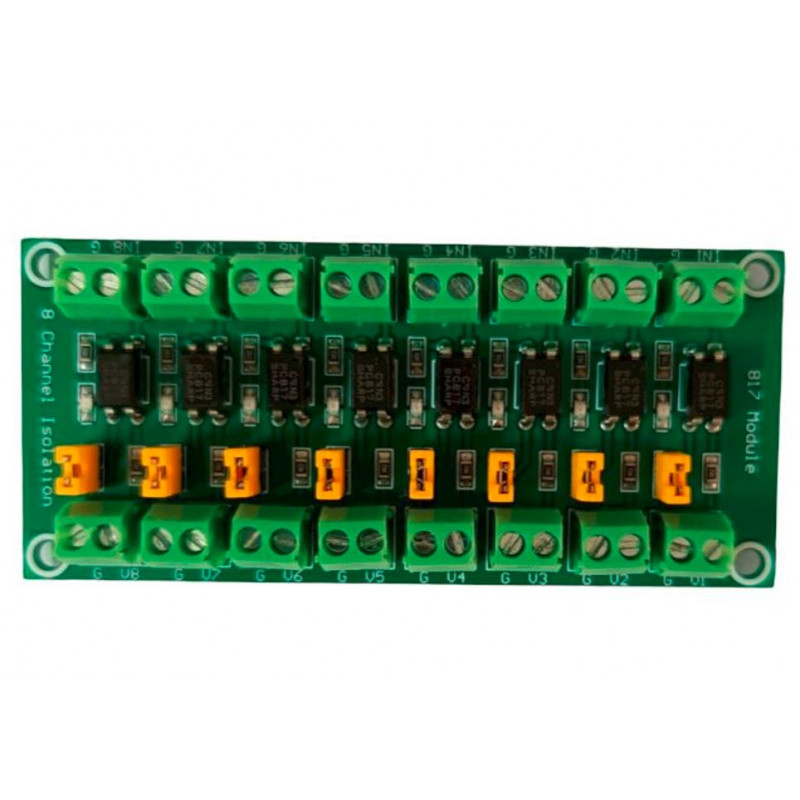

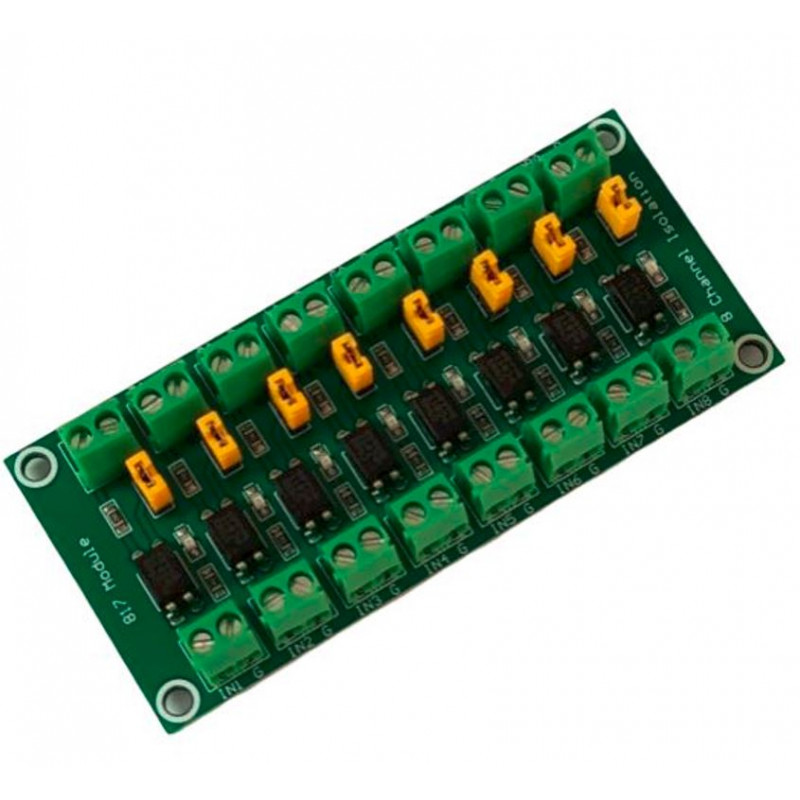

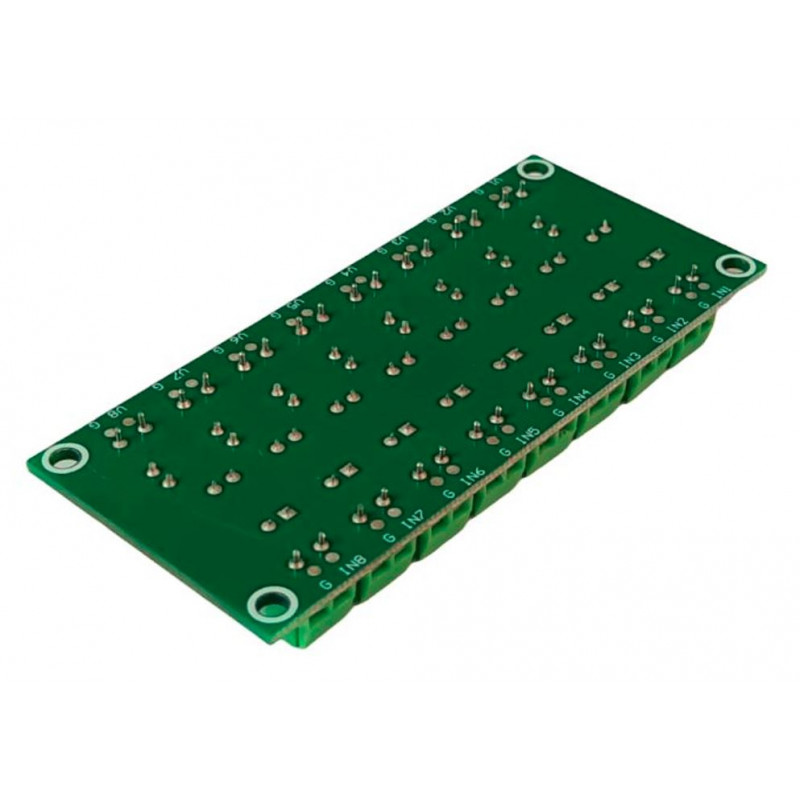

This is a PC817 8 Channel Optocoupler Isolation Board. The onboard with 8-Channel 817 are independent, so they can achieve different voltage control at the same time. Using 8 -way 817 optocouplers, to achieve the control signal and the control signal isolation, you can directly use the microcontroller or other devices IO port to achieve voltage isolation control, you can achieve a small voltage control, the control side can be an external transistor MOS tube or different voltage levels Of the device interface.
Features:-
- Driving Port Signal Voltage: 3.6-24V
- Output Port Voltage Port: 3.6-30V
- Output Can Be Switched From Pull-Up or Pull-Down With Jumpers.
Applications:-
- I/O isolation for MCUs (Micro Controller Units)
- Noise Suppression in Switching Circuits
- Signal Transmission Between Circuits of Different Potentials and Impedances
Specifications:-
- No. of Channels : 8
- Input Voltage (V) : 3.6-24DC
- Output Voltage (VDC) : 3.6-30
- Length (mm) : 84
- Width (mm) : 38
- Height (mm) : 10
- Weight (gm) : 25
Package Includes:-
1 x PC817 8 Channel Optocoupler Isolation Module
Brand/Manufacturer | |
Country Of Origin | |
Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
MRP | Rs. 470.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
PC817 8 Channel Optocoupler Isolation Module
- Product Code: EC-12025
- Availability: 154
-
Rs.399.00
- (Excluding 18% GST)
