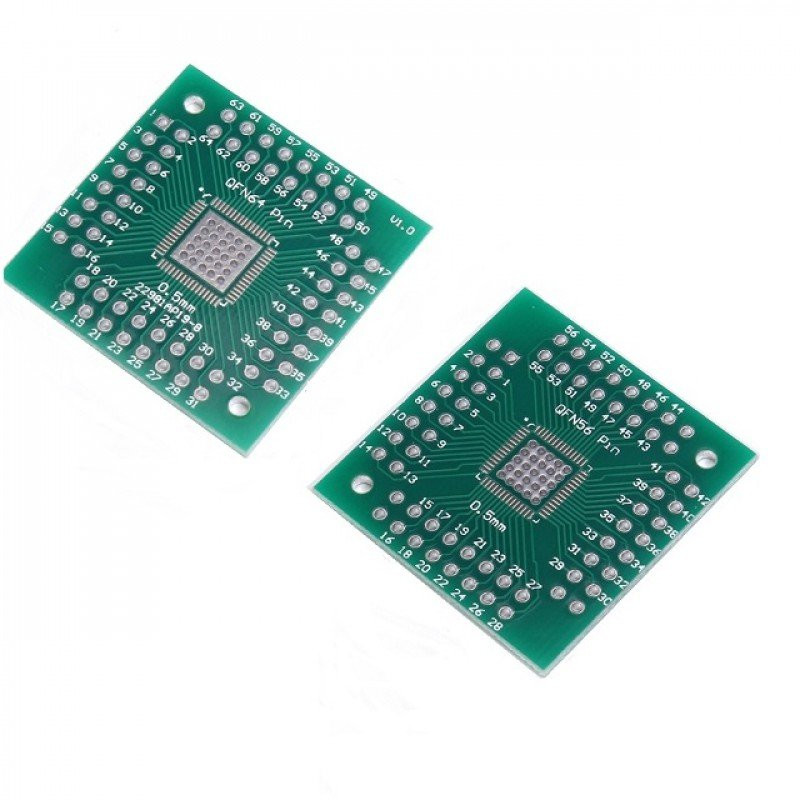

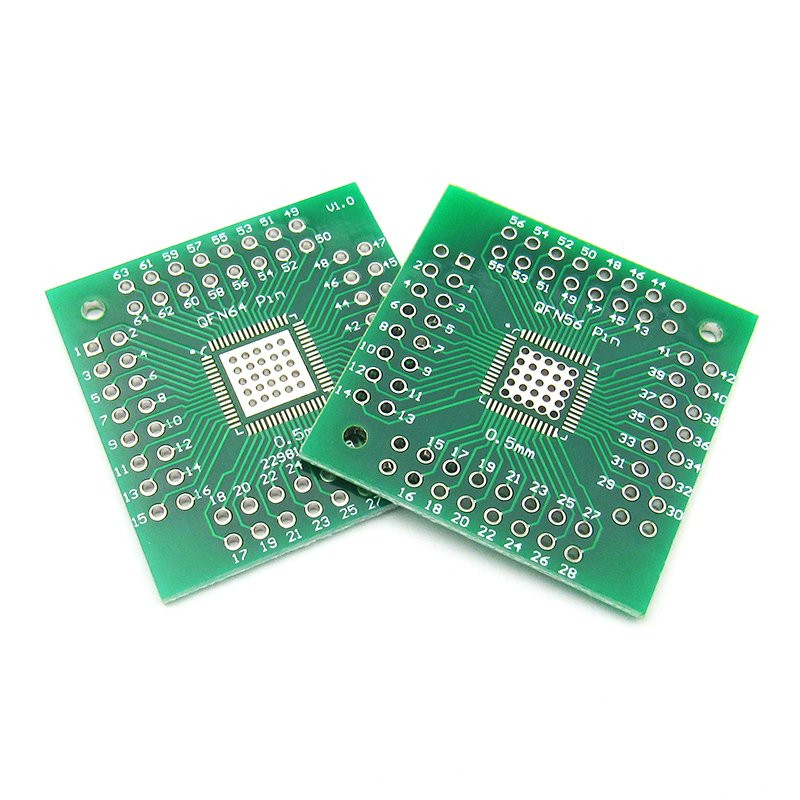

This is a QFN 56 64 SMD TURN TO DIP PCB Adapter, The SMD adapter/reduction for SMF components QFN56 or QFN64. It is a Double-sided through-line printed circuit board with a non-stick mask and printing. On one side to brazing the QFN56 square circuit, on the other side of the square circuit QFN64.
Specifications:
- Dimensions: 33.14 x 33.14 mm.
- Pitch Patch: 0.5 mm.
Package Includes:
1 x QFN 56 64 SMD TURN TO DIP PCB Adapter.
Specifications :-
| Model | QFN 56/64 Pin |
| Length (mm) | 33.5 |
| Width (mm) | 33.5 |
| Height (mm) | 1.7 |
| Weight (gm) | 3 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 46.02 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
QFN 56 64 SMD TURN TO DIP PCB Adapter
- Product Code: EC-6291
- Availability: 326
-
Rs.39.00
- (Excluding 18% GST)
