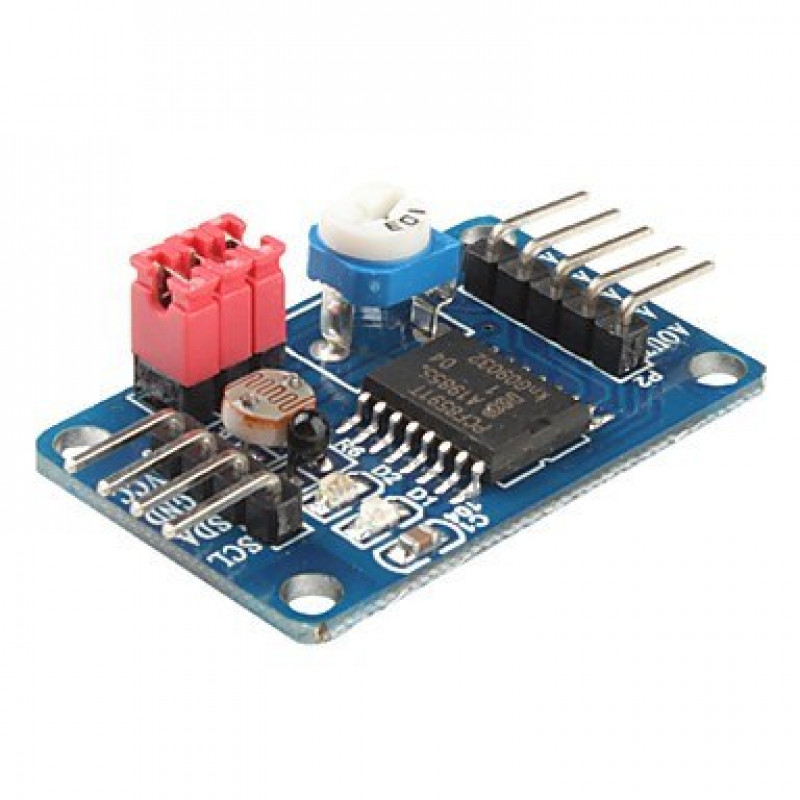

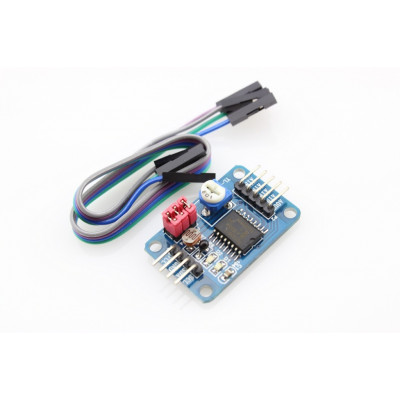

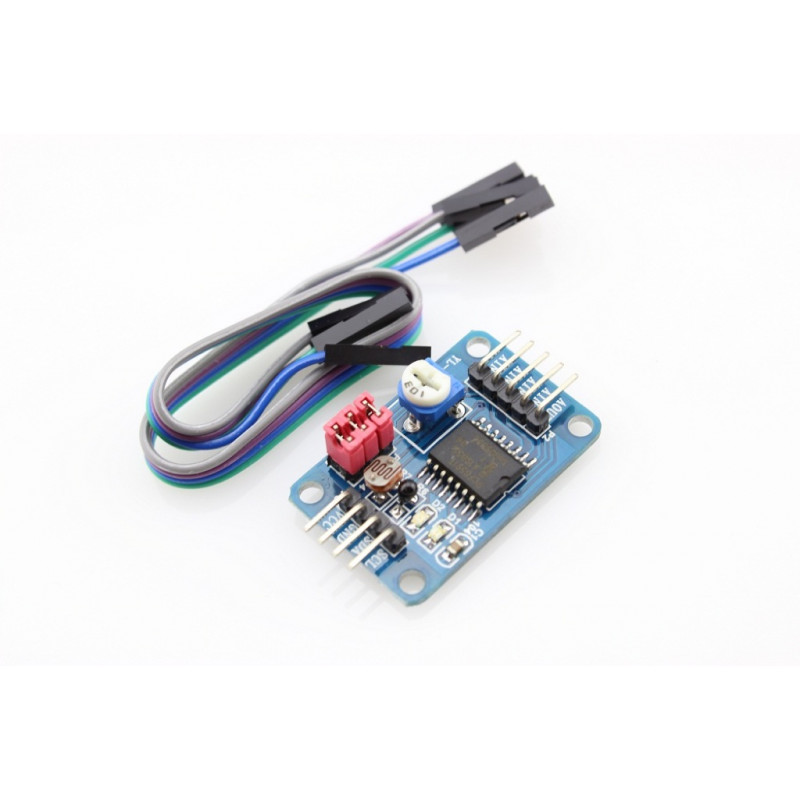

    This is a breakout board/Prototype Board for PCF8591 IC. The PCF8591 is a single-chip, single‑supply low‑power 8‑bit CMOS data acquisition device with four analog inputs, one analog output, and a serial I²C‑bus interface. Three address pins A0, A1, and A2 are used for programming the hardware address, allowing the use of up to eight devices connected to the I²C‑bus without additional hardware. Address, control, and data to and from the device are transferred serially via the two-line bidirectional I²C‑bus.
      The functions of the device include analog input multiplexing, on-chip track and hold function, 8-bit analog‑to‑digital conversion, and an 8‑bit digital‑to‑analog conversion. The maximum conversion rate is given by the maximum speed of the I²C-bus.


      PCF8591 Module Features:-

      • The module supports external voltage input of the 4-way acquisition (voltage input range of 0-5v)
      • The module integrated photoresistor by AD collection precise value of the ambient light intensity
      • Module integrated thermistor by the precise value of the ambient temperature of the AD acquisition
      • Module integrated 1 channel 0-5V voltage input acquisition (the blue potentiometer to adjust the input voltage)
      • Modules with power indicator (for the module power supply indicator lights)
      • Modules with DA output indicator, when the module DA output interface voltage reaches a certain value, will be lit panel the DA output indicator, the higher the voltage, the more obvious indicator brightness
      • Module PCB size: 3.6cm x 2.3cm
      • A standard double panel, thickness 1.6mm, nice layout, surrounded by a through-hole, aperture: 3mm, convenient fixed.

      PCF8591 IC Features:-

      • Single power supply
      • A PCF8591 operating voltage range of 2.5V-6V
      • Low standby current
      • Via I2C bus serial input/output
      • PCF8591 by 3 hardware address pins addressing
      • PCF8591 I2C bus speed sampling rate decided
      • 4 analog inputs programmable single-ended or differential input
      • Automatic incremental channel selection
      • PCF8591 analog voltage range from VSS to VDD
      • PCF8591 built-in track-and-hold circuit
      • 8-bit successive approximation A / D converter
      • 1 analog output DAC gain

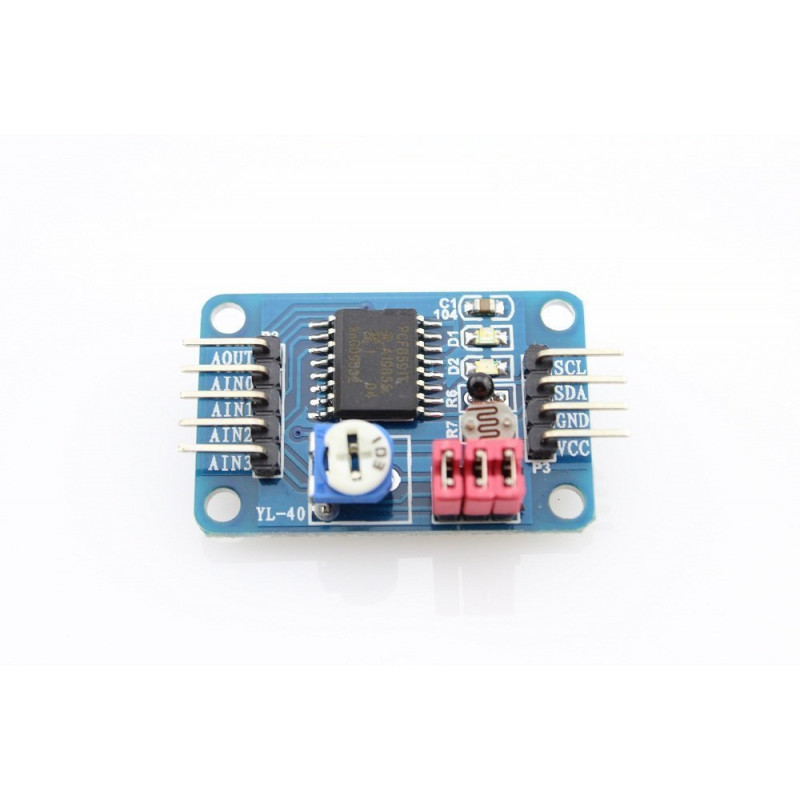

      Module interface specification:-

      The Left:-
      • AOUT chip DA output interface
      • AINO chip analog input interface 0
      • AIN1 chip analog input interface 1
      • AIN2 chip analog input interface 2
      • AIN3 chip analog input interface 3

      The Right:-
      • SCL – IIC clock interface connected to microcontroller IO port
      • SDA – IIC digital interface connected to microcontroller IO port
      • GND – connected to ground
      • VCC – connected to 3.3v-5v

      Four red jumper-cap instruction:-
      • P4 – connected to P4 shorting cap, select thermistor access circuit
      • P5 – connect P5 shorting cap, select photoresistor access circuit
      • P6 – connected to P6 shorting cap, select 0-5V adjustable voltage access circuit
      Brand/Manufacturer Generic
      Country Of Origin China
      Packer / Importer Address Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
      MRP Rs. 152.22 (Inclusive of all Taxes)
