This is a PCT-225D 0.5- 4 mm2 5 Pole both side Wire Connector Terminal Block with Spring Lock Lever for Cable Connection and it has. PCT Spring Lever Connector package contains a compact locking wire connector by a spring lever, which is used for Single -strand hardwire with 0.5 mm to 4 mm2 area or soft wire with 0.5mm to 4.0 mm2 area. This connector can tolerate the rated voltage up to 400V with an electric current peak of 32A. The Strip length of the Connector is about 11-12 mm.
Features:
- Fast and easy to use
- The right terminal block and connector for every application
- Minimal space requirements enable high wiring density
- Clearly organized wiring in control cabinets and junction boxes
- Maintenance-free installation
- Permanent, secure connections
Specifications:
- Rated voltage: 400V
- Rated current: 32A
- Number of poles: 5
- Recording: DIN rail
- Wire section : 0.5 -4mm2
- Number of clamps: 10
Package Includes:
1 x PCT-225D Guide Rail Type Quick Connection Terminal
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 80.24 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

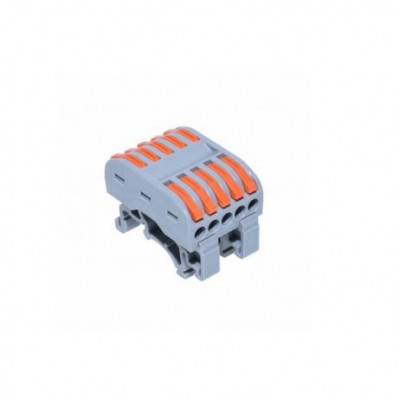

PCT-225D Guide Rail Type Quick Connection Terminal
- Product Code: EC-7989
- Availability: 16
-
Rs.68.00
- (Excluding 18% GST)
