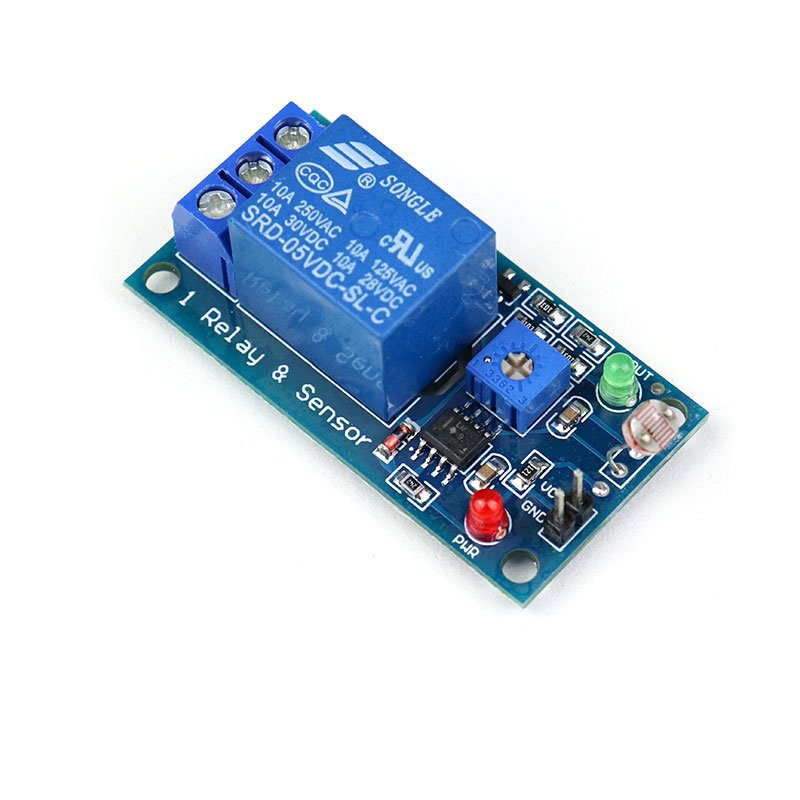

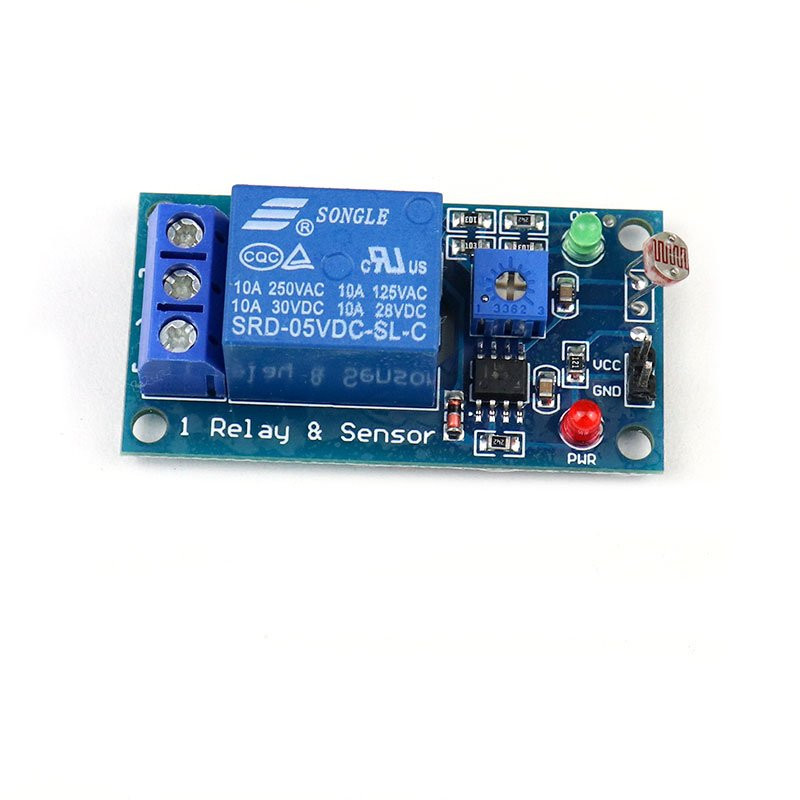

It is a Photosensitive Resistance Sensor Relay Module. When it is brighter, the module relay pulls in. When the threshold is dark, the relay is disconnected. The threshold can be set with the help of the potentiometer, which is mounted on the module itself.
Package Includes:
1 x Photosensitive Resistance Sensor Relay Module.
Specifications :-
| Trigger Current (mA) | 20 |
| Trigger Voltage (VDC) | 5 |
| Switching Voltage (VAC) | 250@10A |
| Switching Voltage (VDC) | 30@10A |
| Opt. Relative Humidity(RH) | 20% 85% |
| Operating Temperature (C) | -40 to 85 |
| Storage condition () | 65 to 125 |
| Length (mm) | 50 |
| Width (mm) | 26 |
| Height (mm) | 18 |
| Weight (gm) | 15 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 364.62 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Photosensitive Resistance Sensor Relay Module
- Product Code: EC-6622
- Availability: 6
-
Rs.126.00
- (Excluding 18% GST)
