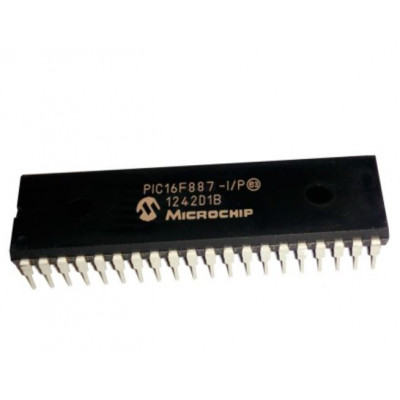

The PIC16F887 is a 8/40/44-Pin Flash-Based, 8-Bit CMOS Microcontroller. The following are the features:-

• 24/35 MO Pins With Individual Direction Control

- High current source/sink for direct LED drive

- Interrupt-on-Change pin

- Individually programmable weak pull-ups

- Ultra Low-power Wake-up (LJLPWU)

• Analog Comparator Module With:

- TWO analog comparators

- Programmable on-chip voltage reference (CVREF) module (% of VDD)

- Fixed Voltage Reference (0.6V)

- Comparator inputs and outputs external accessible

- SR Latch mode

- External Timerl Gate (count enable)

• AID Converter: ID-bit resolution and 11/14 channels

• TimerO 8-bit Timer/Counter With 8-bit rammable Prescaler

Specification:-

Parameter	Value
Program Memory Type	Flash
Program Memory Size (KB)	14
CPU Speed (MIPS/DMIPS)	5
SRAM (B)	368
Temperature Range (°C)	-40 to 125
Operating Voltage Range (V)	2 to 5.5
Pin Count	40
Timers	2 x 8-bit, 1 x 16-bit
ADC Input	14 ch, 10-bit
Capture/Compare/PWM Peripherals	2 Input Capture, 1 CCP
Digital Communication Peripherals	1-UART, 1-SPI, 1-I2C1-MSSP(SPI/I2C)
Data EEPROM/HEF (bytes)	256

Related Document:-


Brand/Manufacturer	Generic
Country Of Origin	China
Packer / Importer Address	Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India.
MRP	Rs. 218.3 (Inclusive of all Taxes)

* Product Images are shown for illustrative purposes only and may differ from actual product.

PIC16F887 Microcontroller
