The buzzer is an electronic echo sounder with an integration structure. Using DC power is widely used on computers, printers, photocopiers, alarms, electronic toys, automotive electronic equipment, telephones, timers, and other electronic products.
Applications:-
- Security and safety products
- Portable devices
- Medical equipment
- Remote monitoring systems
- Timers
- Household appliances
- Measurement and flow instruments
- Weighing machines
- User input recognition
Features and Specifications:-
- Buzzer Type : Piezoelectric
- Rated Voltage : 12V DC
- Operating Voltage : 5~12V
- Current Rating : 20mA
- Sound Pressure Level : 95dB
- Frequency : 3900±500Hz
- Drive Method : Drive Circuit
- Storage Temp Range : -30~60°C
- Operating Temp Range :-20~50°C
Package Includes:-
1 x Piezo Buzzer
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 29.5 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

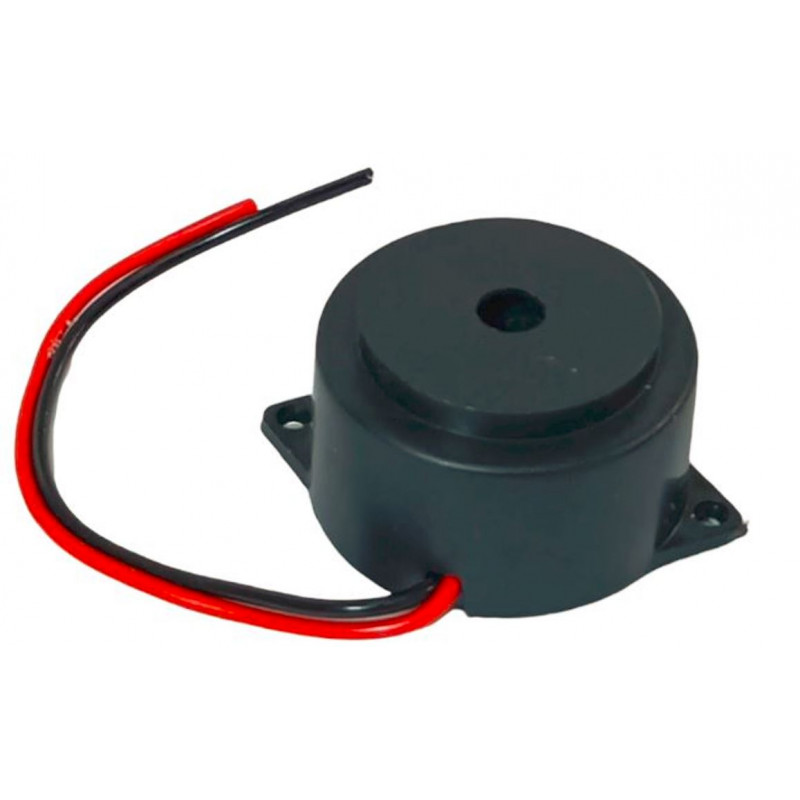

Piezo Buzzer
- Product Code: EC-0647
- Availability: 1377
-
Rs.25.00
- (Excluding 18% GST)
