Important Things to be Watch While Powering The Encoder:
The jumper JP1 has been included to provide some flexibility in the way you power the receiver, servos and PPM Encoder. Often the power for the receiver, servos and PPM Encoder will come from the autopilot board.
In this case, JP1 should be in place (shorted).
On another way, if the receiver or any servos directly connected to the separate/additional power source and the autopilots +5V is also connected to the PPM Encoder via the PPM connector THEN YOU MUST REMOVE jumper JP1. This will isolate the autopilot power supply from the separate receiver power supply.
Failure to remove JP1 will likely damage the autopilots +5v switching regulator!
Important Note: The firmware comes pre-configured to read 8 Channels. In case you would like to change the settings of the PPM encoder to invert the PPM signal and change the fail-safe pre-defined values you will need an AVR ISP programmer in order to reprogram it.
Features :
- Support the input channels: 8.
- Output: PPM SUM 1 / MUX 1.
- Dimensions: 28 x 19 x 5 mm.
- Weight: 12 gm. (containing all the input and output wires).
Package Includes :

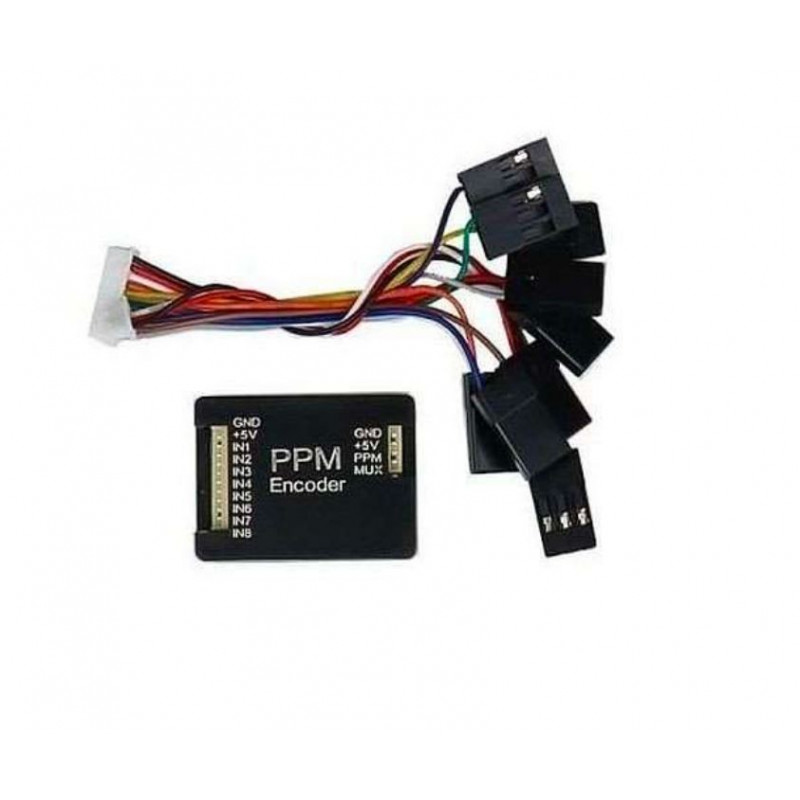

1 x Pixhawk PPM Encoder Module.
1 x JR plug 10P input end of the cable.
1x JR plug 4P output end of the cable.
Specifications :-
| Input Channel | 8 PWM channel |
| Output channel | 1 PPM channel |
| PWM signal cable length (mm) | 60 |
| PPM signal cable length (mm) | 90 |
| PPM Encoder dimensions | As per below |
| Length (mm) | 31.60 |
| Width (mm) | 23 |
| Height (mm) | 8 |
| Weight (gm) | 10 |
| Brand/Manufacturer | Generic |
| Country Of Origin | China |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 588.82 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.

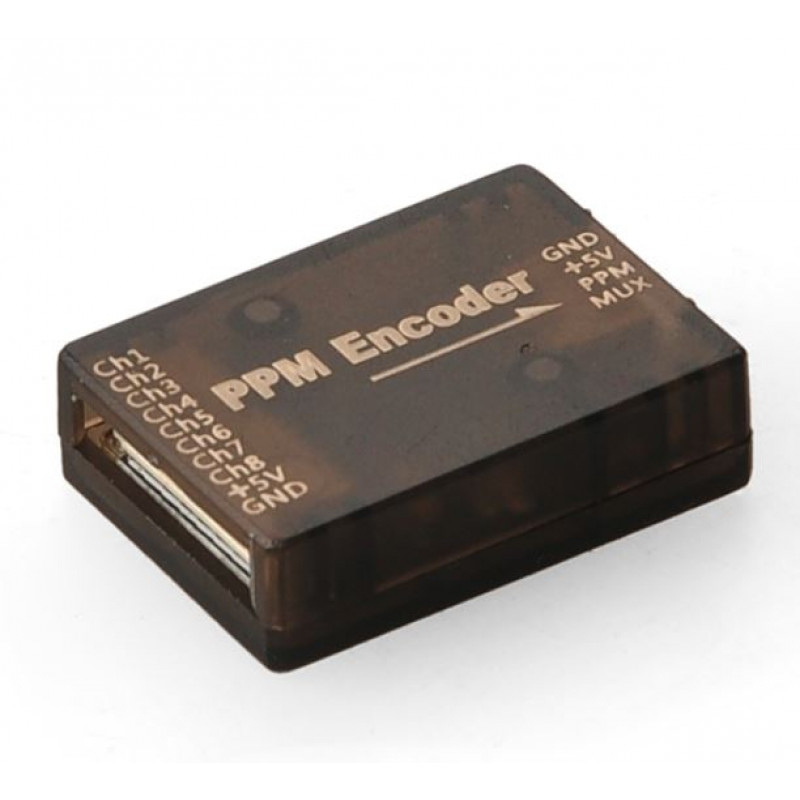

Pixhawk PPM Encoder Module
- Product Code: EC-5885
- Availability: 14
-
Rs.599.00
- (Excluding 18% GST)
