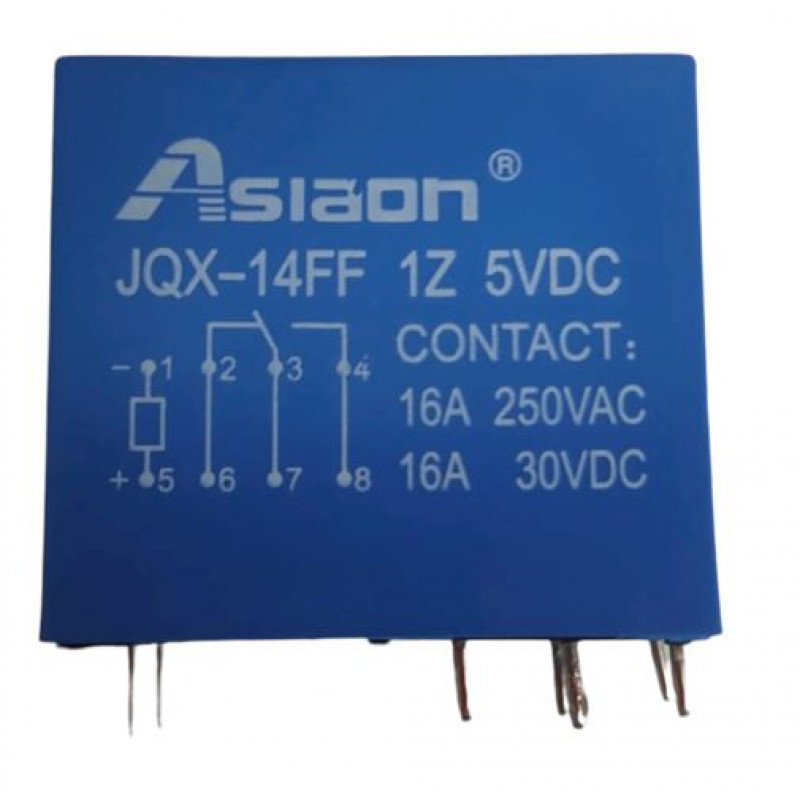

Asiaon 5V 16A DC JQX-14FF-1Z-5V 8-Pin SPDT PCB Mount Power Relay
Features:
- 10A switching capabilities
- SPST-NO and SPDT configurations
- 5KV dielectric between coil to contacts
Specifications:
- Type : JQX-14FF-1Z
- Switching Current (A, Res. load) : 16A
- Contact arrangement : 1 Form C
- Contact material : AgCdO
- Construction : Sealed & Unsealed
- Coil voltage : 5
- Coil power : 0.55W
- Unit Weight : 18gm
Package Includes:
1 x Asiaon 5V 16A DC JQX-14FF-1Z-5V 8-Pin SPDT Power Relay
* Product Images are shown for illustrative purposes only and may differ from actual product.
Asiaon 5V 16A DC JQX-14FF-1Z-5V 8-Pin SPDT Power PCB Mount Relay
- Product Code: EC-10412
- Availability: 40
-
Rs.85.00
- (Excluding 18% GST)
