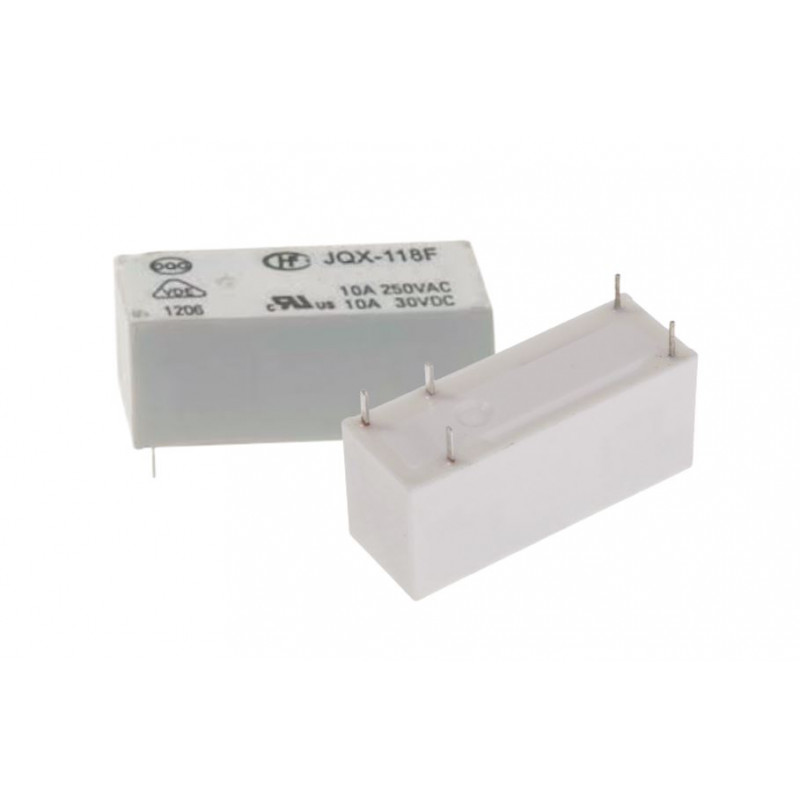

Hongfa 12V 10A DC JQX118F/012-1ZS1G Series 5 Pins SPDT High Power Relay offers low height, 8A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.
Features:
- 10A switching capability
- 5kV dielectric strength (between coil and contacts)
- Low height: 12.5 mm
- Creepage distance >8mm
- Meeting VDE 0700, 0631 reinforce insulation
- Product in accordance to IEC 60335-1 available
- 1 pole configurations available
- UL insulation system: Class F
- Plastic sealed and flux proofed types available
Specifications:
- Manufacturer: HONGFA RELAY
- Contact Arrangement: 1 Form C
- Type of relay: electromagnetic
- Contacts configuration: SPDT
- Rated coil voltage: 12V DC
- AC contacts rating @R: 10A / 250V AC
(at resistive load)
- DC contacts rating @R: 10A / 30V DC
(at resistive load)
- Contact current max: 10A
- Switched voltage: max. 125V DC, max. 440V AC
- Relay variant: miniature
- Mounting: PCB
- Coil resistance: 620Ω
- Coil voltage min: 8.4V DC
- Coil voltage max: 18V DC
- Operate time: 10ms
- Body dimensions: 28.5x12.5x10.1mm
- Release time: 5ms
- Coil power consumption: 220mW
- Operating temperature: -40...85°C
- Contact resistance: 100mΩ
- Contact material: AgNi+ Au Plated
- Terminal pitch: 3.2mm
- Size: 28.5x10.1x12.5mm
- Weight: 8gm
Package Includes:
1 x Hongfa 12V 10A DC JQX118F/012-1ZS1G Series 5 Pins SPDT High Power Relay
