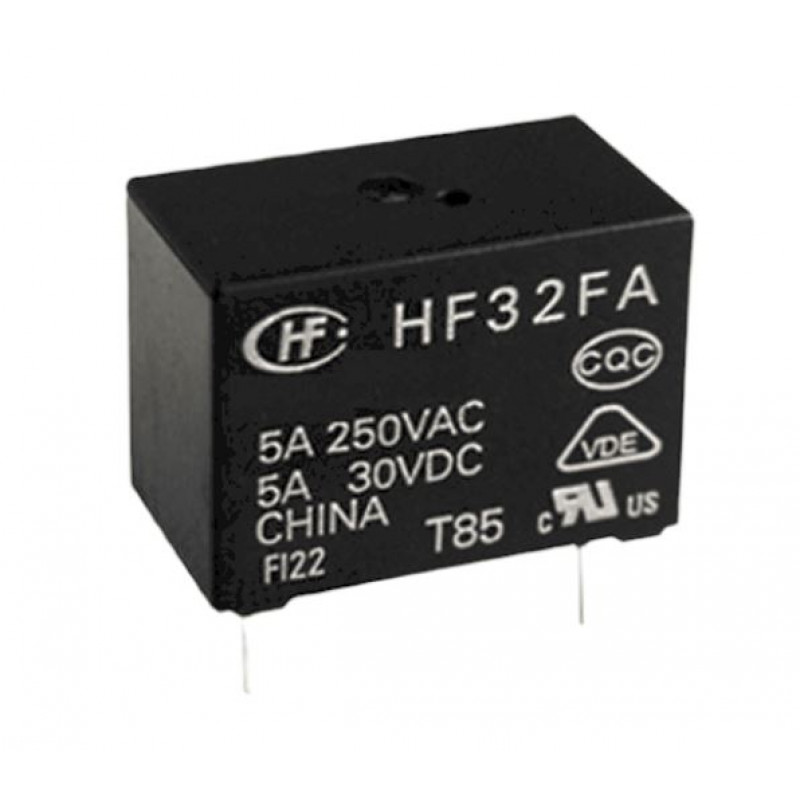

Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay offers low height, 5A switching capability, 5kV dielectric strength (between coil and contacts) and environmentally friendly product (RoHS compliant) and meets VDE 0700, 0631 reinforce insulation.
Features:
- 5A switching capability
- Creepage/clearance distance>8mm
- 5kV dielectric strength (between coil and contacts)
- 1 Form A meets VDE 0700, 0631 reinforce insulation
- Product in accordance to IEC 60335-1 available
- Environment friendly product(RoHS compliant)
Specifications:
- Manufacturer : HONGFA RELAY
- Type of relay : Electromagnetic
- Contacts configuration : SPST-NO
- Rated coil voltage : 18V DC
- AC contacts rating @R : 5A / 250V AC
(at resistive load)
- Contact current max : 5A
- Switched voltage : max. 250V AC
- Relay variant : Subminiature
- Mounting : PCB
- Coil resistance : 620Ω
- Coil voltage min : 9V DC
- Coil voltage max : 18V DC
- Operate time : 8 m/s
- Body dimensions : 17.6x10.1x12.3mm
- Release time : 4ms
- Coil power consumption : 230mW
- Operating temperature : -40 to +85°C
- Contact resistance : 70mΩ
- Contact material : AgSnO2
- Weight : 4.5 gm
Package Includes :
1 x Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay
| Brand/Manufacturer | |
| Country Of Origin | |
| Packer / Importer Address | Constflick Technologies Limited, Building No 13 and 14, 3rd Floor, 2nd Main, Siddaiah Road, Bangalore, Karnataka - 560027 India. |
| MRP | Rs. 61.36 (Inclusive of all Taxes) |
* Product Images are shown for illustrative purposes only and may differ from actual product.
Hongfa 18V 5A DC HF32FA/018-HSL 4 Pin SPST Miniature Power Relay
- Product Code: EC-10300
- Availability: 612
-
Rs.85.00
- (Excluding 18% GST)
